INTERMATIC
MFR #WP5100BL
UPC #78275145665
Weatherproof Cover – Single Gang, Black, Model WP5100BL
$19.56
/
In Stock
Shipping within Ontario only. Rates calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
ONTARIO
Ontario-wide Delivery
Free Shipping Over $150
Free Pickup Available
Returns on Eligible Items
In-stock items ship next business day. Pickup available in Mississauga & Scarborough. Freight exclusions apply.
Weatherproof Cover – Single Gang, Black, Model WP5100BL
$19.56
/

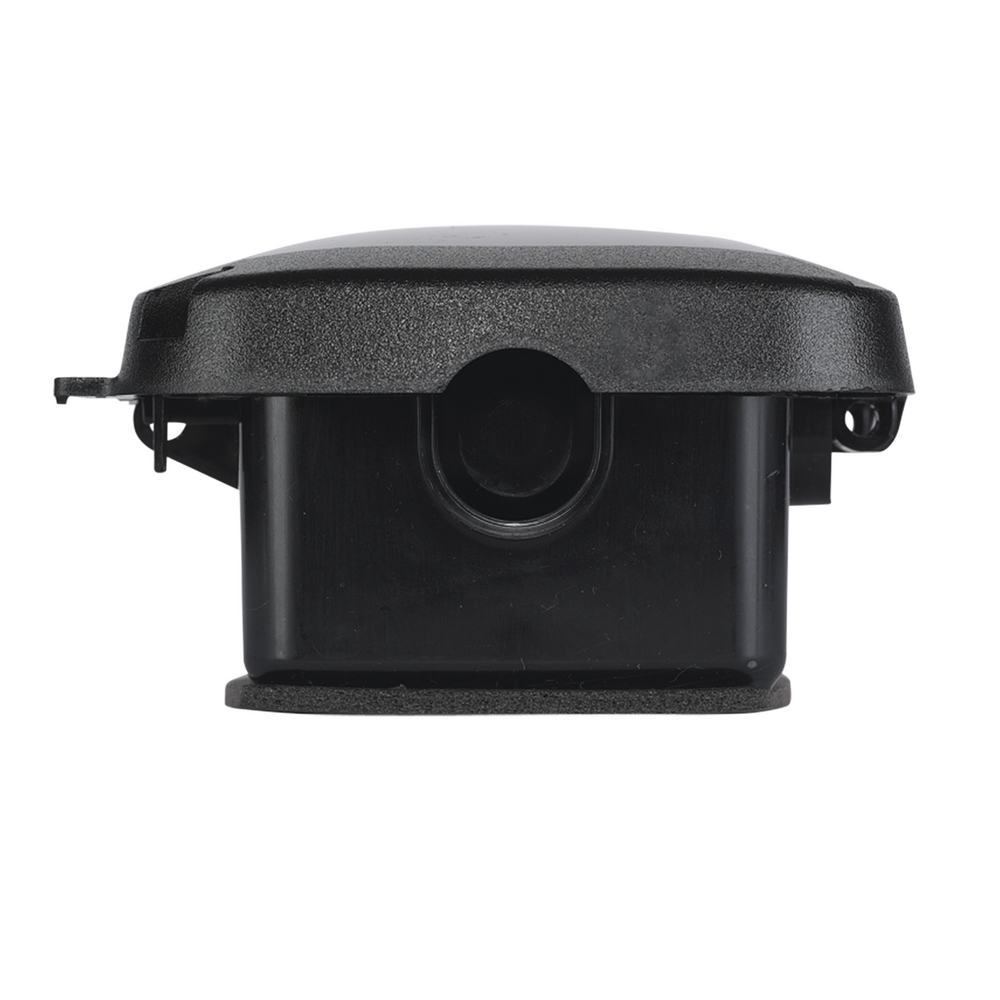

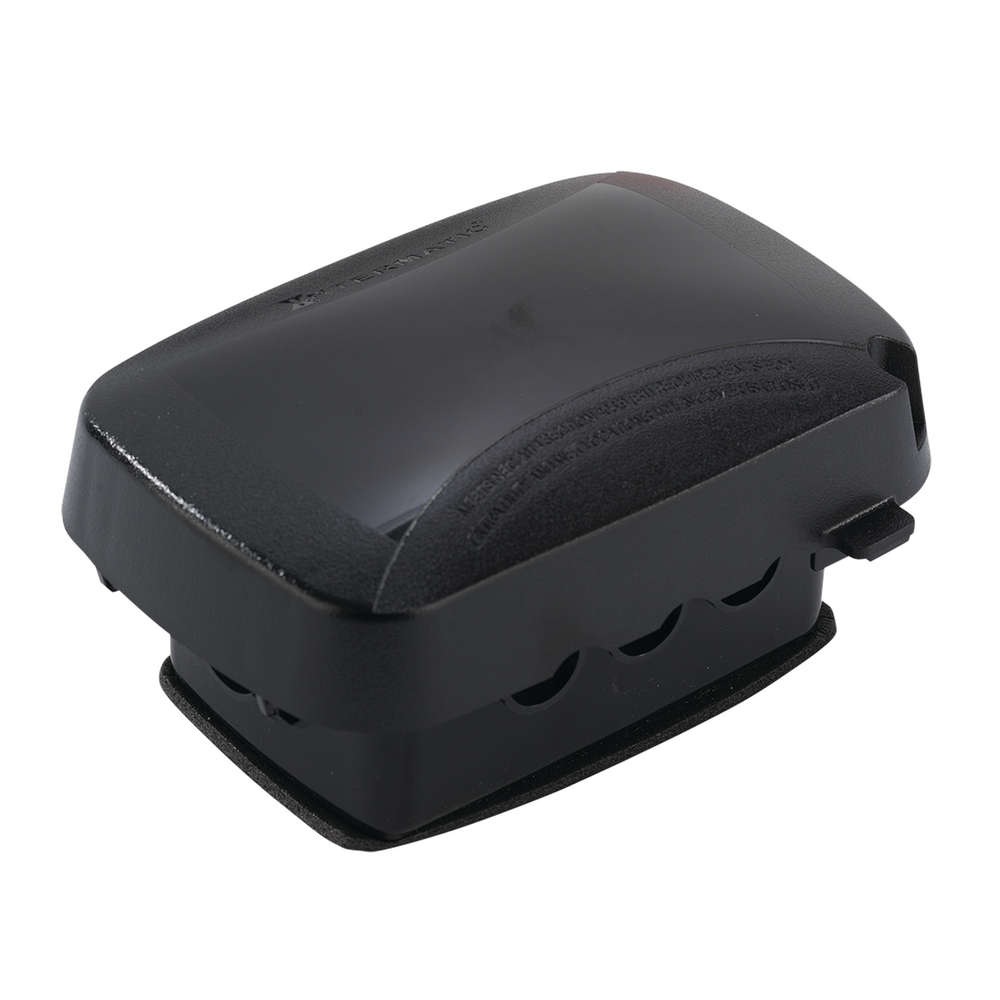

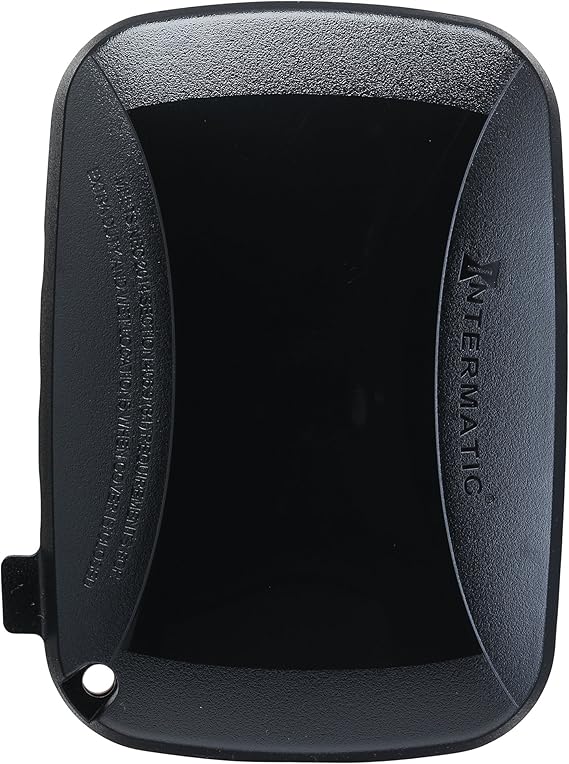

The INTERMATIC WP5100BL is a single-gang weatherproof in-use cover built for the demands of professional electricians and contractors working in exposed outdoor environments. Whether you're wiring exterior receptacles on a commercial build, a residential renovation, or a job site temporary power setup, this cover delivers the protection and compliance you need. Its heavy-duty UV-stabilised polycarbonate construction, lockable hasp, and impact-rated design mean it holds up through Canadian winters and summer UV exposure alike — keeping your installations safe, code-compliant, and inspection-ready.
Specifications
| Model | WP5100BL |
| Colour | Black |
| Configuration | Single Gang |
| Material | Heavy-duty UV stabilised polycarbonate (cover, mounting base, and inserts) |
| Gasket | 1/8" (3 mm) thick neoprene with slits for mounting screws |
| Lockable Hasp | Accepts up to 1/4" (6 mm) diameter shank padlock |
| Impact Rating | 12 lbf. impact test — cover remains intact |
| Hinge Pin Rating | Exceeds 40 lbf. hinge hang/stress test |
| Cold Impact Rating | -60°F (-51°C) |
| Enclosure Rating | UL Certified Type 3R outdoor enclosure |
| NEC Compliance | 2020 NEC Article 406.9(B)(1) — wet locations and extra-duty applications |
| CEC Compliance | CEC Article 26-702 |
| Warranty | 1-year limited |
