In-Use Weatherproof Cover – Double Gang, Clear, Model WP5220C
$21.02
/
In Stock
Shipping calculated at checkout.
INTERMATIC
MFR #WP5220C
UPC #78275145337
In-Use Weatherproof Cover – Double Gang, Clear, Model WP5220C
$21.02
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories

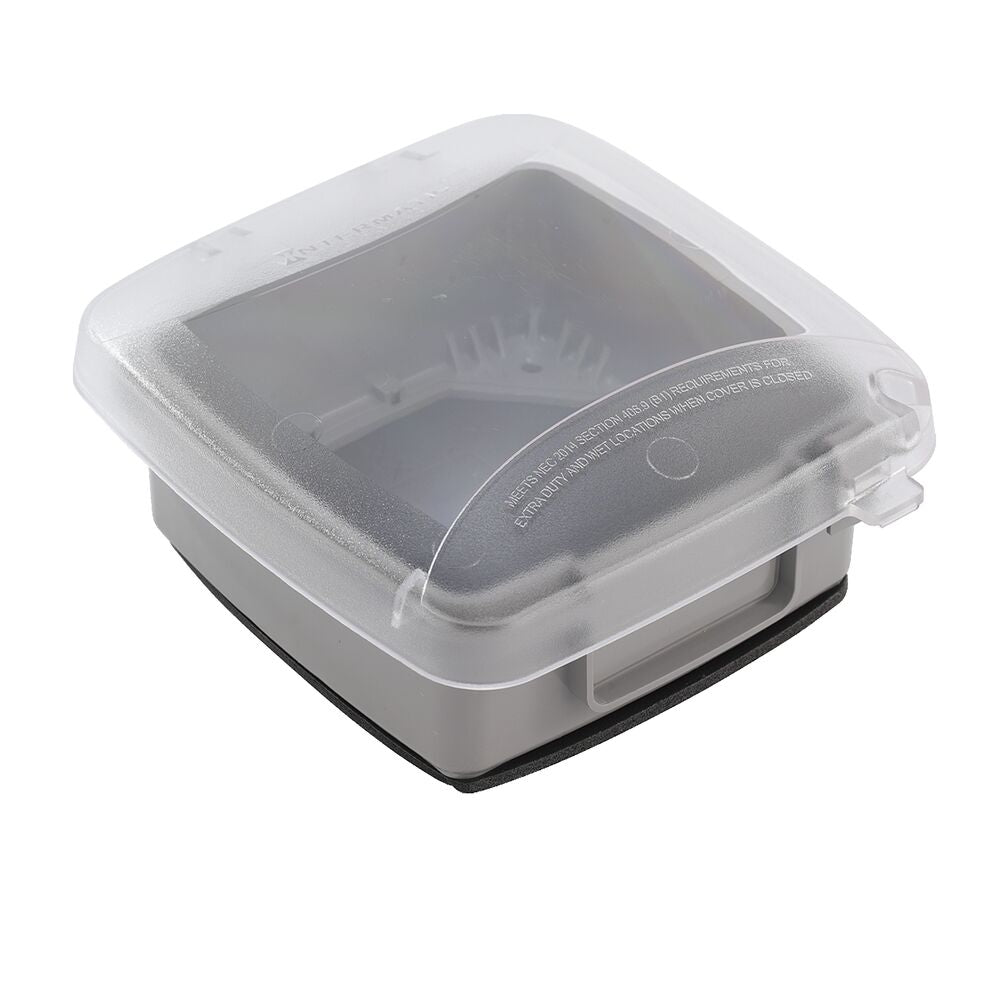

The Intermatic WP5220C is a double-gang, extra-duty rated, while-in-use weatherproof cover made from UV stabilised polycarbonate, designed to protect outdoor outlets during active cord use in Type 3R enclosure applications, including residential and commercial installations where cords remain plugged in.
- Double-gang, extra-duty rated construction
- UV stabilised polycarbonate — clear cover for outlet visibility
- Accepts up to 1x10 AWG or 2x12 AWG cords
Specifications
| Box Type | Double |
| Extra-Duty Rated | Yes |
| Colour | Clear, Gray |
| Hinge Direction | Vertical |
| Accepted Cord Size (Max) | 1x10 AWG, 2x12 AWG |
| Cover Gasket | 3 mm |
| Electrical Box Shape | Square |
| Enclosure Type | Outdoor Type 3R Plastic |
| Reinforced Hinge Pin | Yes |

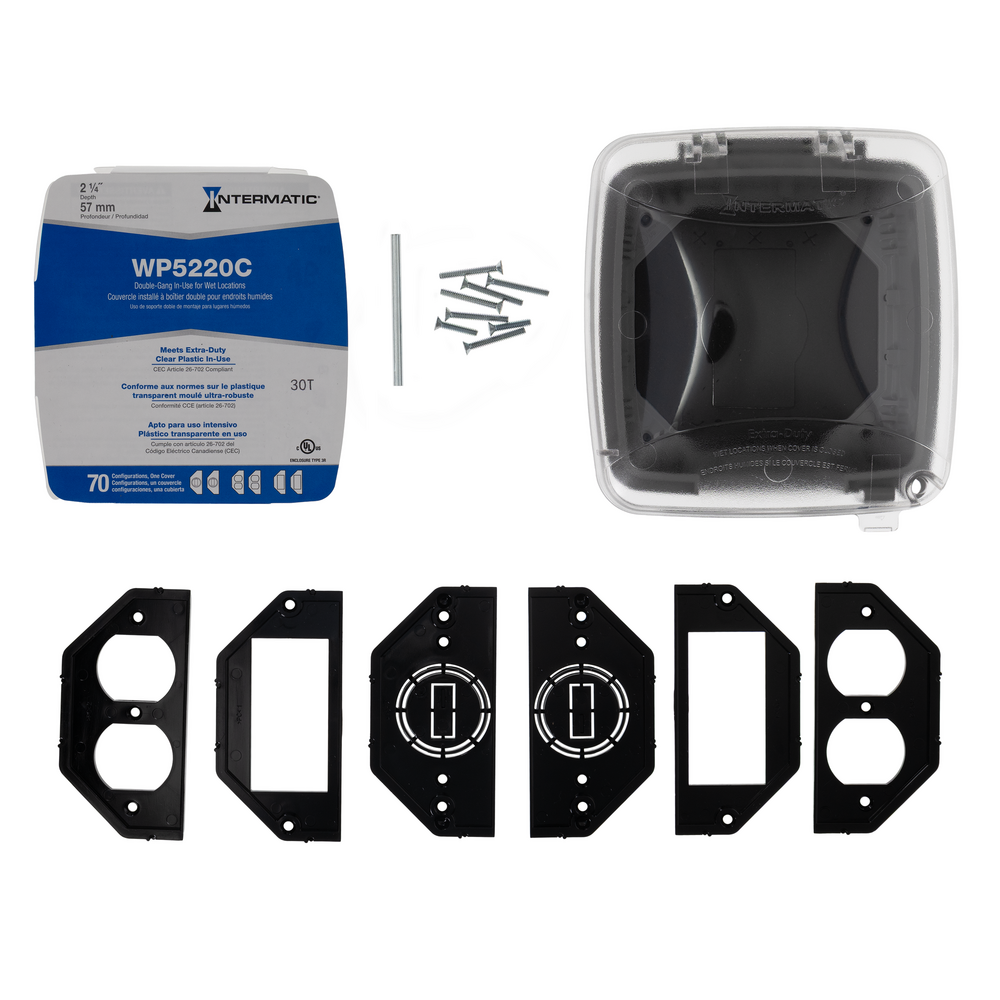

| Insert Types Included | WP217 |
| Material | UV Stabilised Polycarbonate |
| Number of Gangs | Double |
| UL Certification | cULus |
| Weatherproof Cover Material | UV Stabilised Plastic |
| Lockable Hasp Max Diameter | 1/4 in (6 mm) |
| Product Depth | 2.25 in (57 mm) |
| Product Height | 6 in (154 mm) |
| Product Width | 6.625 in |
| Country of Origin | Mexico |
| Warranty | 1-Year Limited |
