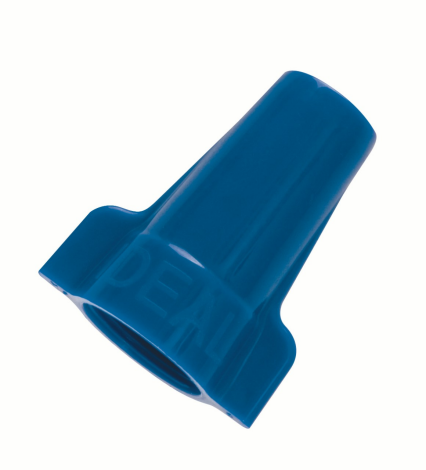

Wing-Nut Connector, Blue, 50-Pack, Model 30-454J
Pickup available at IES - Mississauga
Usually ready in 4 hours
The IDEAL 454® Series wing-nut connector (Model 30-454J) is a professional-grade twist-on connector engineered for fast, reliable wire terminations on the job site. Rated at 600V AC and suitable for 14 to 6 AWG solid or stranded wire, this blue, winged connector handles 1 to 6 conductors — making it versatile enough for panel work, device connections, and junction box splices in both residential and commercial construction. The live-action square wire spring maintains constant pressure on the conductors, reducing the risk of loose connections over time. The flame-retardant polypropylene shell and zinc-plated finish add durability in demanding environments, while the winged design gives electricians and DIYers a secure, no-slip grip even in tight spaces. Sold in a convenient 50-pack, these connectors are a job-site staple worth keeping stocked in every tool bag.
Specifications
| Brand | IDEAL Industries |
| Model | 30-454J |
| Series | 454® |
| Shell Style | Winged |
| Colour | Blue |
| Wire Size | 14 to 6 AWG |
| Wire Type | Solid/Stranded |
| Conductor Range | 1 to 6 Conductors; 12 to 3 AWG min, 6 to 1 AWG with 8 to 2 AWG max combination |
| Wire Strip Length | 7/8 in |
| Voltage Rating | 600 V AC |
| Temperature Rating | 221°F (105°C) |
| Spring Type | Live Action / Square Wire |
| Material | Polypropylene |
| Finish | Zinc Plated |
| Type | Flame-Retardant |
| Dimensions | 0.78 in Dia × 1.2 in W × 1.45 in H |
| Pack Quantity | 50 |
