IDEAL
MFR #85-346
UPC #783250853465
RJ45 CAT5e RJ45 Standard Connectors (25-Pack), Model 85-346
$43.45
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories

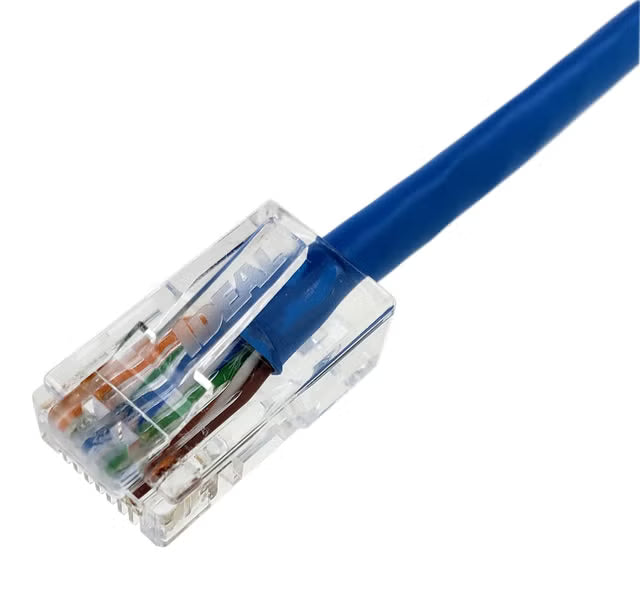

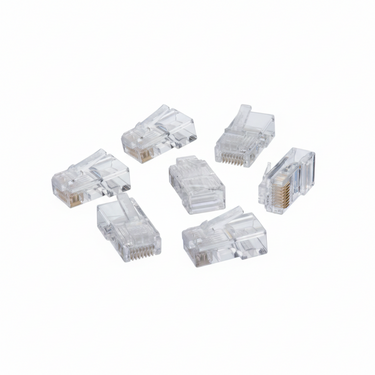

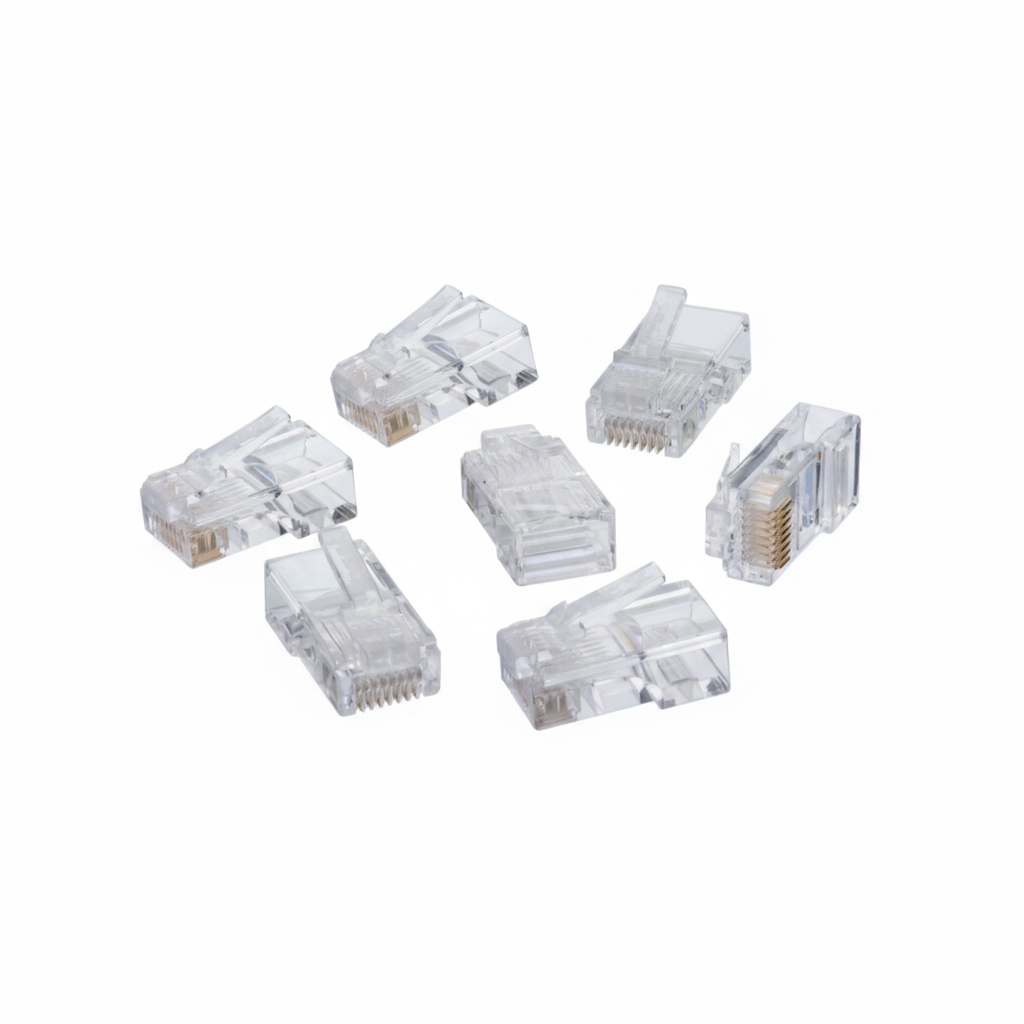

These clear RJ45 CAT5e modular connectors make reliable field terminations simpler for structured cabling, service work, and network installations. Their 8P8C design supports solid or stranded copper conductors, while gold-plated contacts and PoE compatibility help deliver dependable connectivity in demanding data applications.
Specifications
| Application | CAT5e RJ45 modular plug termination |
| Connector format | 8P8C, male |
| Cable compatibility | 100 ohm balanced twisted-pair cable for 100 MHz / 1 Gb applications |
| Conductor compatibility | Solid or stranded insulated copper conductors, 23–24 AWG |
| Insulated conductor diameter | 0.032 in. to 0.041 in. |
| Cable jacket diameter | 0.180 in. to 0.270 in. |
| Frequency range | 16 MHz to 100 MHz |
| Contact plating | 50 micro-inch gold plating on the mating area |
| Feed-through | No |
| Shielded | No |
| PoE compatibility | PoE and PoE++ compatible |
| Compliance | UL Listed |
| Colour | Clear |
| Warranty | Limited 1 year |
RJ45 CAT5e RJ45 Standard Connectors (25-Pack), Model 85-346
$43.45
/
