IDEAL
MFR #92-650
UPC #783250926503

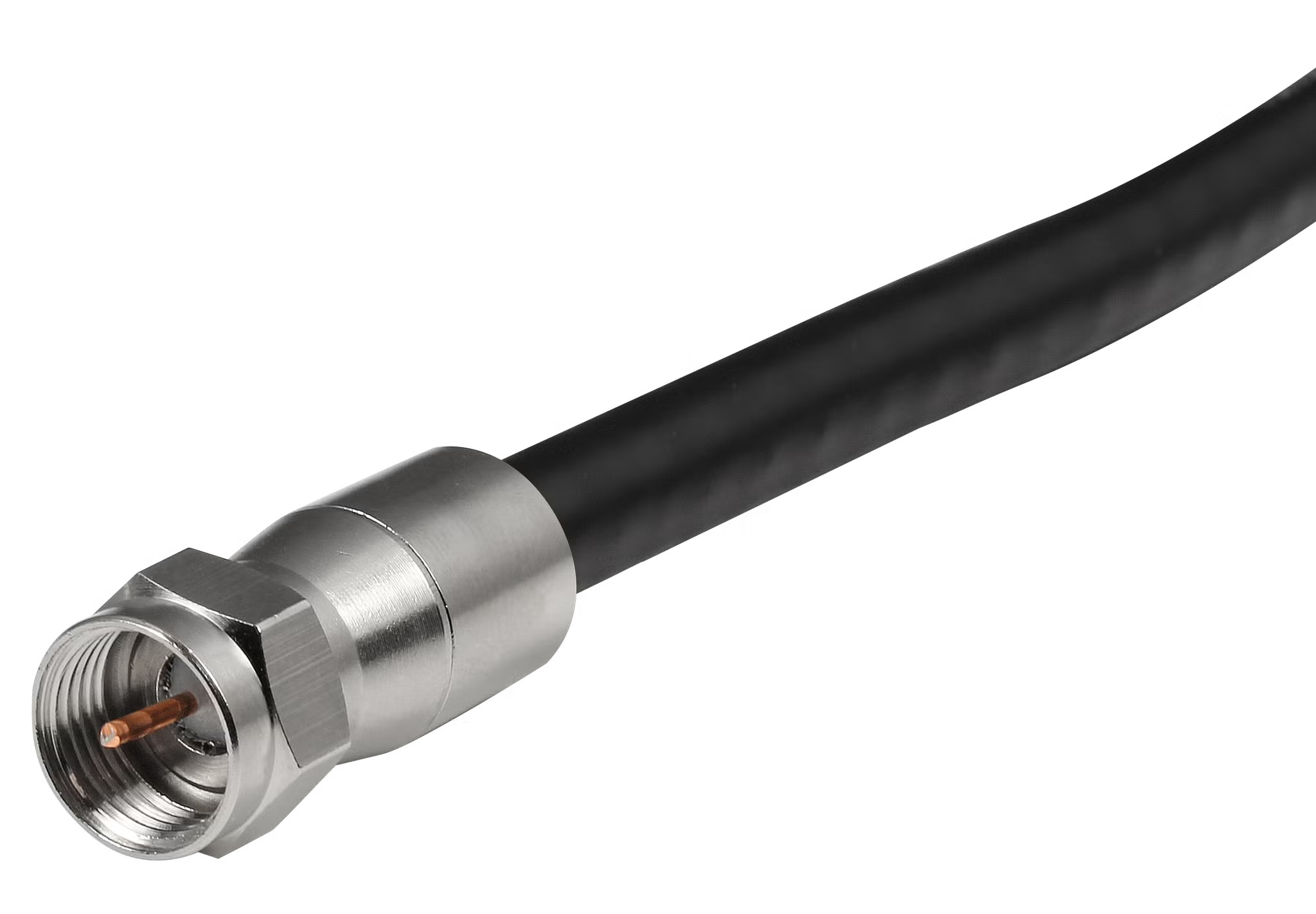

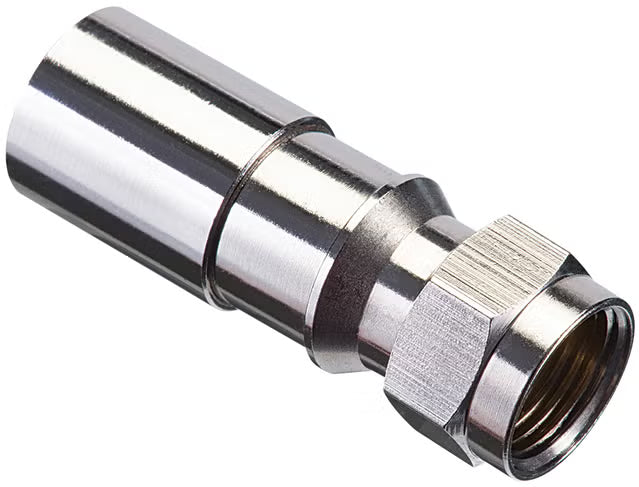

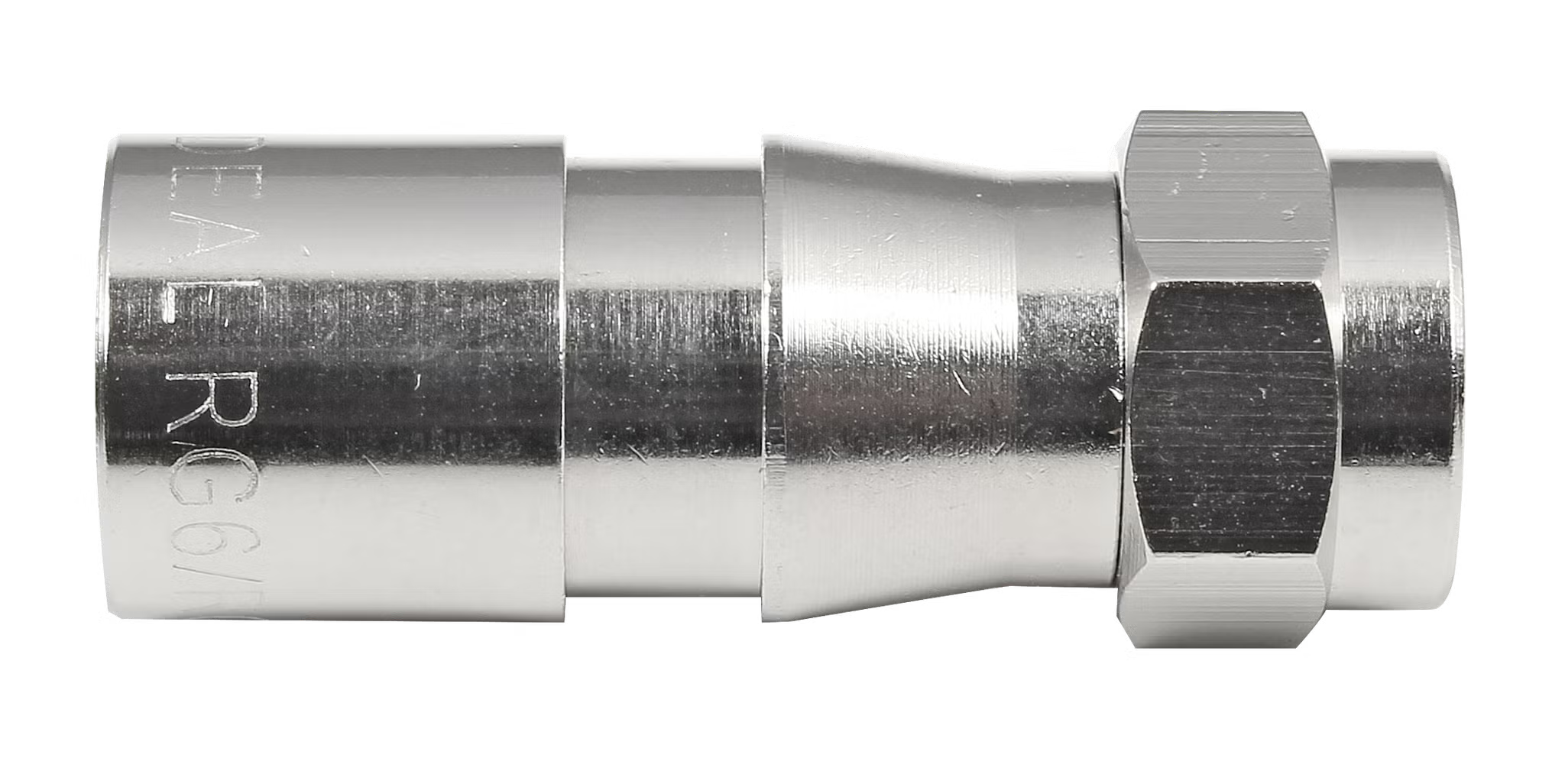

Jar of 50 RTQ™ XR™ F Compression Connectors RG-6 (Regular/Tri/Quad), Model 92-650
$70.77
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories
Build reliable CATV, satellite, HDTV, and A/V connections with this weather-resistant compression F-connector. Its brass construction, dual O-rings, and sealing sleeve help protect terminations from moisture while maintaining cable retention on indoor and outdoor installations.
Specifications
| Connector type | Compression F-connector, male, non-feed-thru |
| Cable compatibility | RG6, RG6 Quad, RG6 Plenum, and RG6 Plenum Quad coaxial cable |
| Shielding | Regular, tri-shield, and quad-shield cable |
| Impedance | 75 ohms |
| Frequency range | 5 MHz to 3 GHz |
| Dielectric diameter | 0.168 in. to 0.183 in. |
| Outer jacket diameter | 0.226 in. to 0.310 in. |
| Centre conductor | All centre conductor types |
| Cable preparation | Industry-standard 1/4 in. x 1/4 in. coax preparation |
| Construction | Brass exterior with dual O-rings and internal sealing compression sleeve |
| Colour | Grey |
| Installation tools | IDEAL PrepPRO cable stripper 45-605; IDEAL OmniSeal PRO XL 30-793 or Linear X 3 33-632 compression tool |
| Package quantity | Jar of 50 connectors |
| Warranty | Limited 1 year |
