IDEAL
MFR #85-375
UPC #783250853755

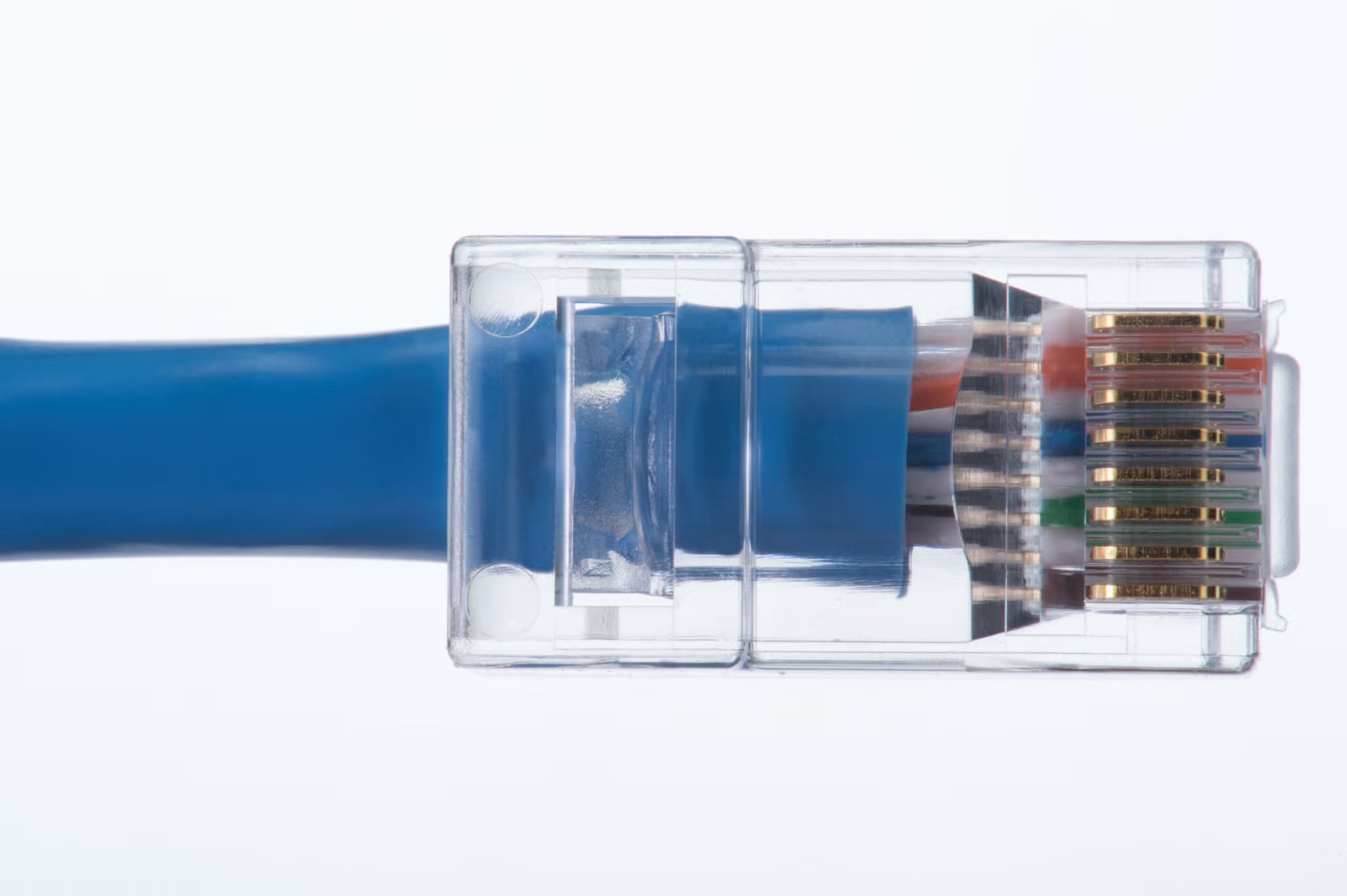

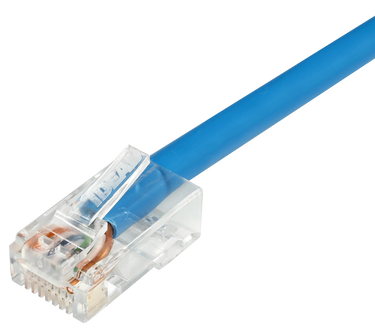

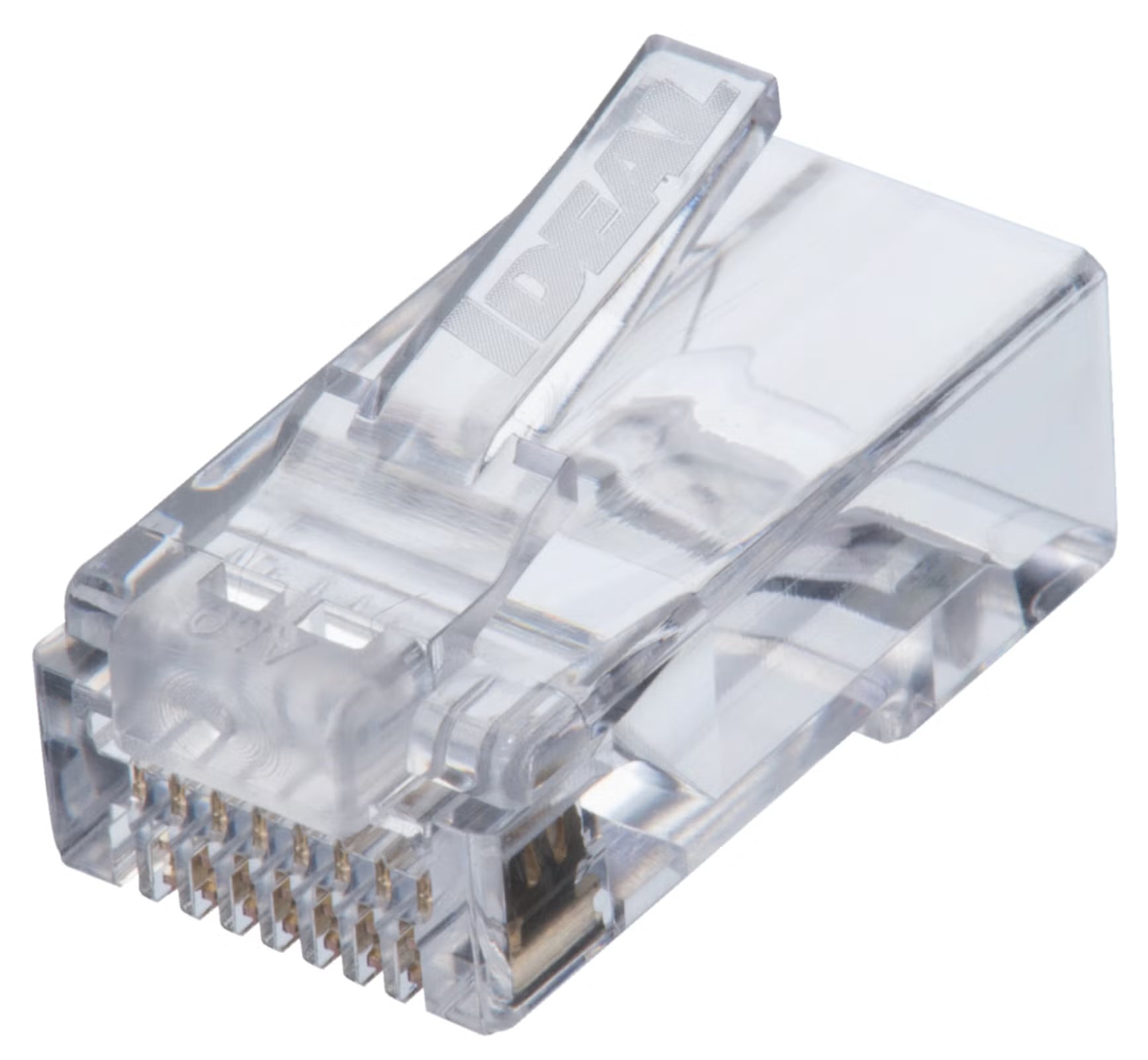

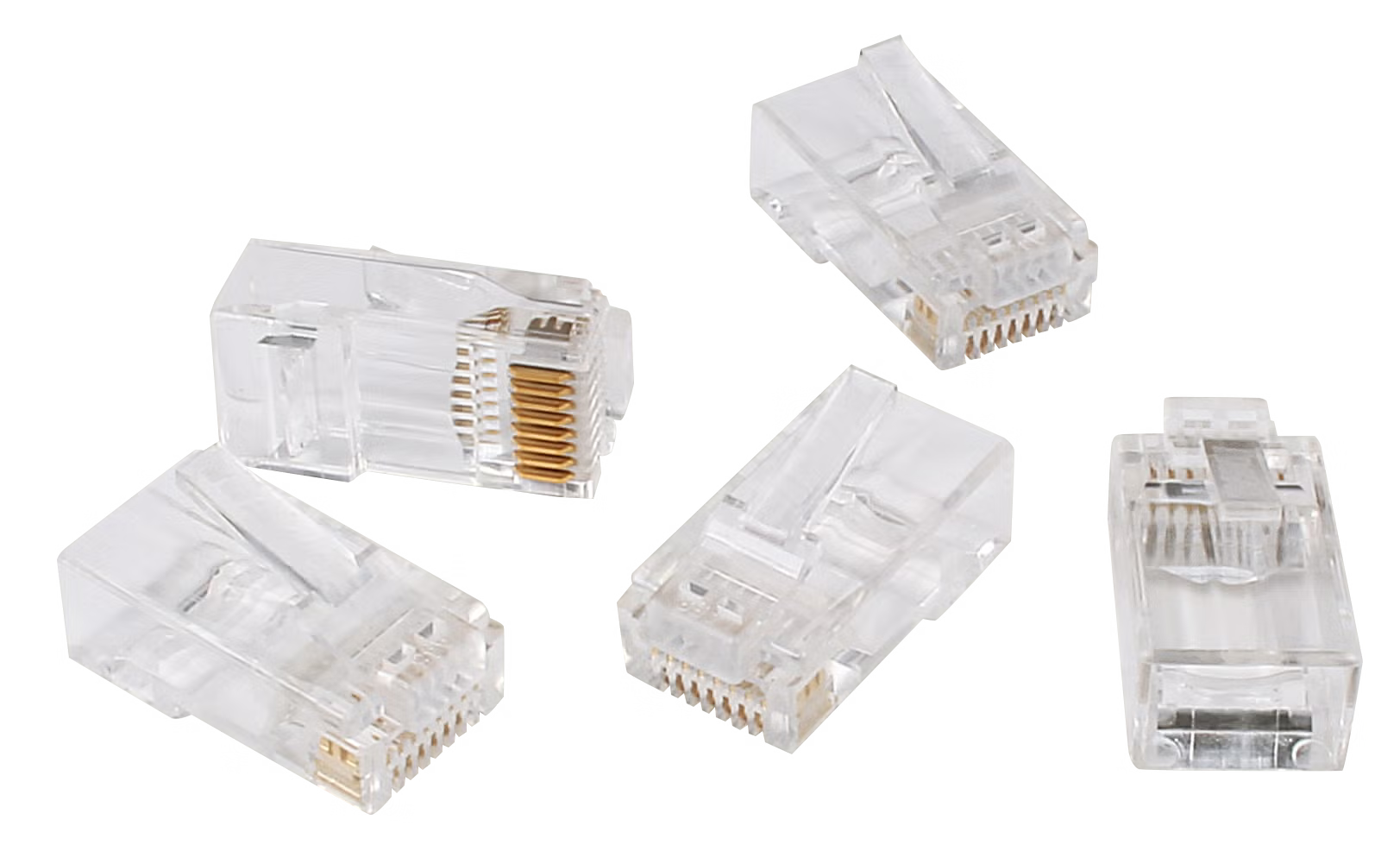

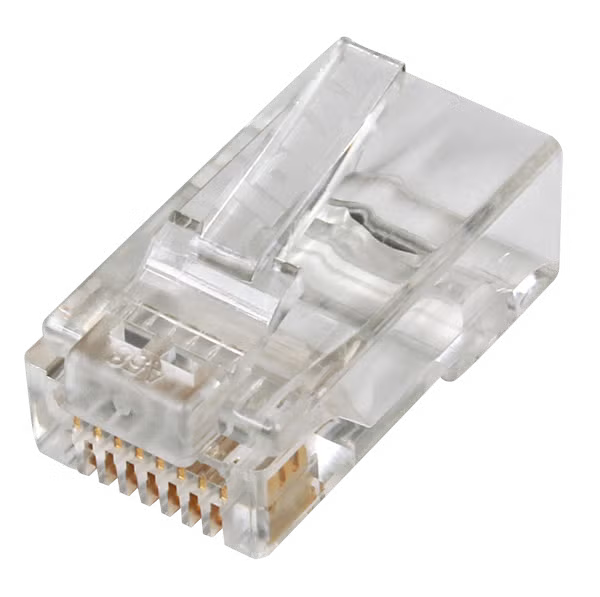

CAT6 Feed-Thru RJ45 Connectors (Pack of 25), Model 85-375
$28.37
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories
Make CAT6 terminations faster and more dependable with feed-through RJ45 connectors that let you verify conductor order before crimping. The streamlined design helps reduce wasted material and supports clean, reliable connections for data networks and Power over Ethernet installations in the field.
Specifications
| Product type | Feed-through RJ45 modular connector |
| Manufacturer | IDEAL |
| Pack quantity | 25 |
| Connector configuration | RJ45, 8P8C, male |
| Feed-through design | Yes |
| Shielded | No |
| Compatible conductors | Solid or stranded 23–24 AWG insulated copper |
| Insulated conductor diameter | 0.032–0.041 in |
| Maximum cable jacket diameter | 0.290 in |
| Contact plating | 50 micro-inch gold plating |
| Frequency range | 16–250 MHz |
| Impedance | 100 ohms |
| Power over Ethernet compatibility | PoE, PoE+ and PoE++; IEEE 802.3af/at/bt |
| Certification | UL Listed |
| Warranty | Limited 1 year |
