IDEAL
MFR #85-371
UPC #783250853717

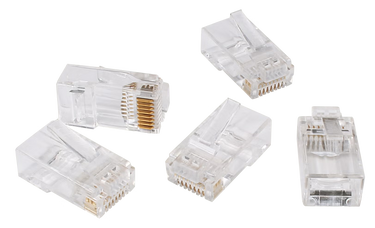

CAT5e Feed-Thru RJ45 Connectors (Pack of 50), Model 85-371
$50.74
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories
IDEAL Feed-Thru RJ45 connectors make CAT5e cable termination faster and more dependable by letting installers confirm conductor order before crimping. The precision feed-through design helps reduce wiring errors and material waste on data, PoE, and network installation jobs. They are compatible with solid or stranded 23–24 AWG copper conductors and are designed for best results with the IDEAL FT-45 crimp tool.
Specifications
| Connector type | CAT5e feed-through RJ45 modular plug |
| Pack quantity | 50 connectors |
| Connector gender | Male |
| Positions / contacts | 8P8C |
| Shielding | Unshielded |
| Wire type | Solid or stranded |
| Conductor size | 23–24 AWG insulated copper conductors |
| Insulated conductor diameter | 0.032″ to 0.041″ |
| Cable jacket diameter | 0.180″ to 0.270″ |
| Frequency range | 16 MHz to 100 MHz |
| Impedance | 100 Ω |
| Contact plating | 50 micro-inch gold plating on mating area |
| Colour | Clear |
| Network compatibility | PoE, PoE+, and PoE++; IEEE 802.3af/at/bt |
| Recommended tool | IDEAL FT-45 crimp tool |
| Approvals | UL Listed |
| Warranty | Limited 1 year |
CAT5e Feed-Thru RJ45 Connectors (Pack of 50), Model 85-371
$50.74
/
