IDEAL
MFR #30-1034
UPC #783250693573

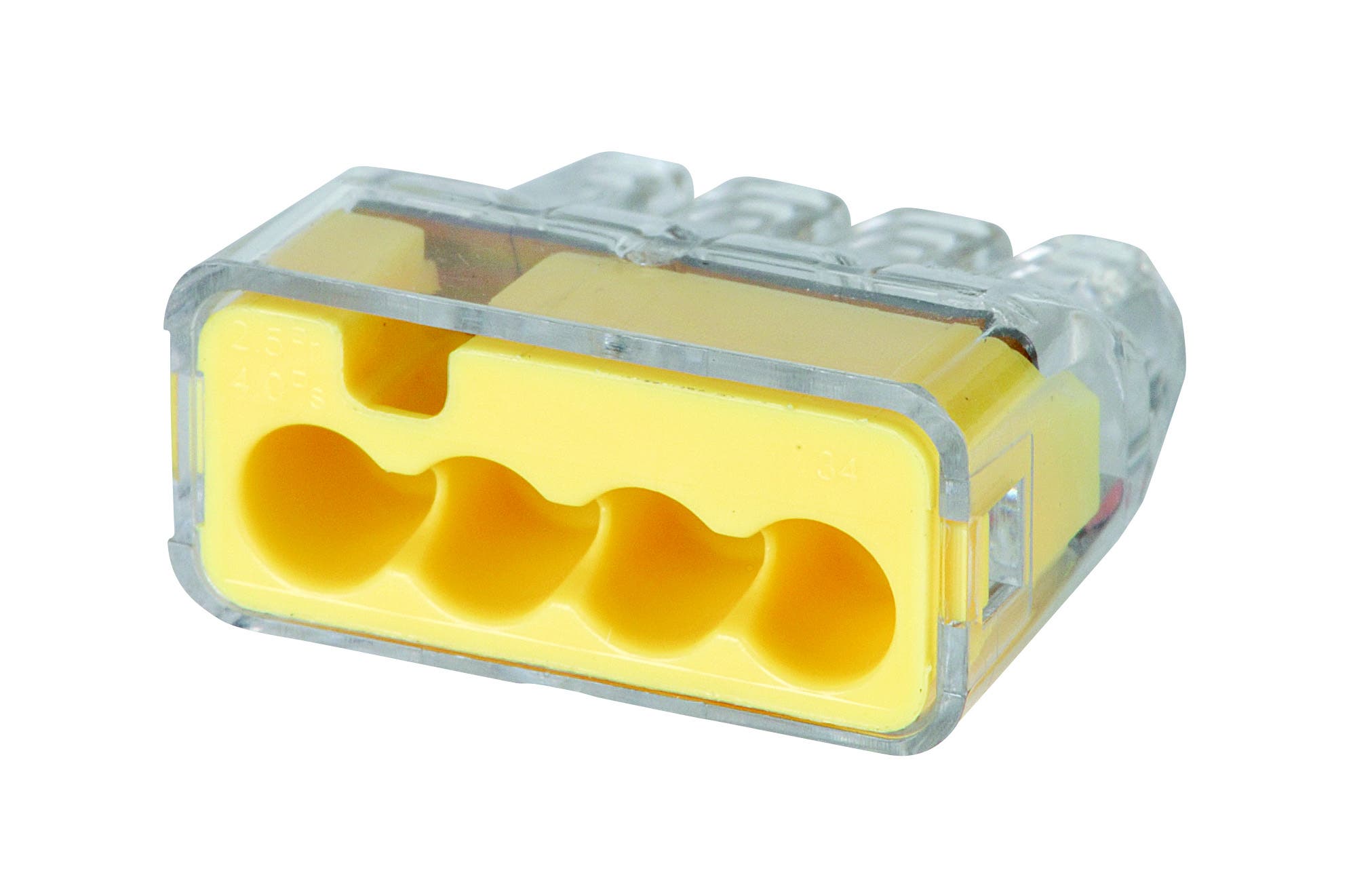

In-Sure® Push-in 4-Port Wire Connectors (Box of 100), Model 30-1034
$18.21
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories

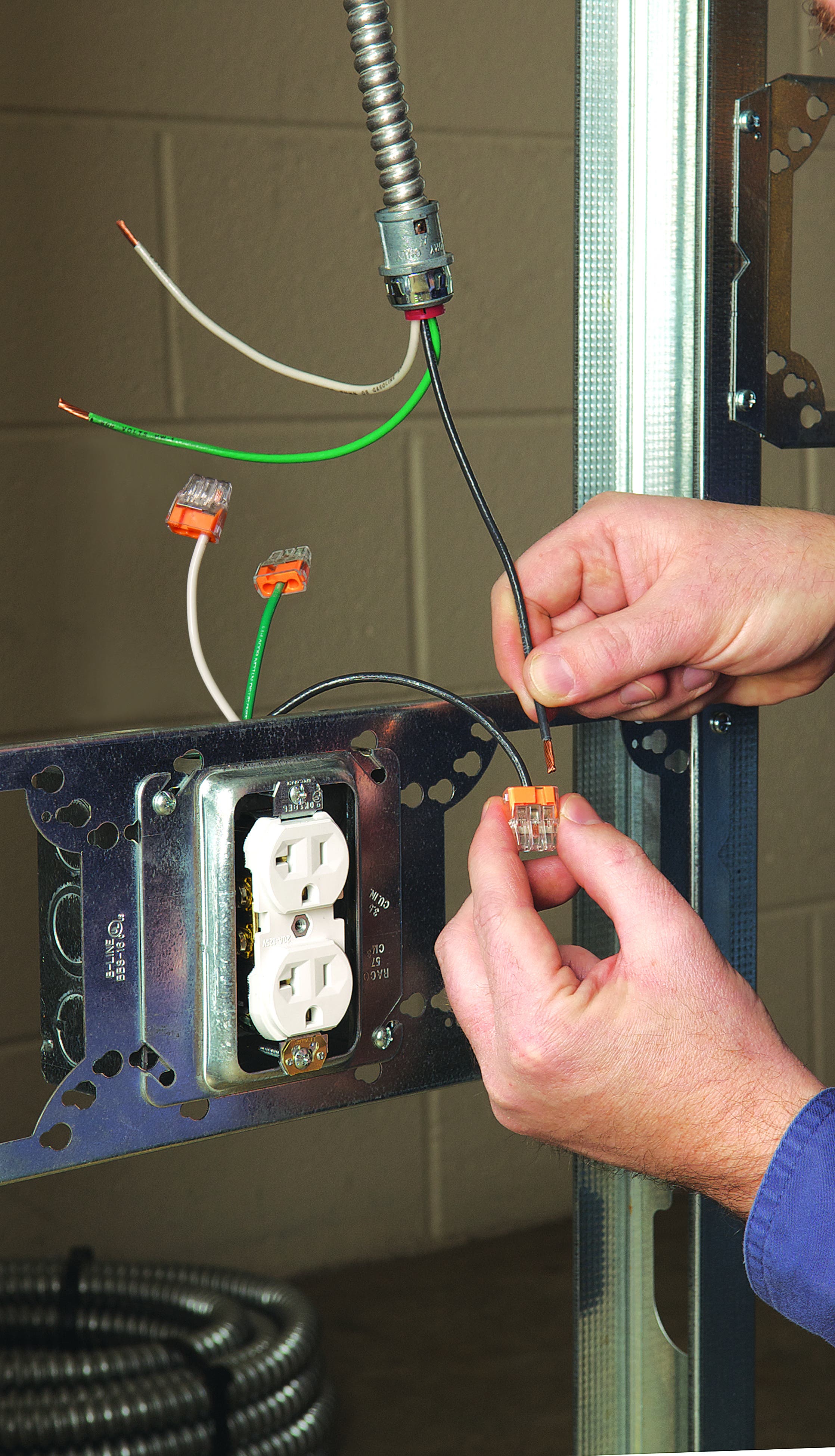

Make branch-circuit connections faster with low insertion force that helps reduce hand and wrist fatigue during repetitive electrical work. The clear, colour-coded flame-retardant housing makes port identification and visual connection checks easy, while the compact four-port design fits neatly into device boxes for lighting, prefabricated wiring, bonding and grounding applications.
Specifications
| Connector Type | Push-in wire connector |
| Number of Ports | 4 |
| Solid Wire Range | 12–20 AWG |
| Stranded Wire Range | 12–16 AWG |
| Copper-Clad Aluminum Wire | 12 AWG |
| Voltage Rating | 600 V |
| Temperature Rating | 105°C (221°F) |
| Housing | Clear yellow polycarbonate, UL 94V-2 flame-retardant |
| Approved Applications | Bonding and grounding |
| Certifications | CSA certified and UL listed |
| Plenum Rated | No |
| Package Quantity | 100 connectors |
| Warranty | Limited 1 year |
