IDEAL
MFR #30-1033
UPC #783250693542

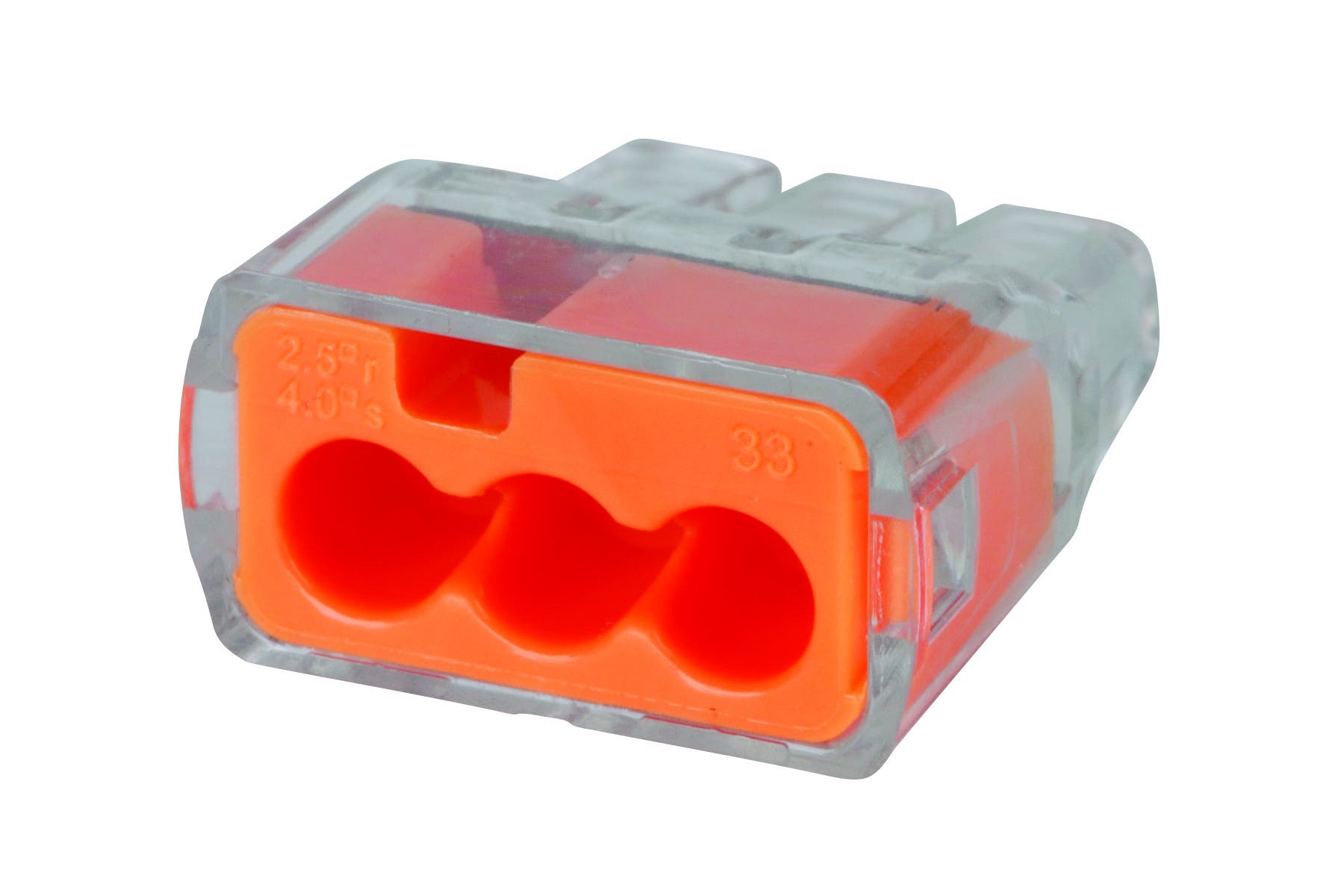

In-Sure® Push-in 3-Port Wire Connectors (Box of 100), Model 30-1033
$16.41
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories

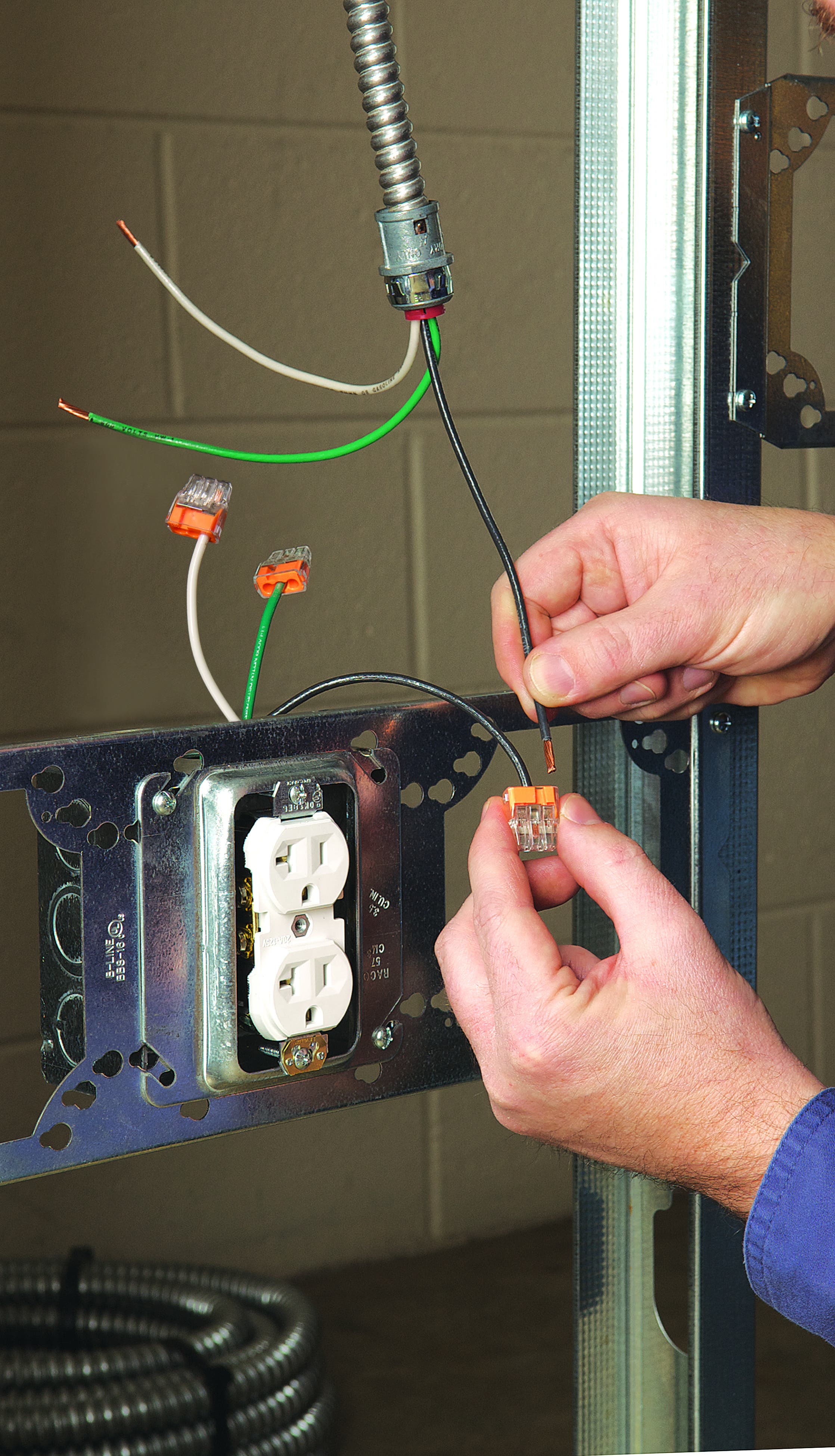

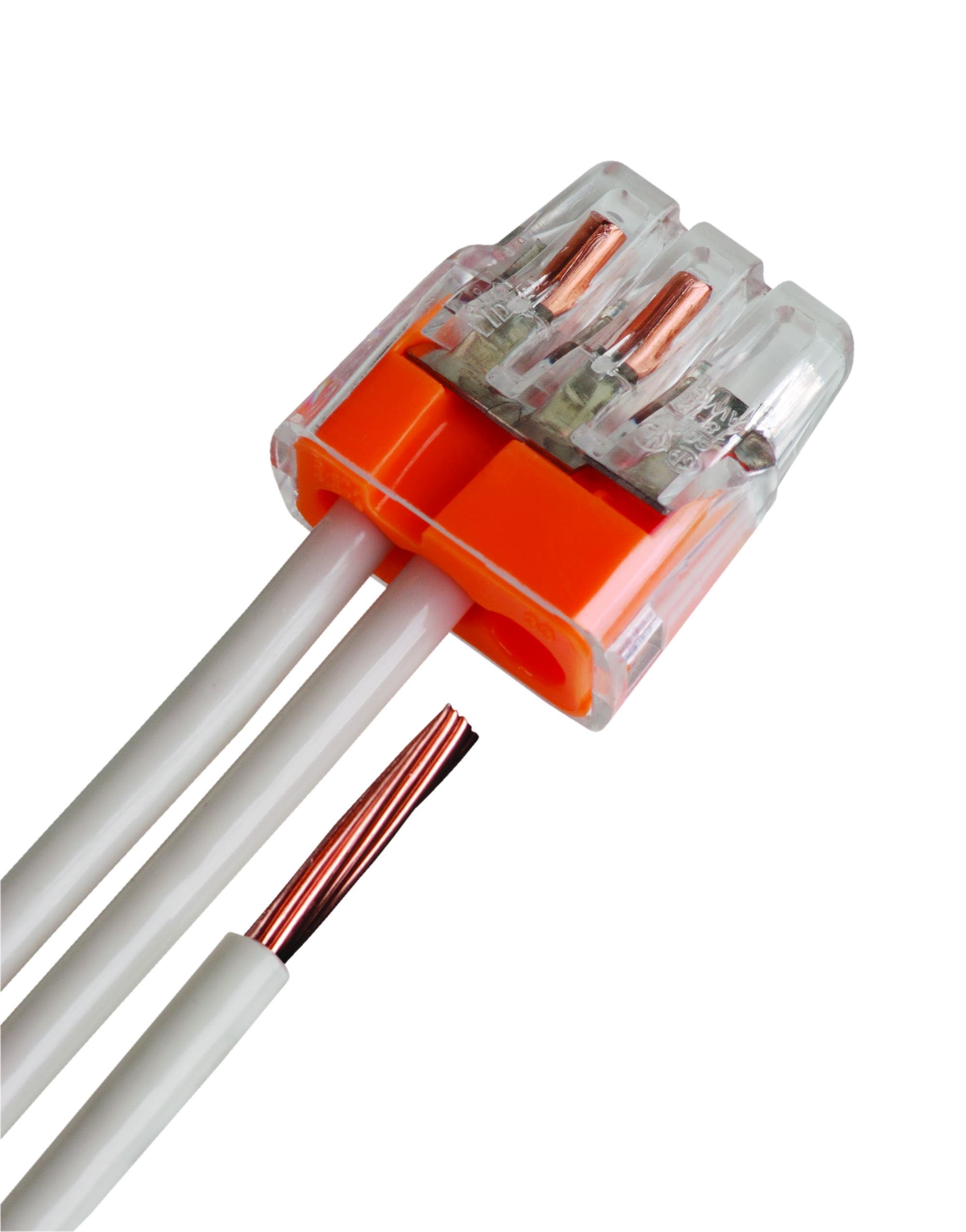

Make branch-circuit and lighting work faster with IDEAL® In-Sure® push-in wire connectors. The low-insertion-force design reduces hand and wrist strain, while the clear, colour-coded housing gives quick visual confirmation and easy port identification. Their compact, CSA-certified, UL-listed design is rated up to 600 V for dependable connections in lighting installations, prefabricated wiring systems, and other wiring applications.
Specifications
| Connector type | Push-in wire connector |
| Number of ports | 3 |
| Solid wire compatibility | 12–20 AWG |
| Stranded wire compatibility | 12–16 AWG |
| Copper-clad aluminium compatibility | 12 AWG |
| Voltage rating | Up to 600 V |
| Housing | Clear, colour-coded polycarbonate |
| Flame-retardant rating | UL 94V-2, rated to 105 °C (221 °F) |
| Approved applications | Bonding and grounding |
| Plenum rated | No |
| Flexible skirt | No |
| Colour | Orange |
| Pack quantity | 100 connectors |
| Warranty | Limited 1 year |
In-Sure® Push-in 3-Port Wire Connectors (Box of 100), Model 30-1033
$16.41
/
