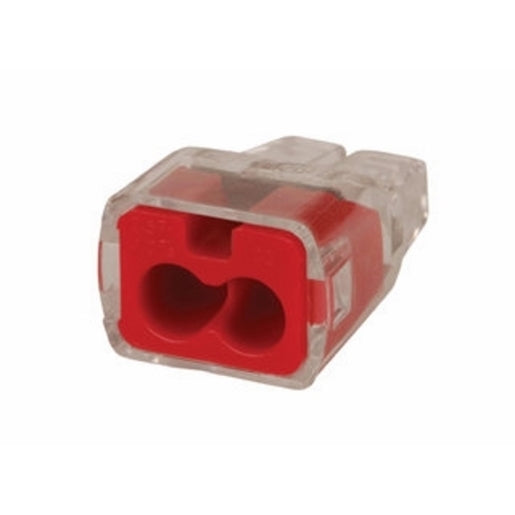

In-Sure® Push-In Wire Connectors 2-Port, Model 30-1032
$15.44
/
In Stock
Shipping calculated at checkout.
IDEAL
MFR #30-1032
UPC #783250693511
In-Sure® Push-In Wire Connectors 2-Port, Model 30-1032
$15.44
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
The IDEAL® In-Sure® 2-Port Push-In Wire Connector delivers single-step, no-twist connections that save time and reduce hand and wrist fatigue during high-volume wiring tasks like lighting installations, prefabricated wiring systems, and branch circuit work. The ergonomic, low-insertion-force design combined with a clear polycarbonate shell gives electricians visual confirmation of a secure connection, while the compact form factor fits easily into any box. Rated to 600V and CSA-certified, these connectors support 20–12 AWG solid, 16–12 AWG stranded, and 12 AWG copper-clad aluminium wire in any combination.
Specifications
| Brand | IDEAL® |
| Series | In-Sure® |
| Connector Style | Push-In |
| Number of Ports | 2 |
| Wire Gauge (Solid) | 20–12 AWG |
| Wire Gauge (Stranded) | 16–12 AWG |
| For Wire Type | Solid, Stranded |
| Compatible Wire | Cu-Cu, CC-Cu (copper-clad aluminium to copper) |
| Voltage Rating | 600V |
| Temperature Rating | 105°C |
| Shell Material | Clear polycarbonate, UL 94V-2 flame-retardant |
| Colour | Red |
| Plenum Rated | No |
| Flexible Skirt | No |
| Certifications | cULus, CSA, CE, UKCA |
| Warranty | Limited 1 Year |
In-Sure® Push-In Wire Connectors 2-Port, Model 30-1032
$15.44
/
