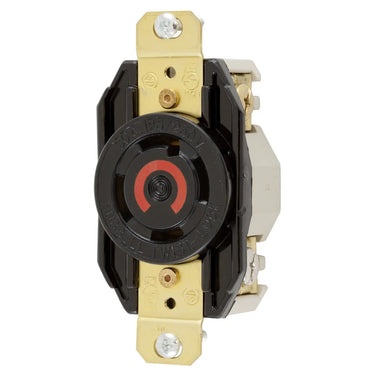

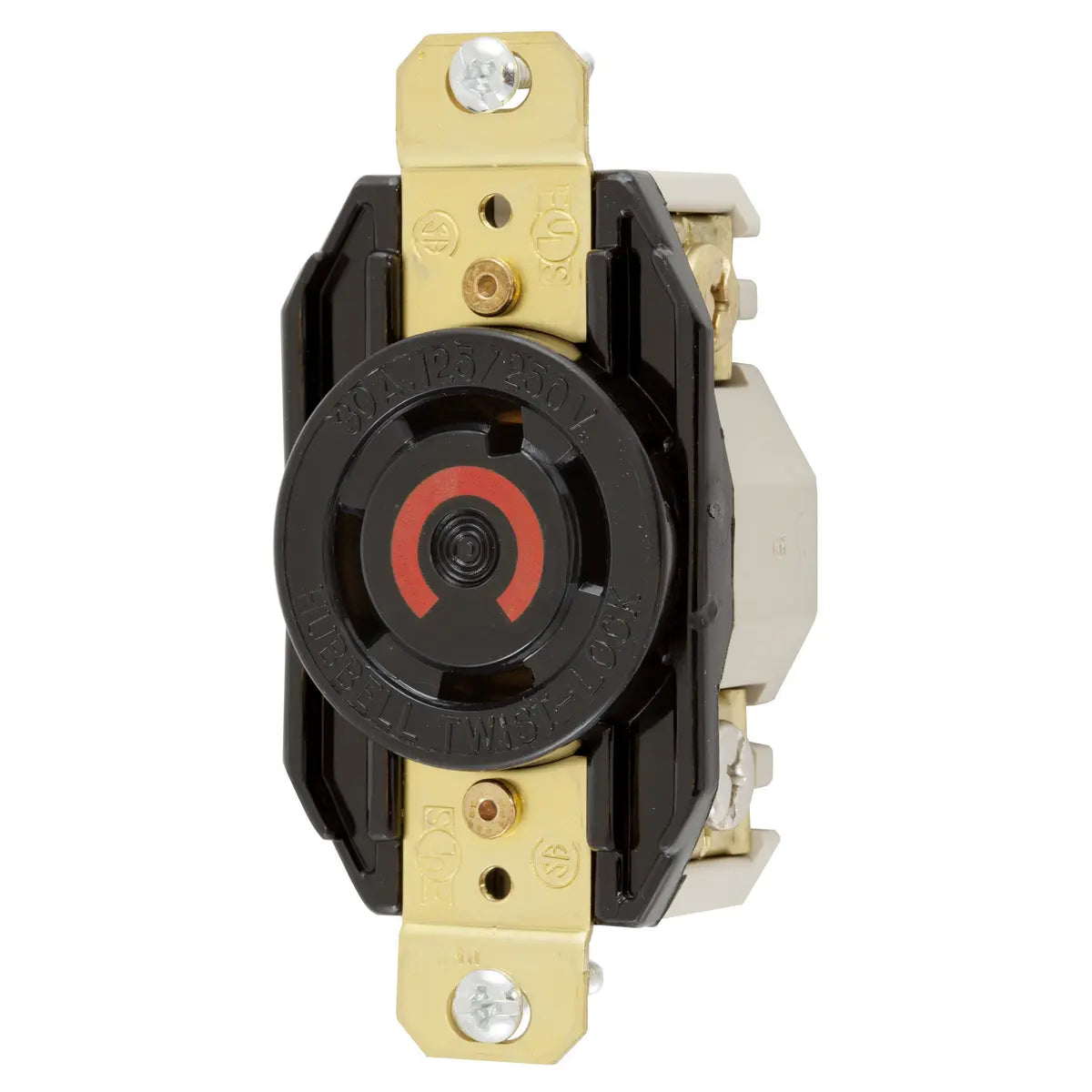

Hubbell 30 Amp 125/250V Industrial Grade Twist-Lock Flush Receptacle, Model HBL2710
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
This industrial-grade Twist-Lock® flush receptacle provides a locking connection for 30 A, 125/250 V power installations in indoor dry environments. Recessed wire restraints help reduce terminal loosening during back or side wiring, while the all-brass mounting and grounding system offers corrosion resistance and a low-resistance ground path. Voltage colour coding helps crews identify and mate the correct devices during installation and maintenance.
Specifications
| Device Type | Industrial-grade single flush locking receptacle |
| Current Rating | 30 A |
| Voltage Rating | 125/250 VAC |
| NEMA Configuration | L14-30R |
| Poles and Wires | 3-pole, 4-wire grounding |
| Phase | Single phase |
| Colour | Black |
| Wiring Method | Back and side wired screw terminals with wire restraint recess |
| Conductor Accommodation | #16 AWG to #8 AWG solid or stranded copper wire only |
| Face Material | Nylon |
| Base Material | Glass-reinforced thermoplastic polyester (RTP) |
| Contacts and Mounting Strap | Brass |
| Terminal Screws | #10-32 brass |
| Mounting Method | Screw mounting |
| Environmental Conditions | Indoor dry unless protected by additional means |
| Moisture Resistance | IP20 suitability |
| Operating Temperature | Maximum continuous 75°C; minimum -40°C without impact |
| Dielectric Strength | Withstands 2,000 V minimum |
| Current Interrupting | Certified for current interrupting at full rated current |
| Flammability | V2 or better per UL94/CSA 22.2 No.0.17 |
| Terminal Identification | Terminals identified in accordance with UL 498 |
| Maximum Horsepower (Source Notation) | 2(2) |
| Dimensions (L × W × H) | 3.28 × 1.7 × 1.31 in |
| Weight | 0.3 lb |
