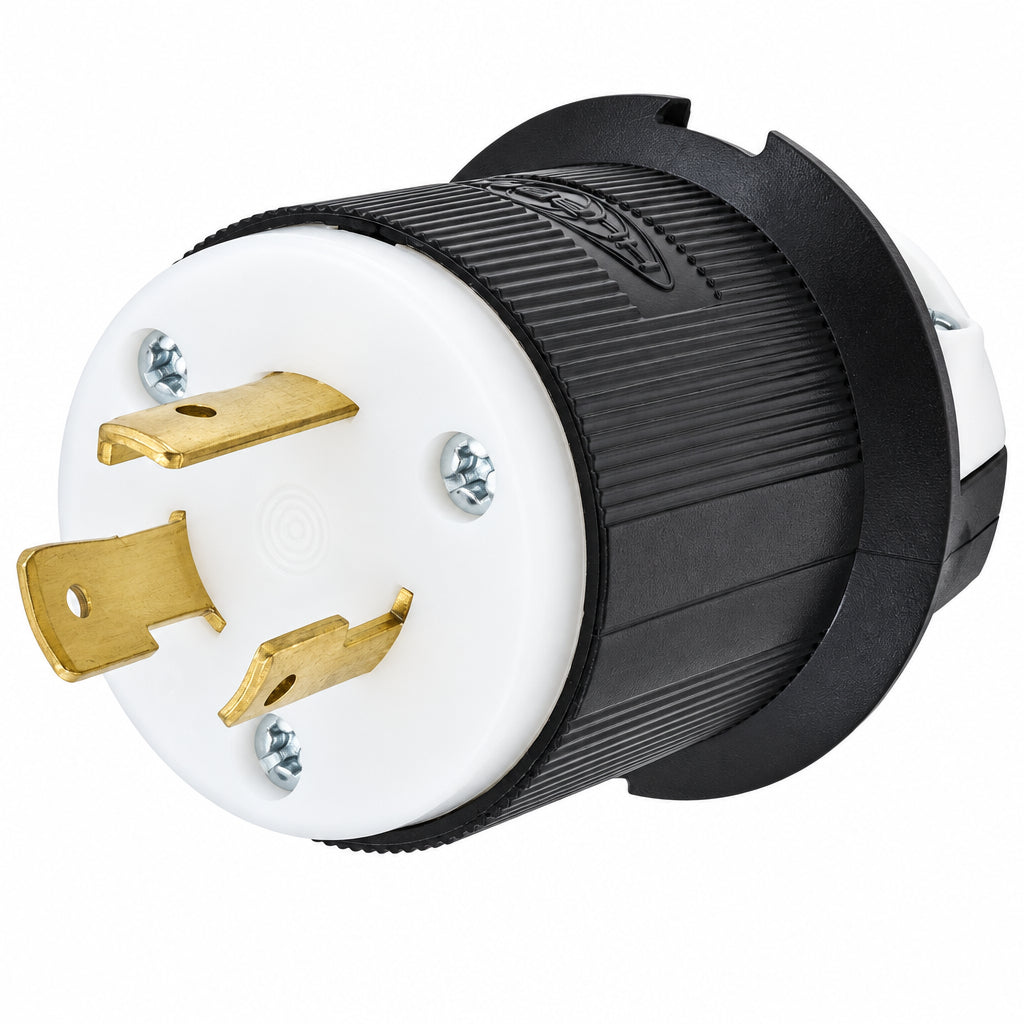

Hubbell 20 Amp 250V Industrial Grade Twist-Lock Male Plug, Model HBL2321
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
This Hubbell industrial Twist-Lock® male plug provides a secure locking connection for 20 A, 250 V AC equipment in indoor dry environments. Its ribbed nylon housing offers a firm grip with impact and chemical resistance, while the cord grip helps protect terminations from excess strain. Funnel-shaped wire entries simplify termination, and an integral dust shield helps keep contaminants out of the wiring chamber.
Specifications
| Product Type | Industrial Insulgrip® Twist-Lock® male plug |
| Brand | Hubbell Wiring Device-Kellems |
| Electrical Rating | 20 A, 250 V AC, single phase |
| NEMA Configuration | L6-20P |
| Poles and Wires | 2-pole, 3-wire grounding |
| Maximum Horsepower | 2 hp |
| Termination | Pressure terminal screws; terminals identified in accordance with UL 498 |
| Wire Size | #16 AWG to #8 AWG, stranded copper wire only |
| Cord Diameter Range | 0.360–0.930 in |
| Mounting | Cord mounted |
| Housing and Cord Clamp | Nylon; ribbed housing with impact and chemical resistance |
| Colour | Black and white |
| Blades | Brass |
| Assembly Screws | Nickel-plated steel |
| Terminal Clamp | Nickel-plated cold-rolled steel |
| Terminal Retainer | Clear polycarbonate |
| Terminal Screws | #10-32 brass; Phillips, slotted or Robertson drive |
| Environmental Conditions | Indoor dry unless protected by additional means; IP20 suitability |
| Operating Temperature | Maximum continuous 75°C; minimum -40°C without impact |
| Flammability | HB or better per UL94 or CSA 22.2 No. 0.6 |
| Current Interrupting | Certified for current interrupting at full rated current |
| Dielectric Strength | Withstands 2,000 V minimum |
| Dimensions (L × W × H) | 2.26 × 2.26 × 2.75 in; standard size |
| Weight | 0.2 lb |
