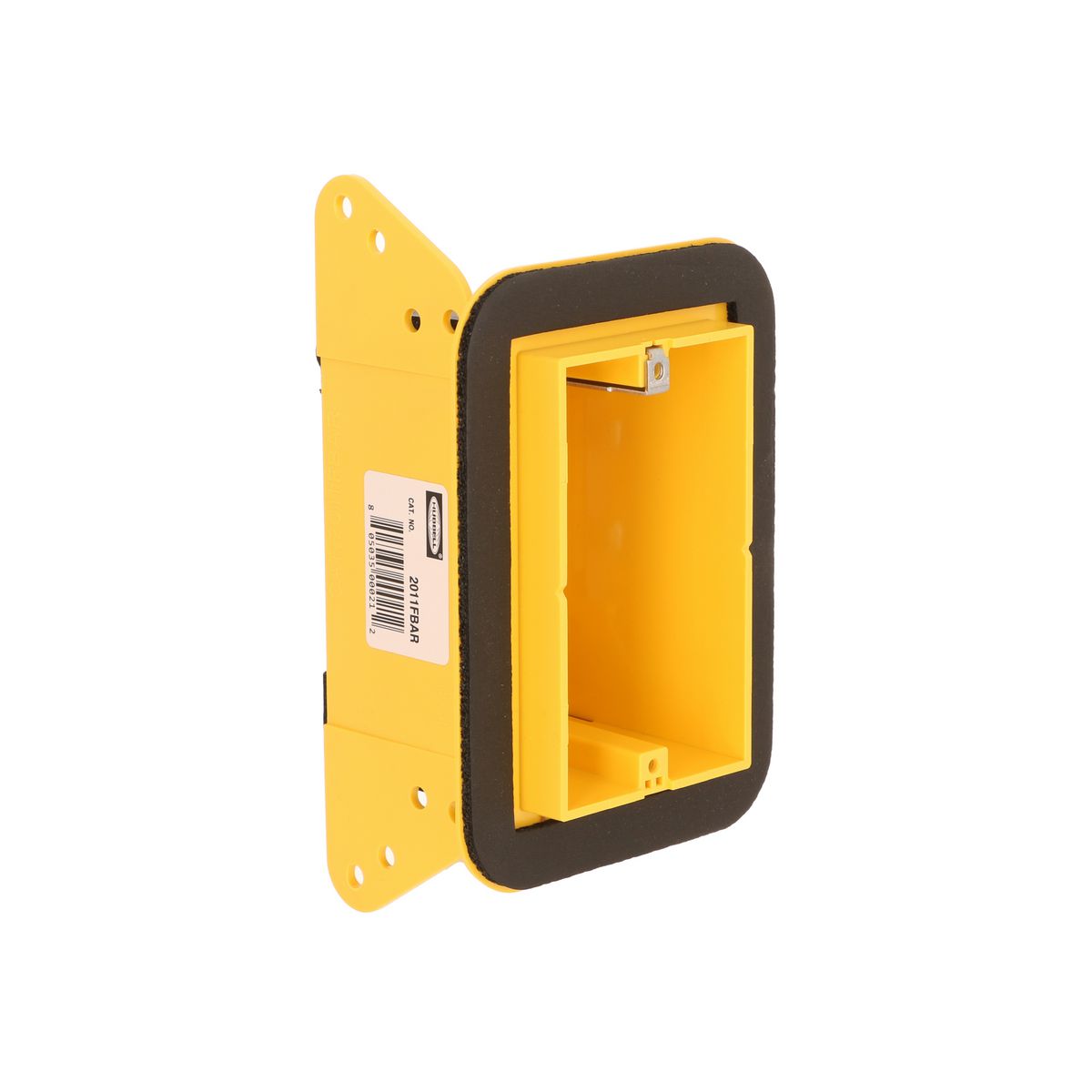

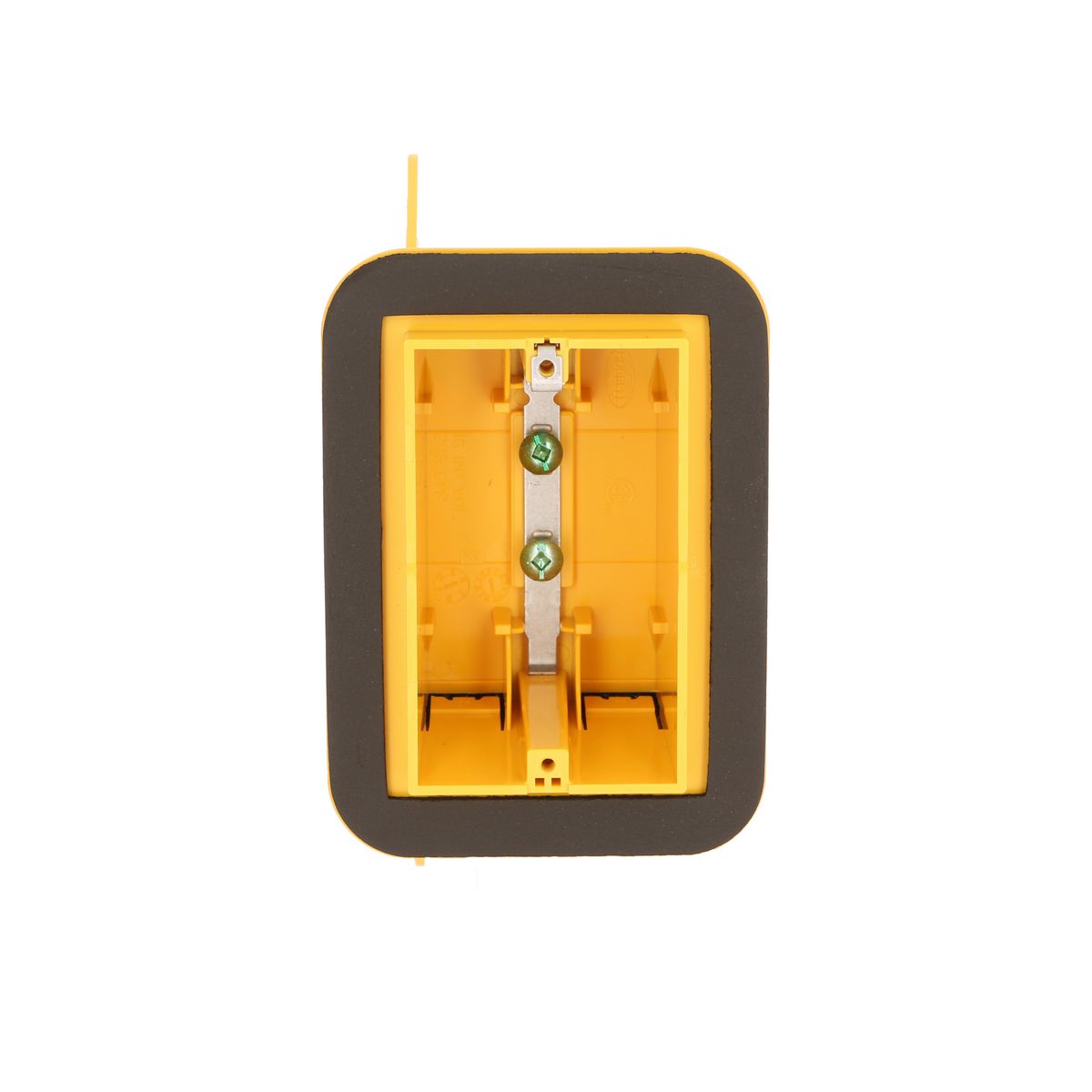

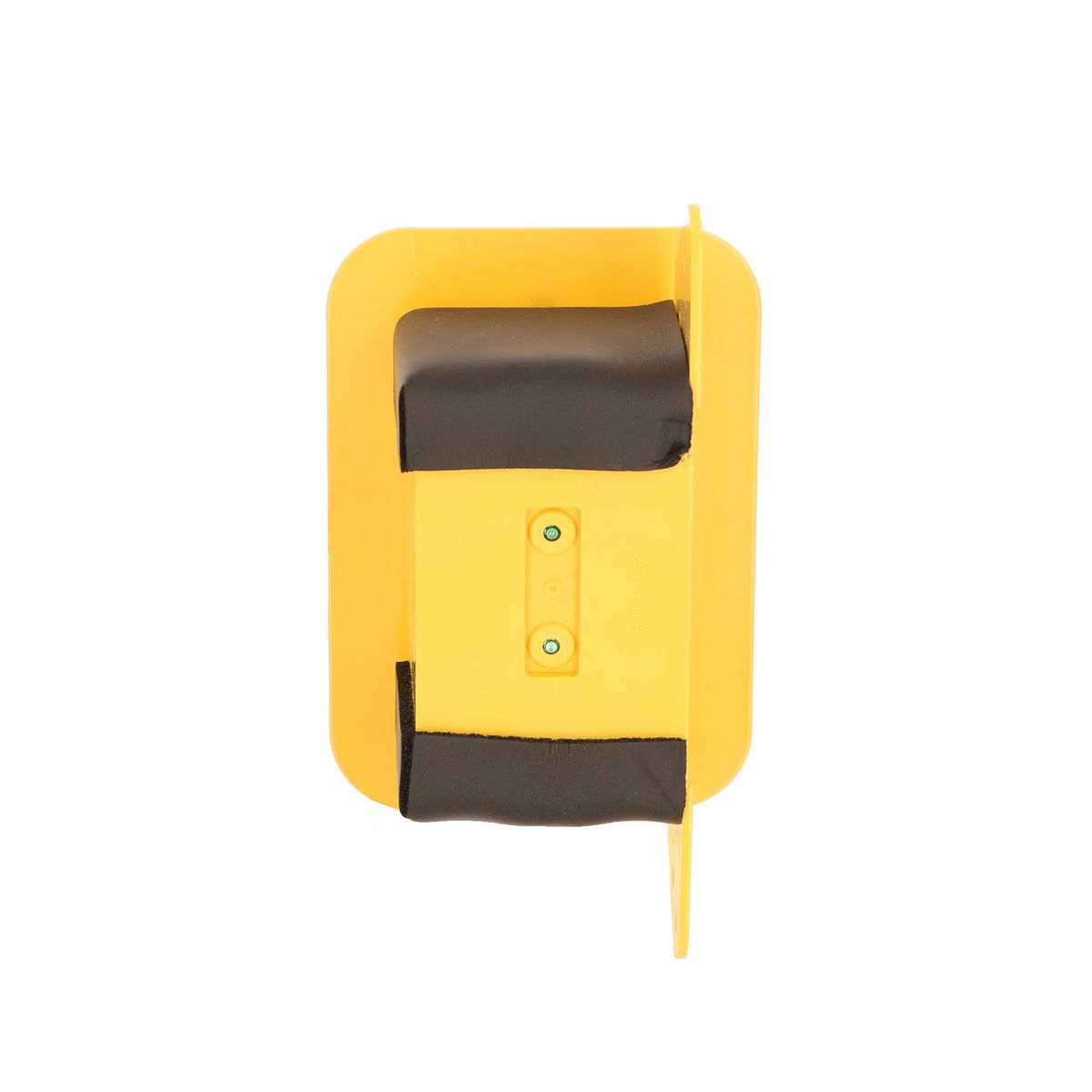

Hubbell Non-Metallic Vapor Barrier Cable Box 1-Gang, Model 2011FBAR
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
Reduce air leakage around exterior-wall switches and receptacles with this lightweight, non-metallic vapour barrier cable box. Its integrated flange and preset 1/2 in setback simplify positioning, while engraved depth guides help maintain consistent placement on the job site. Impact-resistant thermoplastic construction and an oversized mounting bracket support installation, with extra interior space for wire termination and deeper-bodied devices.
Specifications
| Product Type | Non-metallic vapour barrier cable box |
| Gang Configuration | 1-gang |
| Application | Branch-circuit wire splicing and mounting switches or receptacles in exterior walls |
| Wiring System | Non-metallic sheathed cable |
| Material | Thermoplastic resin |
| Colour | Yellow |
| Vapour Barrier | Integrated flange reduces exterior-wall air leakage and eliminates the need for separate vapour/air barriers at the box |
| Bracket Setback | 1/2 in |
| Engraved Depth Guides | 5/8, 1, 1-1/8 and 1-1/4 in |
| Cable Clamps | 4 |
| Mounting | Oversized nailing/screw bracket |
| Depth | 2-3/4 in |
| Actual Depth | 3.125 in |
| Height | 3.625 in |
| Width | 4.625 in |
| Cubic Capacity | 46.10546875 cu. in |
| Weight | 0.256 lb |
| UPC | 805035000212 |
