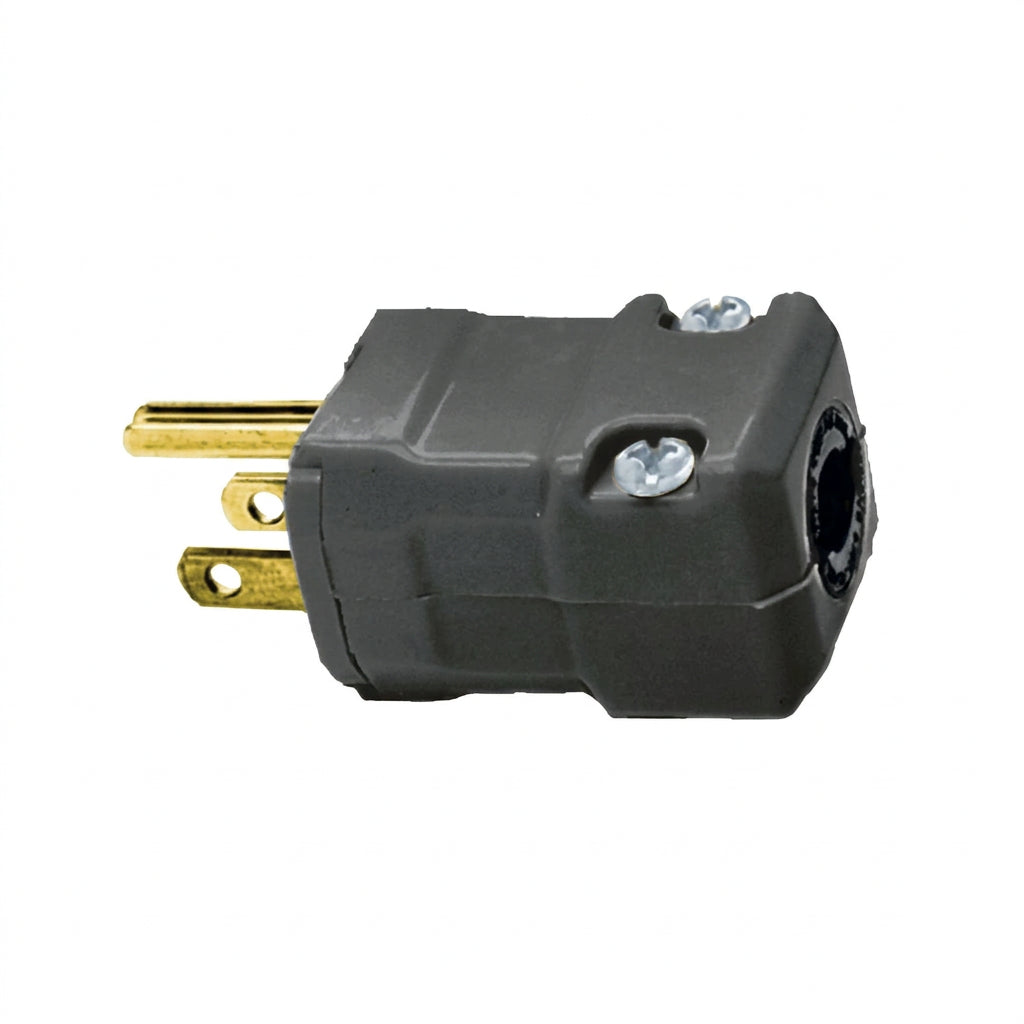

Hubbell Valise Series Male Plug Straight Blade Devices - 15 Amp / 125V, Black, Model HBL5965VBLK
$18.98
/
Assemble industrial and commercial power cords with this Hubbell Valise® straight blade male plug. Its hinged, one-piece body and captive assembly screws simplify wiring, while offsetting cord grips clamp individual conductors for secure assembly.
Specifications
| Brand | Hubbell Wiring Device-Kellems |
| Series | Valise® |
| Device Type | Straight blade male plug, standard style |
| Grade | Industrial/commercial |
| Electrical Rating | 15 A, 125 VAC, single phase |
| NEMA Configuration | 5-15P |
| Poles and Wires | 2-pole, 3-wire grounding |
| Colour | Black |
| Mounting | Cord mounted |
| Termination | Screw terminals; #18–12 AWG stranded copper wire only |
| Body Design | Hinged, one-piece body with captive assembly screws and offsetting cord grips |
| Material (General Listing) | Polycarbonate |
| Housing (Component Listing) | Nylon |
| Blades | Brass |
| Cable Inserts | PPO |
| Assembly Screws | Plated steel |
| Terminal Clamp | Nickel-plated steel |
| Terminal Screws | #8-32 brass, multiple drive |
| Maximum Horsepower | 2 hp |
| Current Interrupting | Certified for current interrupting at full rated current |
| Dielectric Strength | Withstands 2,000 V minimum |
| Flammability | UL 94 HB or better |
| IP Suitability | IP20 |
| Operating Temperature | -40°C minimum without impact; 75°C maximum continuous |
| Terminal Identification | In accordance with UL 498 and CSA |
| Dimensions (L × W × H) | 1.87 × 1.12 × 1.87 in |
| Weight | 0.1 lb |
| Pack Quantity | 1 |
| UPC | 783585013084 |
