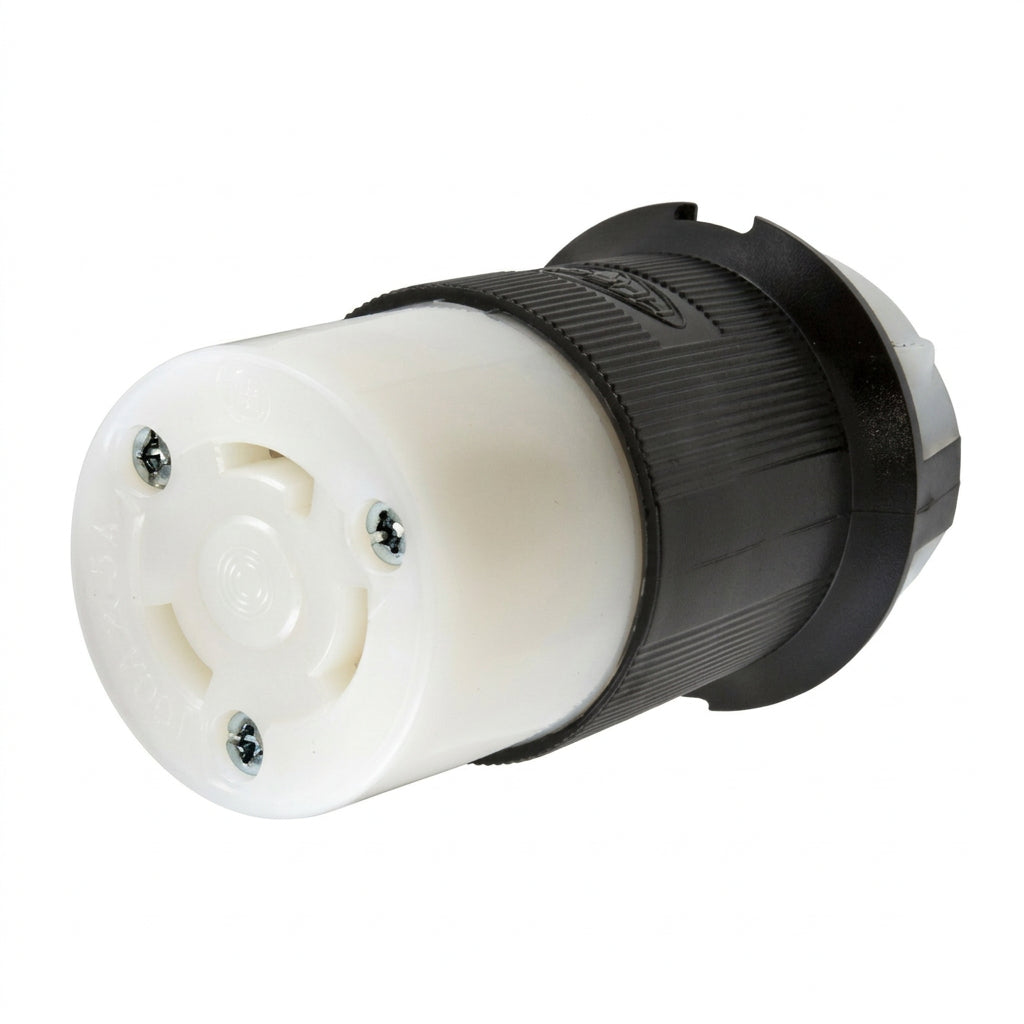

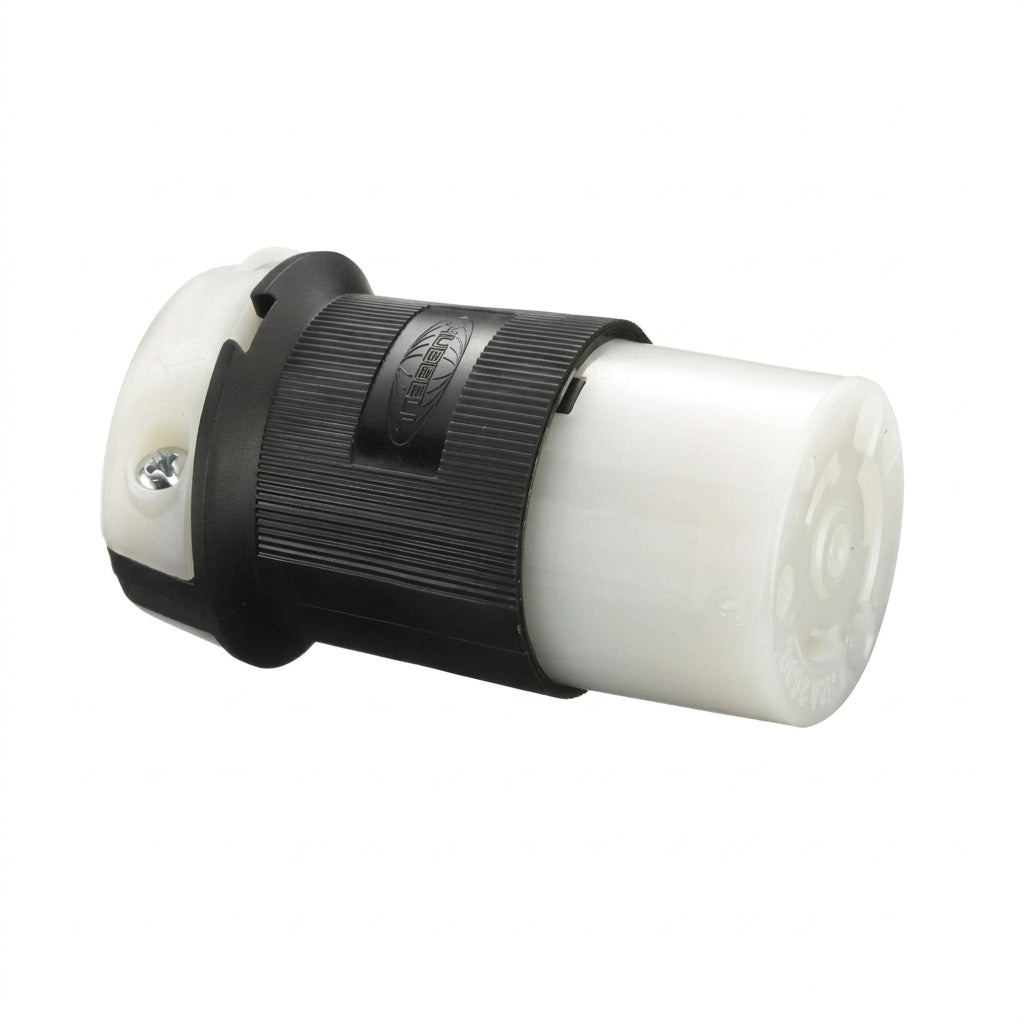

Hubbell Twist-Lock® Industrial Female Connector Body (30 Amp/250V), Model HBL2623
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
Build industrial cord assemblies with this Hubbell Twist-Lock® female connector, featuring a cord grip that protects terminations from excess strain. Funnel-shaped wire entries simplify termination, while an integral dust shield helps protect the wiring chamber from dust and contaminants. The insulated nylon body supports cord-mounted connections for industrial equipment on the job site.
Specifications
| Product Type | Industrial female locking connector; Insulgrip® |
| Current Rating | 30 A |
| Voltage Rating | 250 VAC, single phase |
| NEMA Configuration | L6-30R |
| Poles and Wires | 2-pole, 3-wire grounding |
| Termination | Pressure terminal screws |
| Conductor Range | #16 to #8 AWG stranded copper wire only |
| Cord Diameter Range | 0.360–0.930 in (9–24 mm) |
| Mounting | Cord mounted |
| Colour | Black and white |
| Housing and Cord Clamp | Nylon; insulated body |
| Contacts | Brass |
| Assembly Screws | Nickel-plated steel |
| Terminal Clamp | Nickel-plated cold-rolled steel |
| Terminal Retainer | Clear polycarbonate |
| Terminal Screws | #10-32 brass; Phillips, slotted and Robertson |
| Operating Temperature | -40°C minimum without impact; 75°C maximum continuous |
| Current Interrupting | Certified for current interrupting at full rated current |
| Dielectric Strength | Withstands 2,000 V minimum |
| Flammability | HB or better per UL 94 or CSA 22.2 No. 0.6 |
| Terminal Identification | In accordance with UL 498 |
| Dimensions (L × W × H) | 2.26 × 2.26 × 3.86 in |
| Size | Standard |
| Weight | 0.25 lb |
| UPC | 783585038865 |
