Hubbell
MFR #HBL4720C
UPC #783585171159

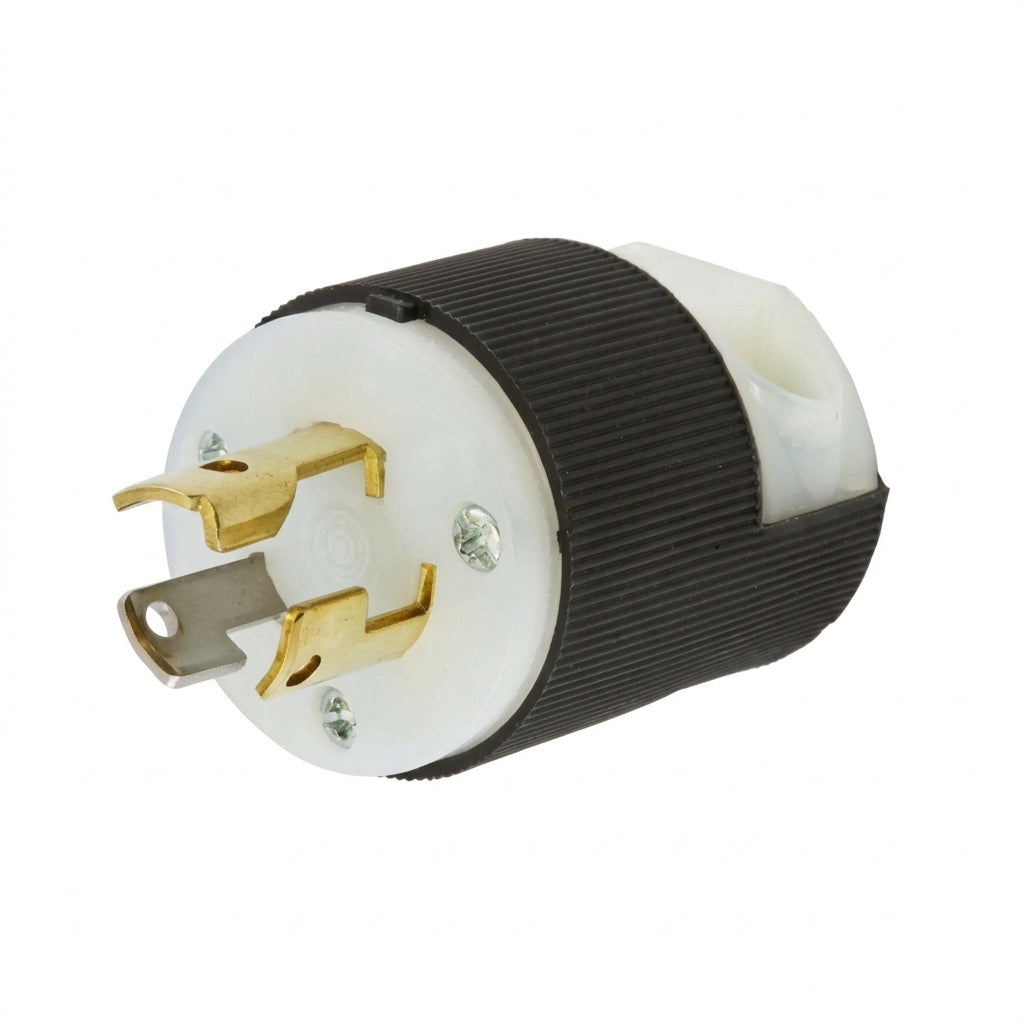

Hubbell Twist-Lock® Industrial Male Plug (15 Amp/125V) - 2-Pole 3-Wire Grounding, Model HBL4720C

$26.49 In Stock
Shipping within Ontario only. Rates calculated at checkout.

Pickup available at IES - Mississauga

Usually ready in 4 hours

Shipping & Pickup Information

ONTARIO
Ontario-wide Delivery

In-stock items typically ship next business day.

Free Shipping on Eligible Orders Over $150

Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.

Free Warehouse Pickup

Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.

Returns & Exchanges

Returns available on eligible items.

Shipping options and rates are confirmed at checkout.

Create a 2048 × 2048 px white canvas. Preserve the original supplier image exactly and scale it proportionally to 75% of the canvas. Center horizontally and vertically. Do not crop, stretch, redraw, enhance, or modify the product.
Hubbell Twist-Lock® Industrial Male Plug (15 Amp/125V) - 2-Pole 3-Wire Grounding, Model HBL4720C
$26.49

Build industrial cord assemblies with this Hubbell Twist-Lock® Insulgrip® male plug, rated 15 A at 125 V with a grounding configuration. The ribbed nylon housing provides a secure grip and resists impact and chemicals, while the roomy wiring chamber simplifies wiring during equipment installation and maintenance.

Specifications

Product Type Industrial Twist-Lock® Insulgrip® male plug
Electrical Rating 15 A, 125 V, single phase
NEMA Configuration L5-15P
Poles and Wires 2-pole, 3-wire grounding
Housing and Cord Clamp Nylon; black and white housing
Mounting Cord mounted
Termination Pressure terminal screws; #8-32 brass screws with Phillips, slotted and Robertson drives
Conductor Accommodation #16 AWG to #8 AWG stranded copper wire only
Cable Diameter Range 0.230–0.720 in
Maximum Horsepower 0.5 hp
Dielectric Strength Withstands 2,000 V minimum
Current Interrupting Certified for current interrupting at full rated current
Ingress Protection IP20 suitability
Operating Temperature −40°C minimum without impact; 75°C maximum continuous
Flammability HB or better per UL94 or CSA 22.2 No. 0.6
Blades Brass; individually moulded face for each blade configuration
Internal Hardware Nickel-plated steel assembly screws; nickel-plated cold-rolled steel terminal clamp; clear polycarbonate terminal retainer
Terminal Identification In accordance with UL 498
Dimensions (L × W × H) 1.53 × 1.53 × 1.97 in
Product Weight 0.15 lb
UPC 783585171159
