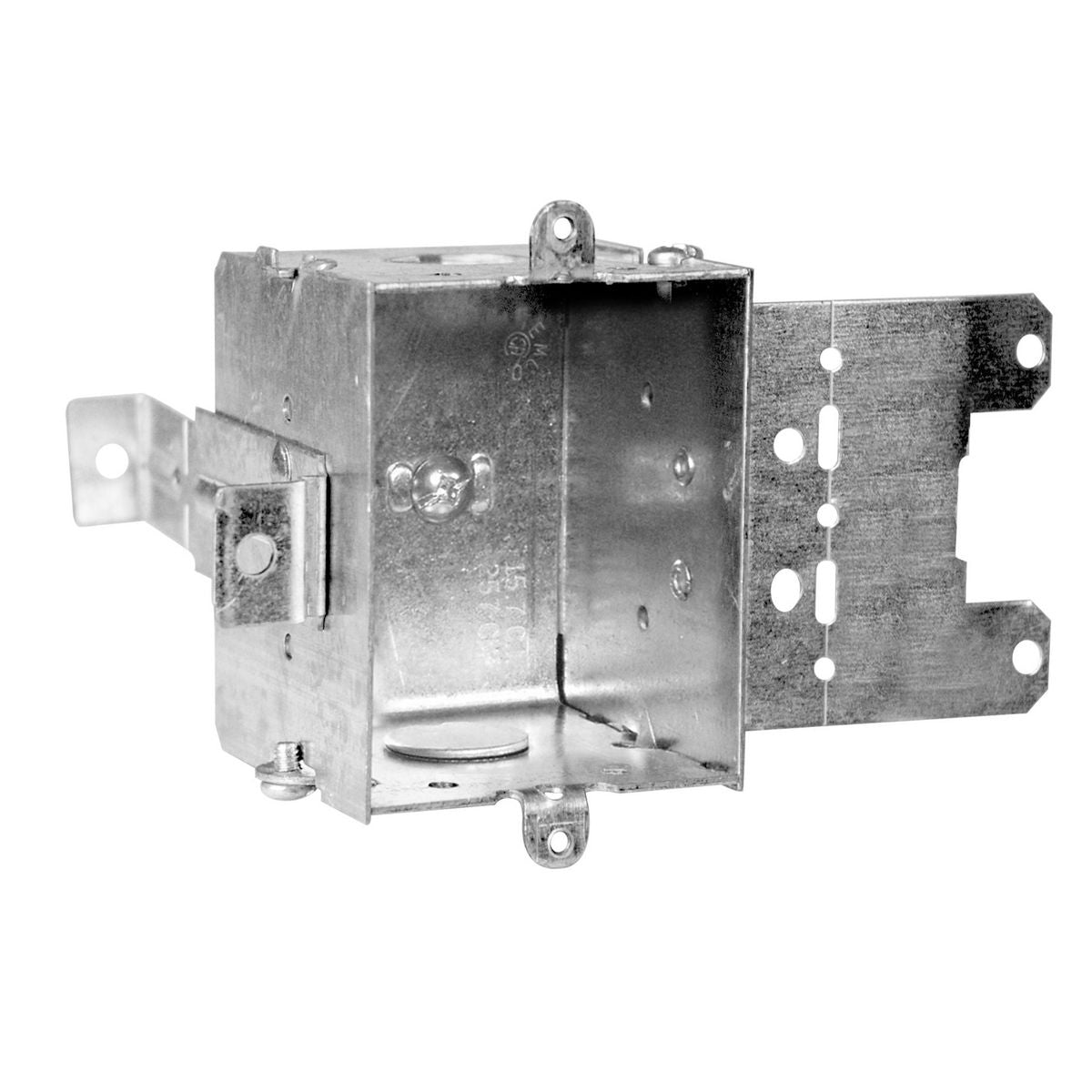

Hubbell Steel Stud Device Box (2 ½" Deep, 347V Rated, MSB Bracket) - Pack of 25, Model 1204MSBHV
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
Mount 347 V lighting switches in steel-stud walls with this gangable steel device box, designed for commercial and industrial installations. The MSB metal-stud bracket accommodates 2-3/8 in. and 3-5/8 in. studs, while the raised ground screw and 1/2 in. knockouts support conduit wiring. Its 2-1/2 in. depth and 15.7 cu. in. capacity provide space for device connections.
Specifications
| Product Type | Steel-stud device box |
| Switch Voltage | 347 V |
| Material / Construction | Welded steel |
| Colour | Silver |
| Gang Configuration | 1-gang; gangable |
| Depth | 2-1/2 in. |
| Box Capacity | 15.7 cu. in. |
| Mounting Bracket | MSB metal-stud bracket |
| Compatible Stud Sizes | 2-3/8 in. and 3-5/8 in. |
| Bracket Setback | 0.4375 (unit not specified) |
| Knockouts | 2 × 1/2 in.; end knockouts: 2 × 1/2 in. |
| Grounding | Raised ground screw |
| Plaster Ears | No |
| Wiring System | Conduit |
| Switch Mounting Hole Spacing | 3.531 in. vertically; tapped holes for 347 V switches |
| Gang Spacing / Wallplate Compatibility | 1204 series: 2.25 in. between gangs; use tradeSELECT wallplates with HV suffixes |
| Location Rating | Dry location |
| Certification | CSA Certified |
| Listed Weight | 0.7 lb |
| Package Quantity | 25 boxes |
