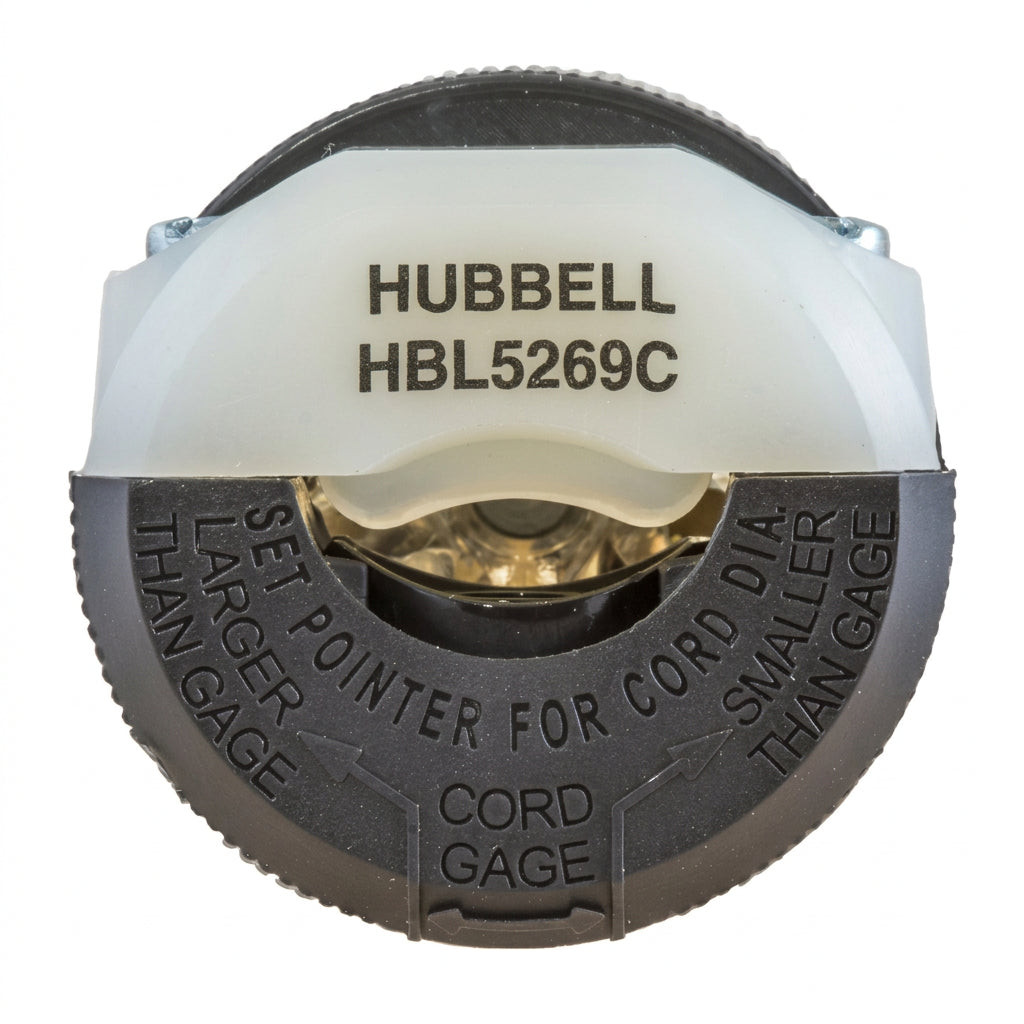

A circular Hubbell cord gage tool, model HBL5269C, featuring a translucent white top section with black text and a dark gray textured bottom section with instructional markings.

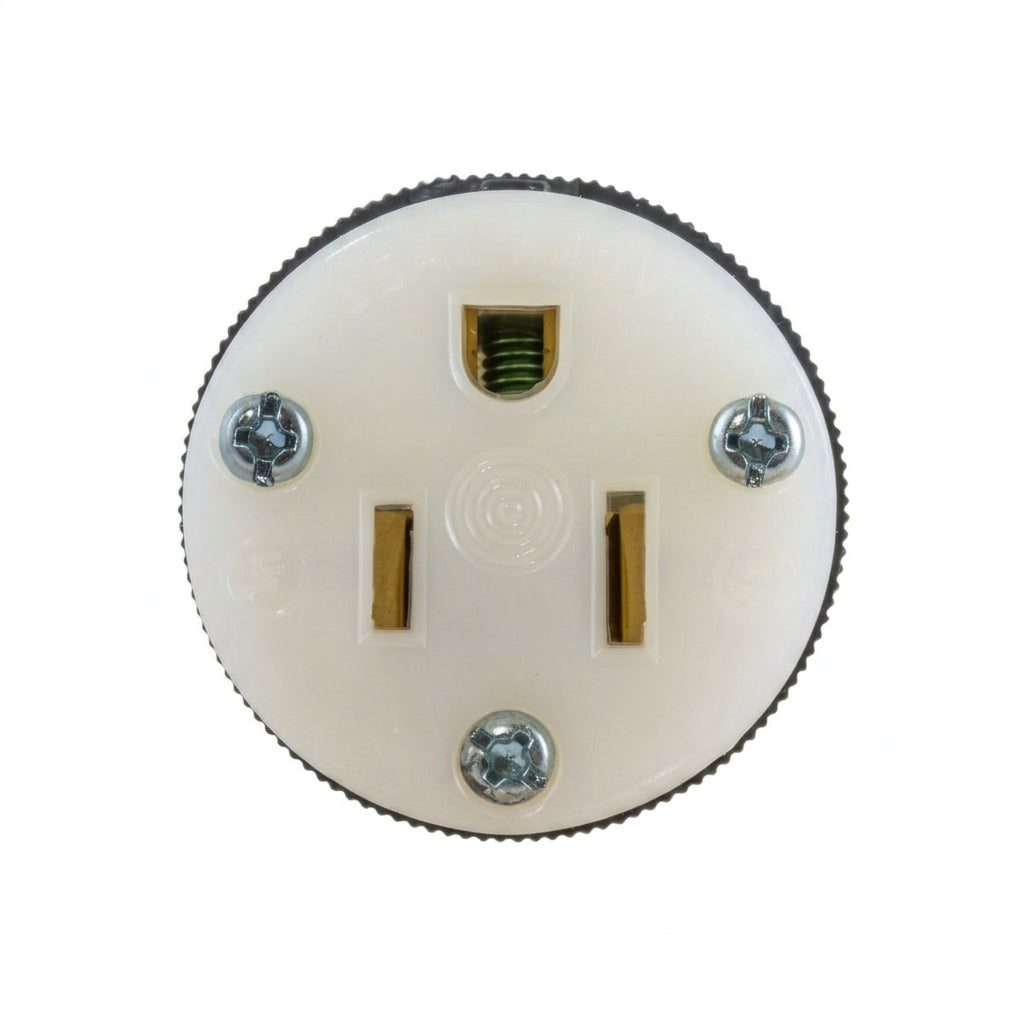

A circular electrical outlet socket component with a white plastic face, a black textured outer rim, four silver screws, and gold-toned metal contacts, shown on a plain white background.

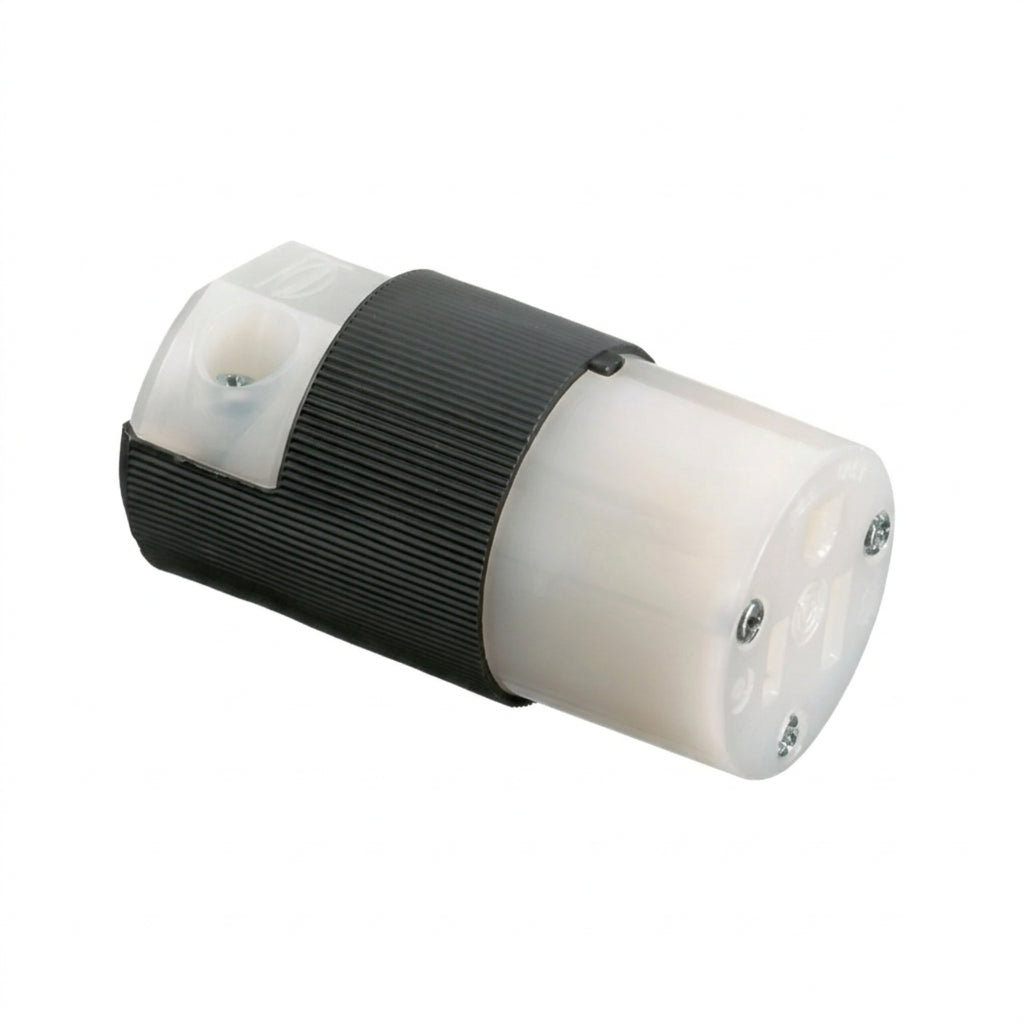

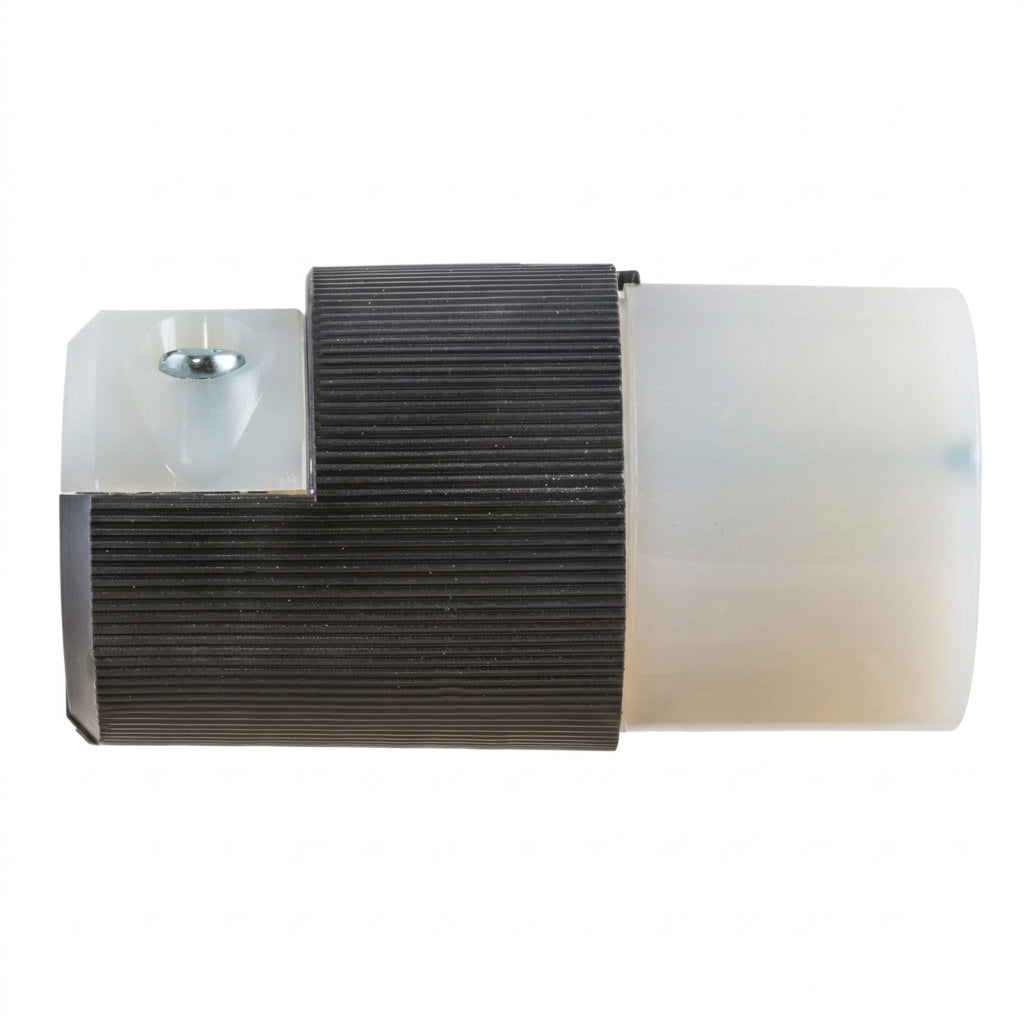

A cylindrical plastic component with a ribbed black center section, a translucent white left end, and a frosted white right end, shown on a plain white background.
A small cylindrical pump or motor component with a ribbed black central body, translucent white plastic ends, and visible mounting screws on one end, shown on a plain white background.
A circular Hubbell cord gage tool, model HBL5269C, featuring a translucent white top section with black text and a dark gray textured bottom section with instructional markings.
A circular electrical outlet socket component with a white plastic face, a black textured outer rim, four silver screws, and gold-toned metal contacts, shown on a plain white background.
A cylindrical plastic component with a ribbed black center section, a translucent white left end, and a frosted white right end, shown on a plain white background.
A small cylindrical pump or motor component with a ribbed black central body, translucent white plastic ends, and visible mounting screws on one end, shown on a plain white background.
Hubbell
MFR #HBL5269C
UPC #783585173252

Hubbell Insulgrip® Heavy Duty Industrial/Commercial Grade Straight Blade Devices - Female Connector Body (15 Amp/125V), Model HBL5269C

$53.40 In Stock
Shipping within Ontario only. Rates calculated at checkout.

Pickup available at IES - Mississauga

Usually ready in 4 hours

Shipping & Pickup Information

ONTARIO
Ontario-wide Delivery

In-stock items typically ship next business day.

Free Shipping on Eligible Orders Over $150

Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.

Free Warehouse Pickup

Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.

Returns & Exchanges

Returns available on eligible items.

Shipping options and rates are confirmed at checkout.

A circular Hubbell cord gage tool, model HBL5269C, featuring a translucent white top section with black text and a dark gray textured bottom section with instructional markings.
Hubbell Insulgrip® Heavy Duty Industrial/Commercial Grade Straight Blade Devices - Female Connector Body (15 Amp/125V), Model HBL5269C
$53.40

Build or repair industrial and commercial cord assemblies with this Hubbell Insulgrip heavy-duty female connector. Its insulated body, cord clamp and screw terminals support grounded connections for job-site equipment in dry indoor environments.

Specifications

Device Type Straight-blade female connector body, single outlet
Grade Heavy-duty industrial/commercial, Insulgrip
Electrical Rating 15 A, 125 VAC, single phase
NEMA Configuration 5-15R
Poles and Wires 2-pole, 3-wire grounding
Colour Black and white
Mounting and Termination Cord mounted; screw terminals
Cord Diameter Range 0.300–0.660 in. (7.6–16.8 mm)
Conductor Range #18–10 AWG, stranded copper wire only
Construction Insulated body; nylon housing, cord clamp and contact holder; clear polycarbonate terminal retainer
Contacts 0.040 in. (1.0 mm) brass
Hardware Nickel-plated steel assembly screws and terminal clamp; #8-32 brass multiple-drive terminal screws
Maximum Horsepower 0.5 hp
Current Interrupting Certified for current interrupting at full rated current
Dielectric Strength Withstands 2,000 V minimum
Environmental Suitability IP20; indoor dry locations unless protected by additional means
Operating Temperature -40°C minimum without impact; 75°C maximum continuous
Flammability UL 94 HB or better
Terminal Identification In accordance with UL 498 and CSA
Dimensions (L × W × H) 2.65 × 1.55 × 2.65 in.
Product Weight 0.15 lb
Package Contents One connector; reel not included
