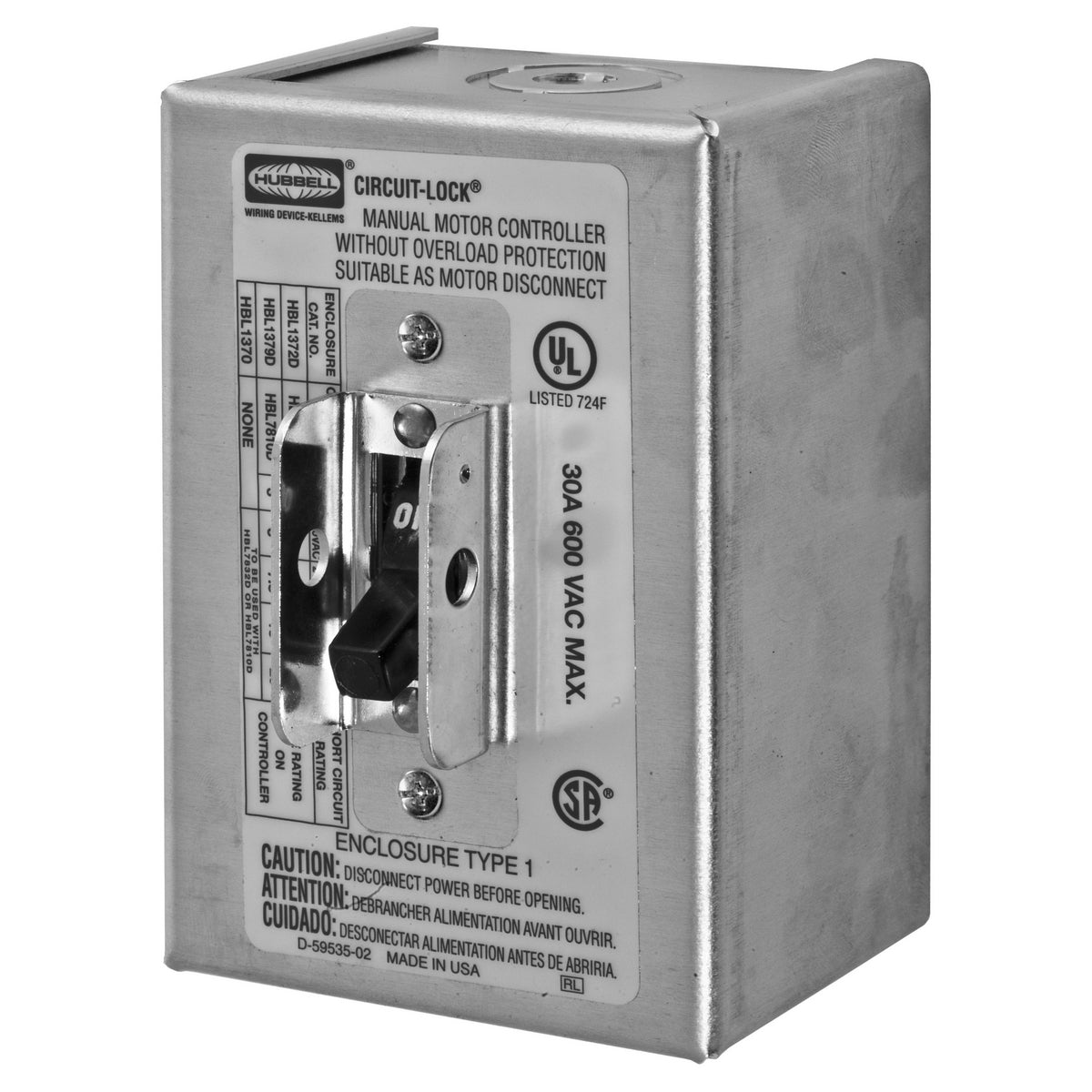

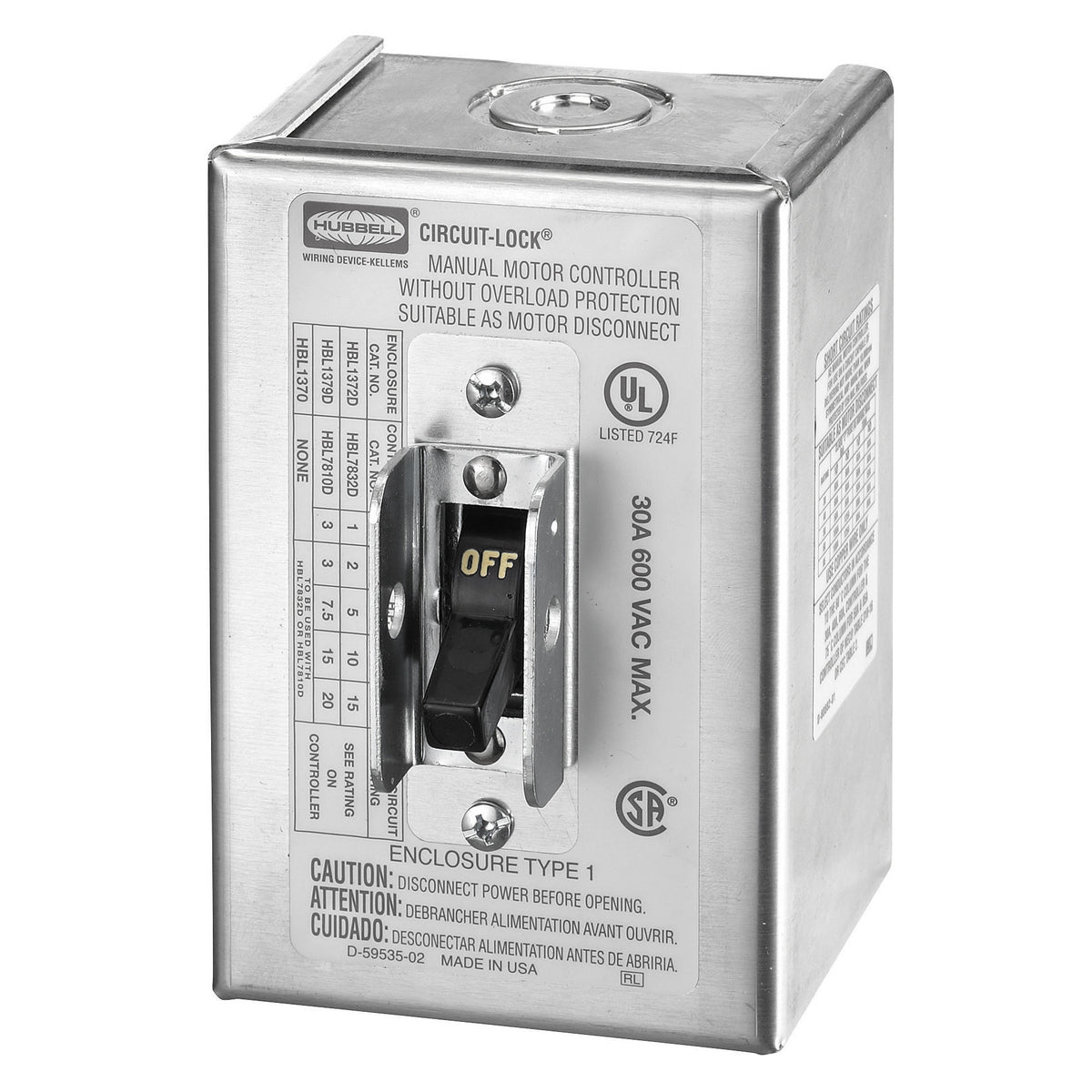

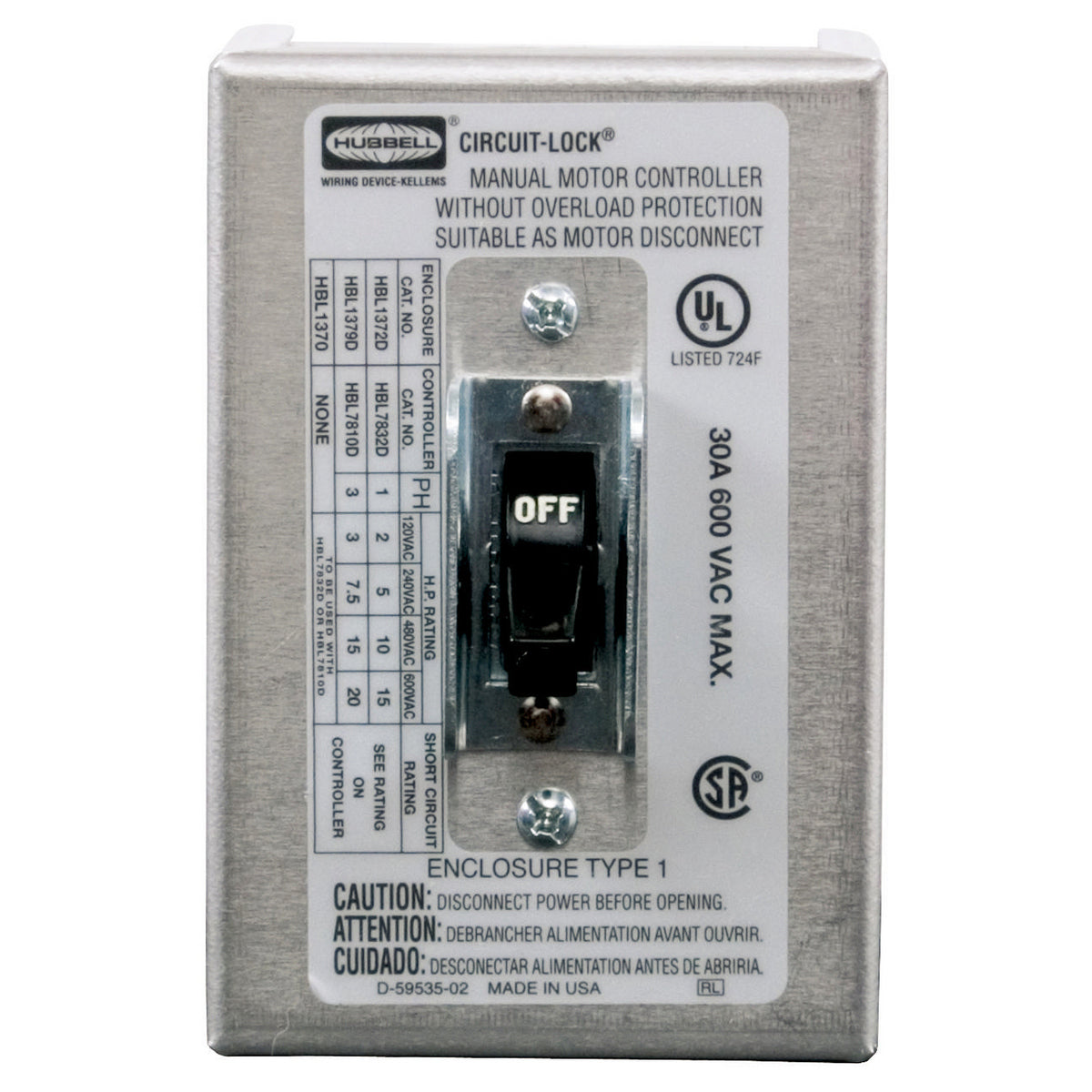

Hubbell Toggle Switch Motor Disconnect, 3-Pole, 30A 600V AC, Model HBL1379
Why Pros choose it
- 30A, 600V Three-Phase Motor Disconnect Switch
- Lockable OFF Position for Improved Worker Safety
- Durable aluminum NEMA 1 enclosure for indoor use
- Multiple Conduit Entry Points for Easier Installation
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
Ontario Pickup Locations
Pickup available Monday to Friday 6:30am - 4:30pm
Scarborough:
48 Milner Avenue, Scarborough,
ON M1S 3P8
(416) 291-0048
Mississauga:
3845 Nashua Dr, Mississauga,
ON L4V 1R3
The Hubbell Circuit-Lock® HBL1379 is a standard-duty, non-fused toggle switch motor disconnect designed for reliable manual isolation of three-phase motor loads in indoor commercial and industrial environments. Rated at 30 A, 600V AC, and up to 15 HP, it suits a wide range of applications including compressors, fans, pumps, and general-purpose machinery in control panels and equipment rooms. The all-aluminium NEMA 1 enclosure is pre-drilled for rear surface mounting, and wiring conduit knockouts (1/2" and 3/4" NPT) on the top, bottom, and back provide flexible wire entry to suit virtually any panel layout. The toggle can be locked in the OFF position, supporting OSHA lockout/tagout compliance — a critical safety feature for maintenance and service work. Screw-mount terminals and a straightforward toggle operator make installation and operation simple for electricians and maintenance personnel alike. RoHS compliant.
Specifications
| Part Number | HBL1379 |
| Series | Circuit-Lock® Non-Fused |
| Style | Standard Duty Toggle Switch Motor Disconnect |
| Number of Poles | 3 |
| Amperage Rating | 30 A |
| Voltage Rating | 600V AC |
| Maximum Horsepower | 15 HP |
| Enclosure Type | NEMA 1 (indoor dry) |
| Enclosure Material | Aluminium |
| Operator Type | Standard toggle |
| Conduit Knockouts | 1/2" and 3/4" NPT (top, bottom, back) |
| Mounting | Rear surface mount (pre-drilled), screw mounting |
| Lockout/Tagout | Lockable in OFF position (OSHA compliant) |
| Environmental Conditions | Indoor dry unless protected by additional means |
| RoHS Compliant | Yes (EU RoHS) |
| Manufacturer | Hubbell Wiring Device-Kellems |
