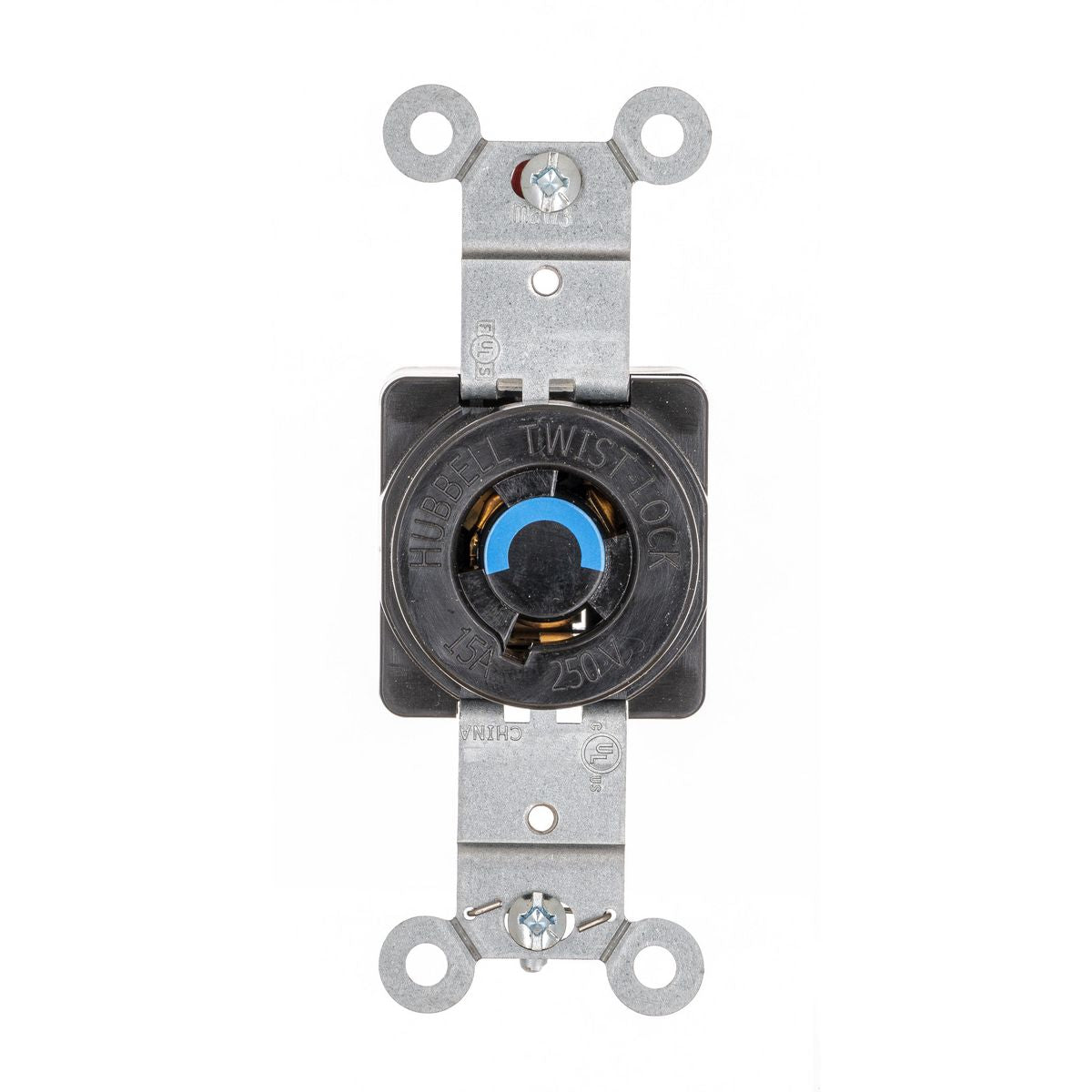

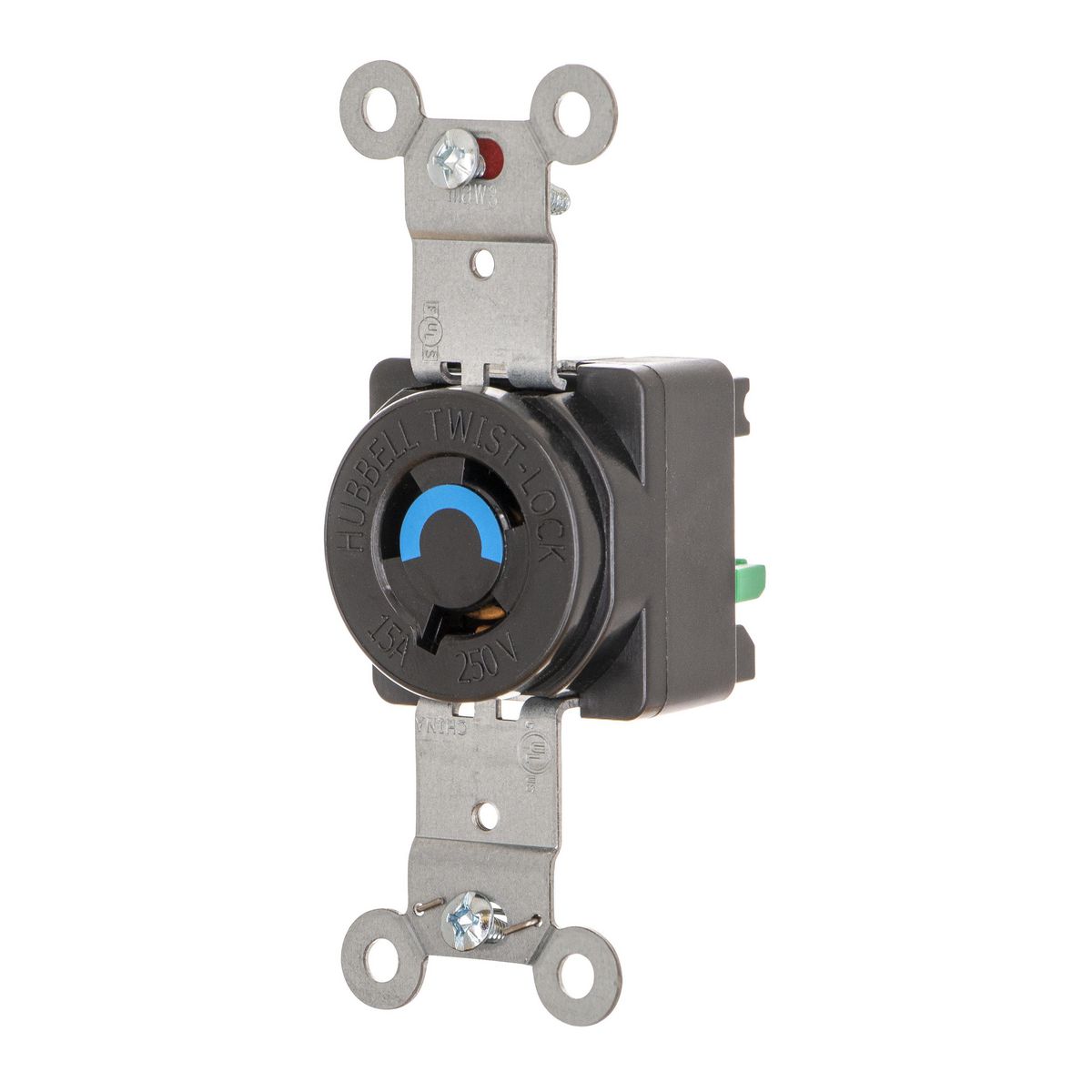

Hubbell 15 Amp 250V EdgeConnect Twist-Lock Flush Receptacle, Model HBL4560ST
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.

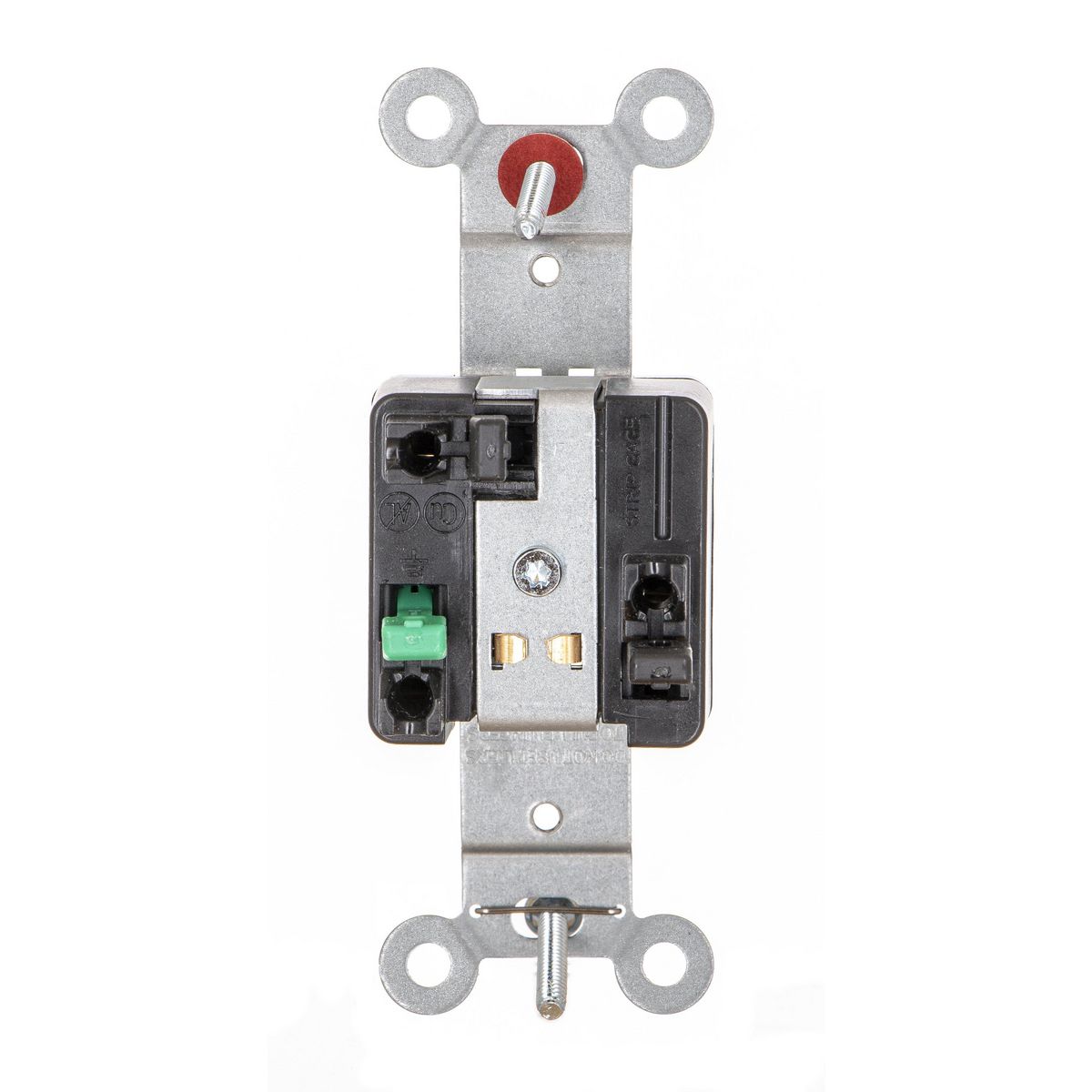

This Hubbell EdgeConnect™ Twist-Lock® single receptacle simplifies industrial wiring with screwless terminals that require no screwdriver or torque wrench for wire termination. Funnel-shaped wire entries help guide conductors into place, while spring termination eliminates strand relaxation. Its 15A, 250V grounding configuration supports industrial power connections on the job site.
Specifications
| Product Type | Single locking receptacle |
| Application | Industrial |
| Series | EdgeConnect™ Twist-Lock® |
| Current Rating | 15 A |
| Voltage Rating | 250 VAC |
| NEMA Configuration | L6-15R |
| Poles / Wires | 2-pole, 3-wire grounding |
| Phase | Single phase |
| Termination | EdgeConnect™ screwless spring termination |
| Material | Nylon |
| Colour | Black |
| Mounting | Screw mount |
| Size | Standard sized product |
| Environmental Suitability | IP20 |
| Temperature Rating | Maximum continuous 75°C; minimum -40°C without impact |
| Dielectric Strength | Withstands 2,000 V minimum |
| Standards and Ratings | Listed to UL 498; Fed. Spec. W-C-596; certified to CSA C22.2 No. 42; WR rating |
| Weight | 0.15 lb |
| UPC | 783585719658 |
