Hubbell 15 Amp 125V EdgeConnect Twist-Lock Flush Receptacle, Model HBL4710ST
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.

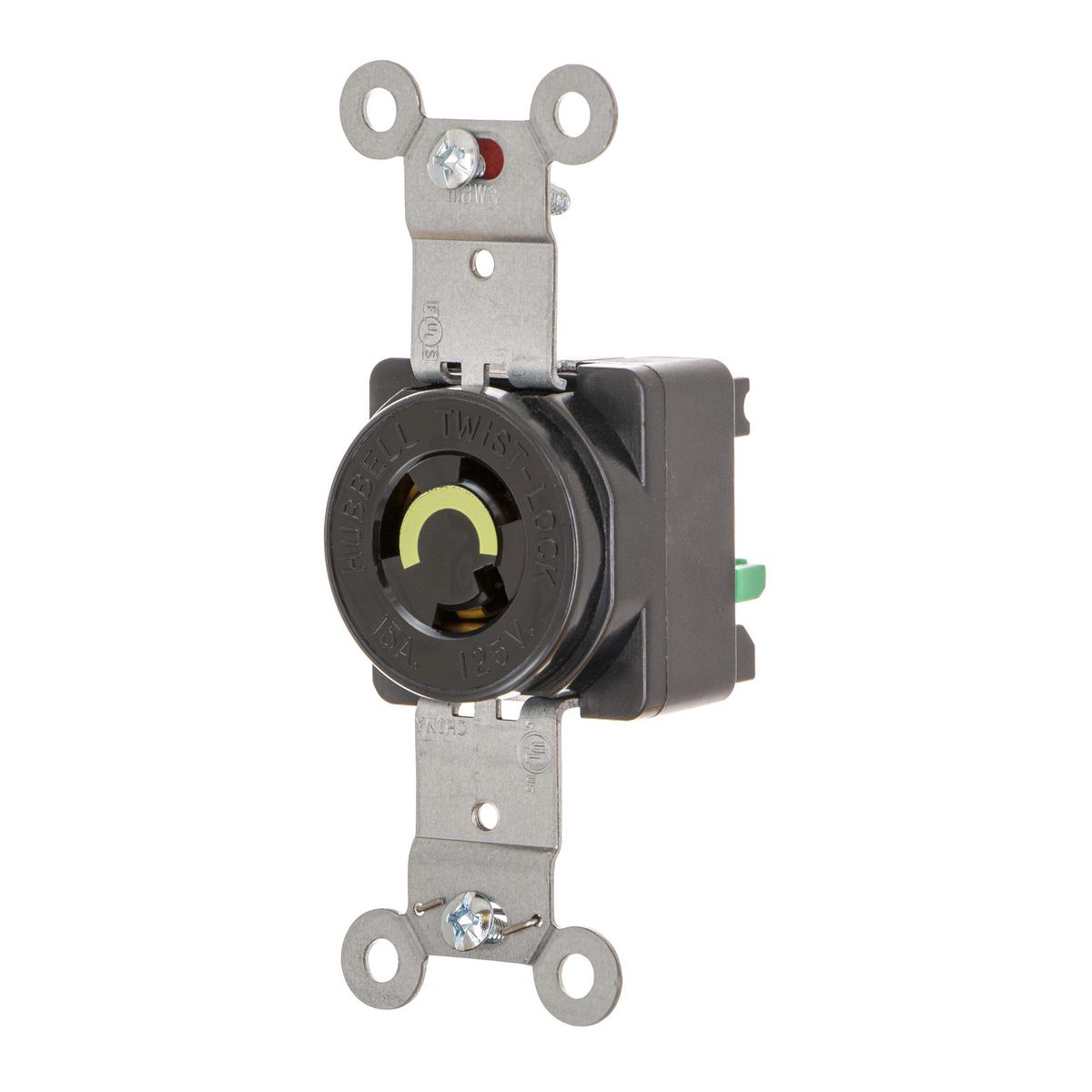

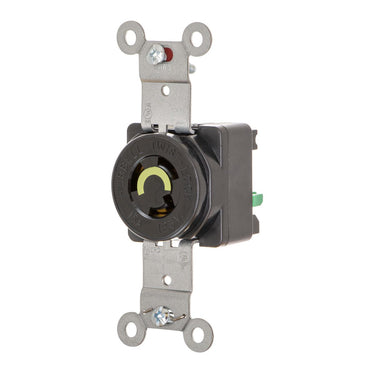

This Hubbell EdgeConnect™ Twist-Lock® flush receptacle provides a locking connection for industrial power applications. Screwless spring termination speeds up installation without a screwdriver or torque wrench, while funnel-shaped wire entries simplify conductor insertion. The spring termination system eliminates strand relaxation for a long-lasting connection.
Specifications
| Product Type | Industrial locking flush receptacle |
| Series | EdgeConnect™ Twist-Lock® |
| Application | Industrial |
| Current Rating | 15 A |
| Voltage Rating | 125 V AC |
| NEMA Configuration | L5-15R |
| Poles and Wires | 2-pole, 3-wire grounding |
| Phase | Single phase |
| Termination | EdgeConnect™ screwless spring termination with funnel-shaped wire entry |
| Mounting | Screw mount |
| Material | Nylon |
| Colour | Black |
| Size | Standard sized product |
| Environmental Suitability | IP20 |
| Temperature Rating | Maximum continuous: 75°C; minimum: -40°C without impact |
| Dielectric Strength | Withstands 2,000 V minimum |
| Product Weight | 0.15 lb |
| Standards and Ratings | Listed to UL 498; Fed. Spec. W-C-596; certified to CSA C22.2 No. 42; WR rating |
| UPC | 783585719634 |
