HUBBEL (TRADESELECT)
MFR #54151LDBAR
UPC #626463040362

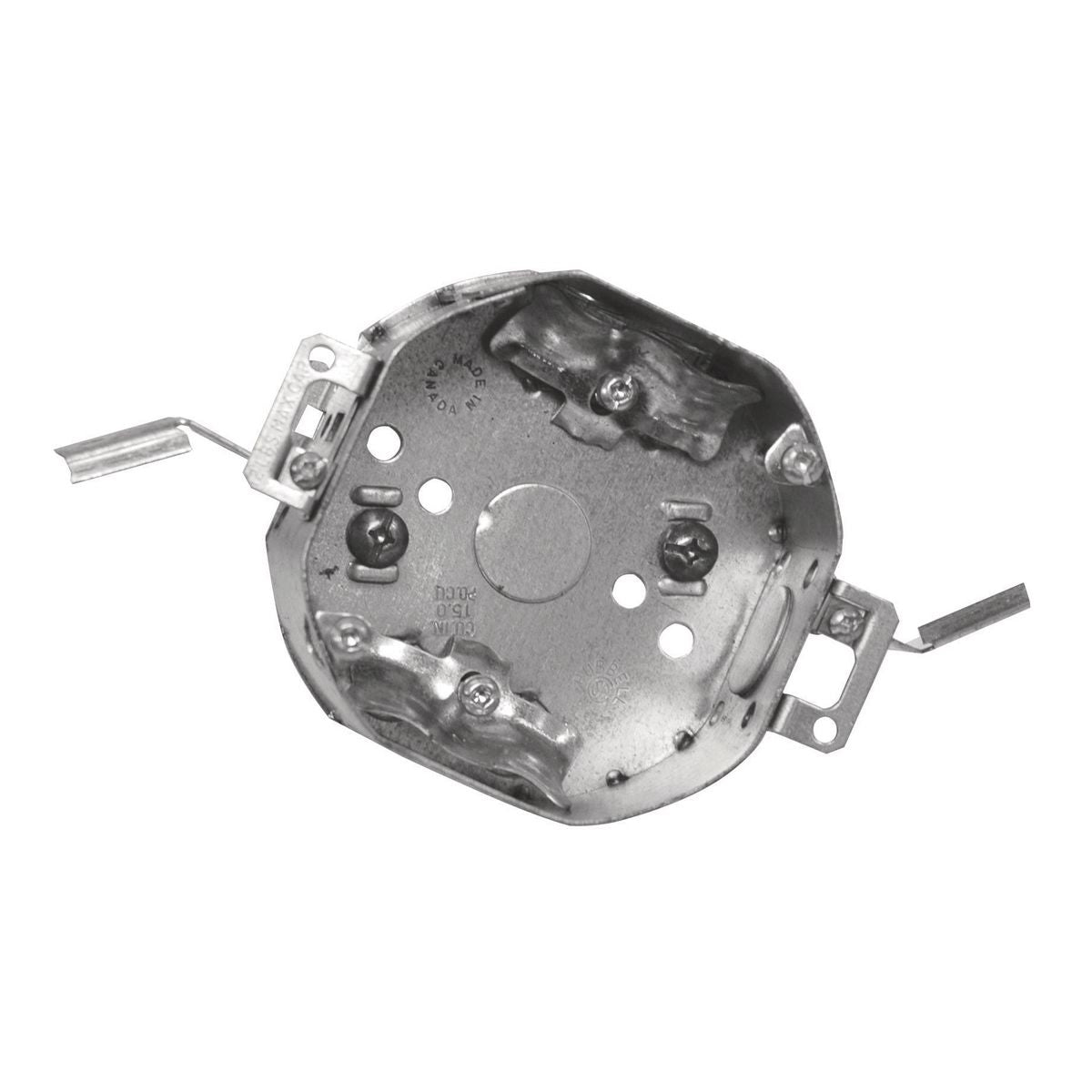

Hubbell 4" Octagon Box (1 ½" Deep, Swing Arm Rework Bracket, NMD90 Pryouts) - Pack of 40, Model 54151LDBAR
$18.05
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories
This steel octagon box provides a wiring enclosure for ceiling or wall lighting installations, with swing-arm rework brackets for renovation applications. Flush ears, a raised ground screw and an NMD clamp support wiring installation, while the 15 cu. in. capacity accommodates connections in a 1-1/2 in. deep box.
Specifications
| Box Type | Octagonal, 1-gang |
| Box Size | 4 in. |
| Depth | 1-1/2 in. |
| Capacity | 15 cu. in. |
| Material and Construction | Welded steel |
| Bracket Type | Type D swing-arm rework bracket |
| Bracket Setback | 0.4375 (unit not specified) |
| Mounting Ears | Flush |
| Grounding | Raised ground screw |
| Knockouts | 1 × 1/2 in.; bottom knockout: 1 × 1/2 in. |
| Cable Entry | NMD clamp and cable pryouts |
| Wiring System | NMD90; non-metallic sheathed (NMD), 14/2–8/3 |
| Ends Cable | 8 |
| Gangable | No |
| Weight | 0.56 lb |
| Certification | CSA |
| Location Rating | Dry location |
| Colour | Silver |
| UPC | 626463040362 |
