Hubbell 4" Concrete Ring (4" Deep, 48 cu. in., ½" & ¾" KO) - Pack of 10, Model 54571
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.

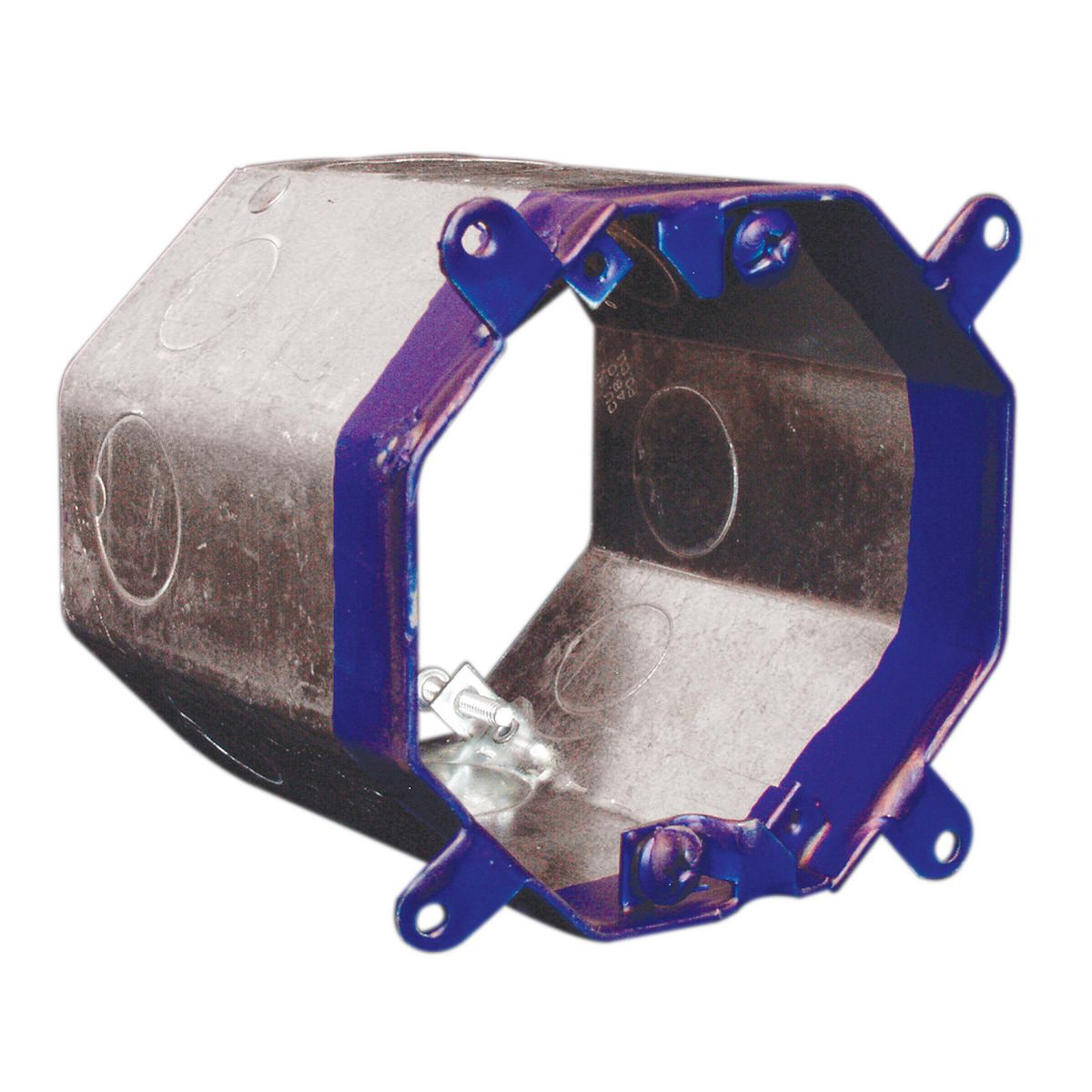

Built for poured concrete decks in high-rise construction, these Hubbell steel concrete rings install on wooden or steel forms and sit flush with the concrete after form removal. Flat sides provide reliable locknut contact, while waxed fixture ears help keep concrete out of the threads. External nailing ears and a removable top cover support installation and access before the pour.
Specifications
| Product Type | Concrete ring / box |
| Application | Poured concrete decks (floors) in high-rise construction; installs on wooden or steel concrete forms |
| Size | 4 in. |
| Actual Depth | 4 in. |
| Capacity | 48 cu. in. |
| Material | Steel |
| Construction | Welded |
| Side Knockouts | 4 × 1/2 in., 2 × 3/4 in., 2 × 1 in. |
| Raised Ground Screw | Yes |
| Wiring System | Conduit |
| Bracket Type | No bracket |
| Gangable | No |
| Plaster Ears | No |
| Fixture Ears | Internal, waxed to protect threads from concrete |
| Mounting Ears | External ears for nailing to wooden forms |
| Top Cover | Removable for before-pour work |
| Weight | 1.04 lb |
| Certification | CSA certified |
| Pack Quantity | 10 |
| UPC | 626463002193 |
