Hubbell 4" Concrete Ring (3 ½" Deep, 42 cu. in., ½" & ¾" KO) - Pack of 20, Model 54561
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.

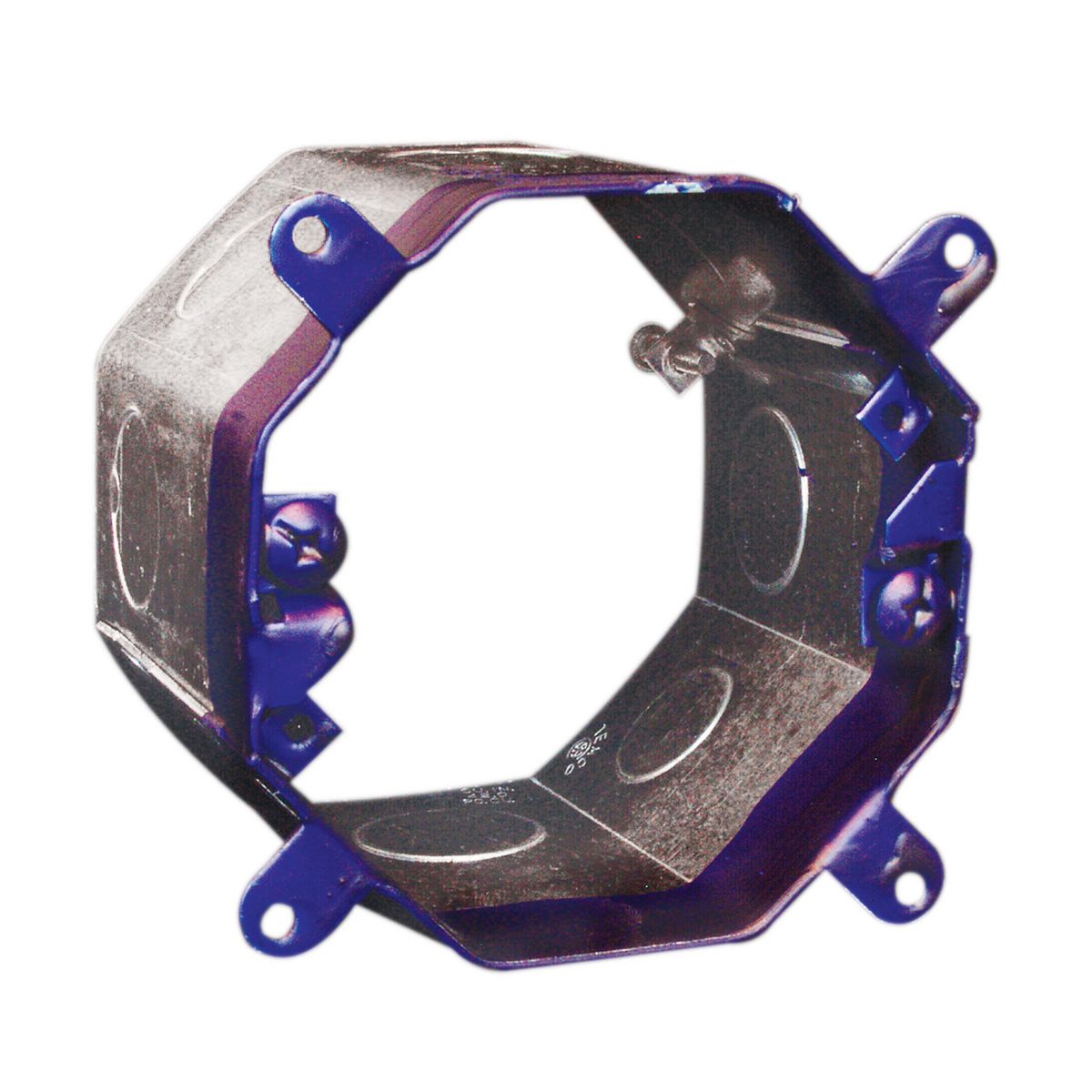

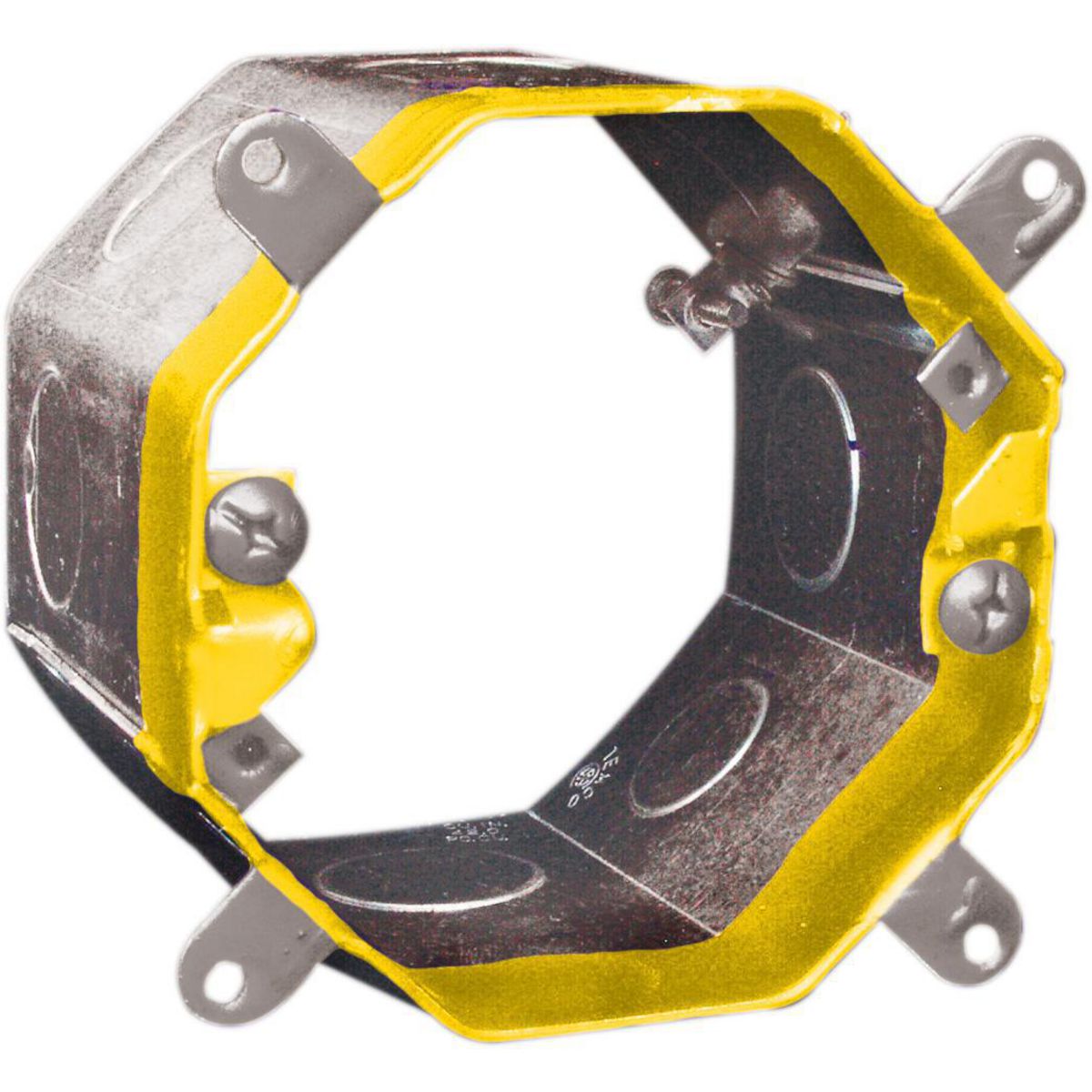

Built for poured-deck electrical installations in high-rise construction, this steel concrete ring sits flush with the concrete once wooden or steel forms are removed. Flat sides provide excellent locknut contact, while external nailing ears and a removable top cover support installation and before-pour work. Waxed internal fixture ears help keep concrete out of the threads for fixture mounting.
Specifications
| Product Type | Concrete extension ring / box |
| Nominal Size | 4 in. |
| Depth | 3-1/2 in. |
| Capacity | 42 cu. in. |
| Material | Steel |
| Construction | Welded |
| Colour | Silver |
| Side Knockouts | 4 × 1/2 in. and 4 × 3/4 in. |
| Raised Ground Screw | Yes |
| Wiring System | Conduit |
| Application | Poured concrete decks (floors) in high-rise construction; installation on wooden or steel concrete forms |
| Mounting Features | External nailing ears and waxed internal fixture ears |
| Top Cover | Removable for before-pour work |
| Bracket Type | No bracket |
| Gangable | No |
| Plaster Ears | No |
| Location Rating | Dry location |
| Certification | CSA certified |
| Listed Weight | 0.95 lb |
| Pack Quantity | 20 |
| UPC | 626463002162 |
