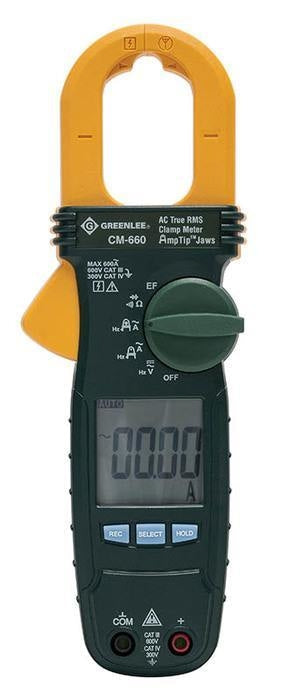

Greenlee 600 Amp AC True RMS Clamp Meter, Model CM-660
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
The Greenlee 600 Amp AC True RMS Clamp Meter is designed for electricians who require accurate current measurements on variable frequency drives, motor circuits, and standard AC installations on the job site. Its AmpTip™ technology delivers enhanced precision on small-gauge conductors and low-current loads, while dual voltage detection modes — non-contact and single test lead — accelerate panel diagnostics without additional test equipment. Rated CAT III 600V / CAT IV 300V and C/US UL Listed, it handles AC current, AC/DC voltage, resistance, frequency, continuity, and diode testing in a single compact instrument.
Specifications
| Current Measurement | 60 A, 600 A AC |
| Voltage Measurement | 600 V AC/DC |
| True RMS | AC True RMS |
| Display | LCD, 6000 count |
| Jaw Opening | 1.18 in (30 mm) |
| Frequency Rating | Voltage and AmpTip™ current: 50/60 Hz; High current: 50–400 Hz |
| Resistance Measurement | 600 Ω, 6 kΩ, 60 kΩ |
| Measurement Category | CAT III 600V, CAT IV 300V |
| Standards & Certifications | CAT III, C/US UL Listed, CE |
| Included Accessories | Test leads, carrying case, 2 × 1.5V AAA batteries |
| Replacement Parts | TSG-3 test leads; TC-10 carrying case |
