2x4 Forum Essential LED Panel Light, LEDB-24-WH
Pickup available at IES - Mississauga
Usually ready in 4 hours

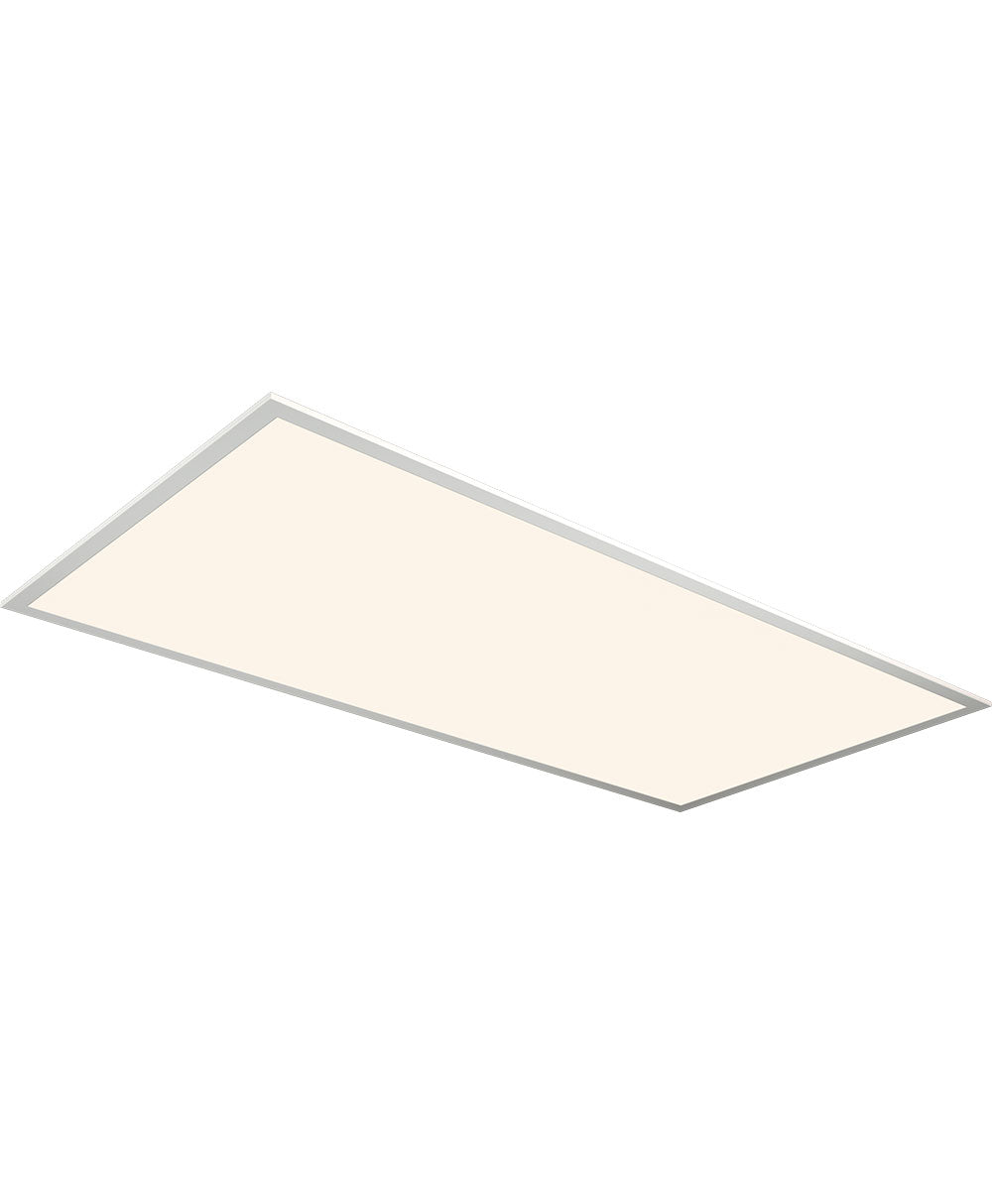

The Liteline Forum Essential LED Back-Lit Panel Light is a high-performance, commercial-grade flat panel designed for T-bar ceiling grids in offices, schools, healthcare facilities, and retail environments. Its lightweight aluminium frame is engineered to prevent light leakage, delivering uniform, low-glare illumination across the entire panel surface — eliminating the hot spots and shadows common with edge-lit alternatives. On the job site, installation is straightforward: the panel drops into standard 2’×4’ T-bar grids, and surface-mount bracket kits are available for hard-lid ceilings. The user-selectable CCT switch (3500K, 4000K, 5000K) and wattage selection let the electrician or facility manager configure the fixture on-site without re-ordering. The 0–10V dimmable, multi-voltage driver (120V / 277V / 347V) simplifies specification across Canadian commercial projects, and at 125 Lm/W the panel meets DLC 5.1 Premium requirements — supporting utility rebate applications. ETL-listed with a Class 2 driver and four ½" knockouts for branch wiring, this panel is built for clean, code-compliant installations.
Specifications
| Brand | Liteline |
| Series | Forum Essential |
| Part Number | LEDB-24-WH |
| Type | LED Back-Lit Flat Panel |
| Panel Size | 2 ft × 4 ft |
| Lumens | Up to 6200 lm |
| Efficacy | 125 Lm/W |
| Colour Temperature | User Selectable: 3500 K / 4000 K / 5000 K |
| Wattage | User Selectable |
| Beam Spread | 110° |
| Dimming | 100%–10%, 0–10V Compatible |
| Flicker Rate | <5% |
| Input Voltage | 120 V / 277 V / 347 V, 60 Hz |
| Power Factor | 0.95 Min |
| THD | <20% |
| Driver | ETL Listed Class 2, Four ½" Knockouts (2 In / 2 Out), #12 AWG |
| Frame Material | Lightweight Aluminium |
| Mounting | T-Bar Grid (1×4, 2×2, 2×4); Surface Mount with Optional Bracket Kit |
| Location Rating | Damp Location (Indoor Only) |
| Insulation Contact | I.C. Rated |
| DLC | DLC 5.1 Qualified |
| Operating Temperature | -20°C – 40°C (-4°F – 104°F) |
| Colour / Finish | White |
