Brady Portable Label Printer Kit, Model M210-KIT
Brady Portable Label Printer Kit, Model M210-KIT
Pickup available at IES - Mississauga
Usually ready in 4 hours
The Brady M210 Portable Label Printer Kit is the complete job-site labelling solution for professional electricians, contractors, and data/telecom technicians who need to hit the ground running. Everything you need is in the box — printer, hard case, rechargeable lithium-ion battery, AC adapter/charger, and a roll of nylon cloth patch panel and wire & cable labels. Whether you're marking breaker boxes, patch panels, wire runs, terminal blocks, or warehouse racking, the M210 produces pre-sized, professional labels at the push of a button with no laptop required. Built to survive the rigours of daily site use with resistance to 6-foot drops and a rugged ABC keypad, this stand-alone kit is ready to work as hard as you do.
Specifications
| Trade Name | M210 |
| Brand | Brady® |
| UOM | Kit |
| Dimensions (H x W x D) | 9.5 in x 4.5 in x 2.5 in |
| Display Size | 2 x 1 in |
| Display Type | Monocolor LCD Screen |
| Weight | 1.653 lb |
| Colour | Black, Yellow |
| Device Connectivity | Stand-alone |
| Keyboard Type | ABC |
| Memory | 16 MB (2 MB available for storage, stores 12 labels) |
| Number of Symbols | 193 |
| Built-In Label Wizards | Flags, Patch Panel, Terminal Block, Wire Wrap |
| Applications | Data and Telecommunications Labelling, Electrical Labelling, General Identification, Lean and 5S Labelling, Warehouse Marking, Wire and Cable Labelling |
| Cutter Type | Single Hand Manual Actuate, Straight Cut, With Label Retention |
| Drop Resistance | Resistant to 6-foot drops |
| Battery Type | Optional AA Battery, Rechargeable Lithium-ion Battery |
| Battery mAh Rating | 3350 mAh |
| Battery Shipped | Yes — shipped in box, not installed |
| Power Supply Voltage | 110 – 240 V |
| Recharge Time | 2.5 hours |
| Auto Shut-Off | 10 minutes |
| Print Technology | Thermal Transfer |
| Print Resolution | 203 dpi |
| Maximum Print Speed | 0.393 in/s |
| Maximum Label/Tape Width | 0.75 in |
| Maximum Print Width | 0.63 in |
| Minimum Label Length | 0.915 in |
| Maximum Printed Label Length | 36 in |
| Maximum Labels per Day | 100 |
| Colour Printing Capability | Single Colour |
| Font Sizes | 6 – 40 pt |
| Font Styles | Brady Standard Font |
| Barcode Symbologies – 2D | Data Matrix, QR Code |
| Barcode Symbologies – Linear | Code 128, Code 39 |
| Calibration | Automated through Smart Cell |
| Compatible Media | M21- series cartridges |

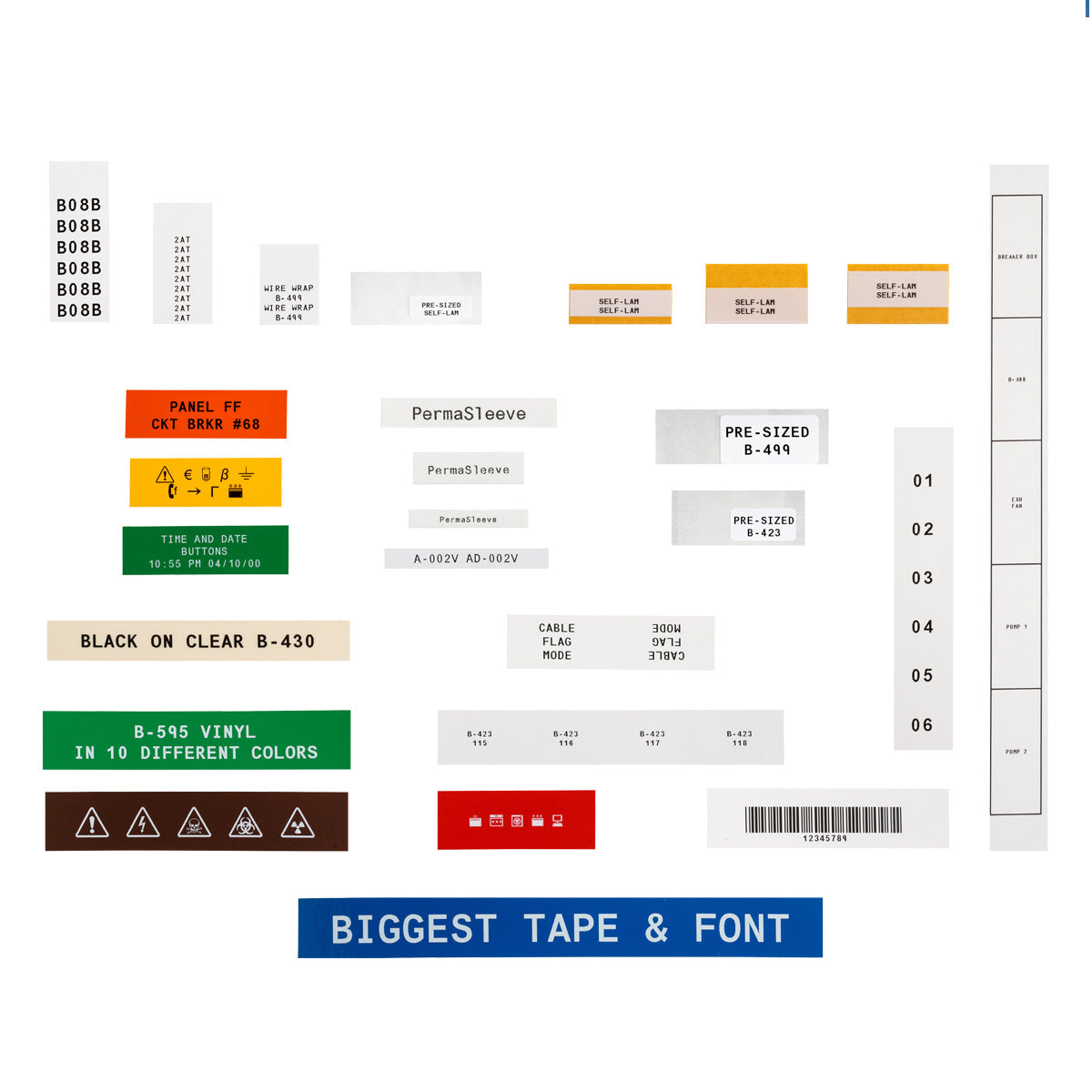

| Label Material Types | Heat-shrink Polyolefin, Nylon Cloth, Paper, Polyester, Polypropylene, Self-laminating Polyester, Self-laminating Vinyl, Vinyl |
| Materials Supported | Continuous, Die-cut |
| Languages Available | Bahasa (Indonesian), Bahasa Malay, Chinese (Traditional and Simplified), English (US), Thai, Vietnamese |
| Warranty | 2 Years |
| Country of Origin | Malaysia |
| RoHS Compliance | Compliant with Directive 2011/65/EU and 2015/863 |
| HTS Code | 8443.32.1050 |

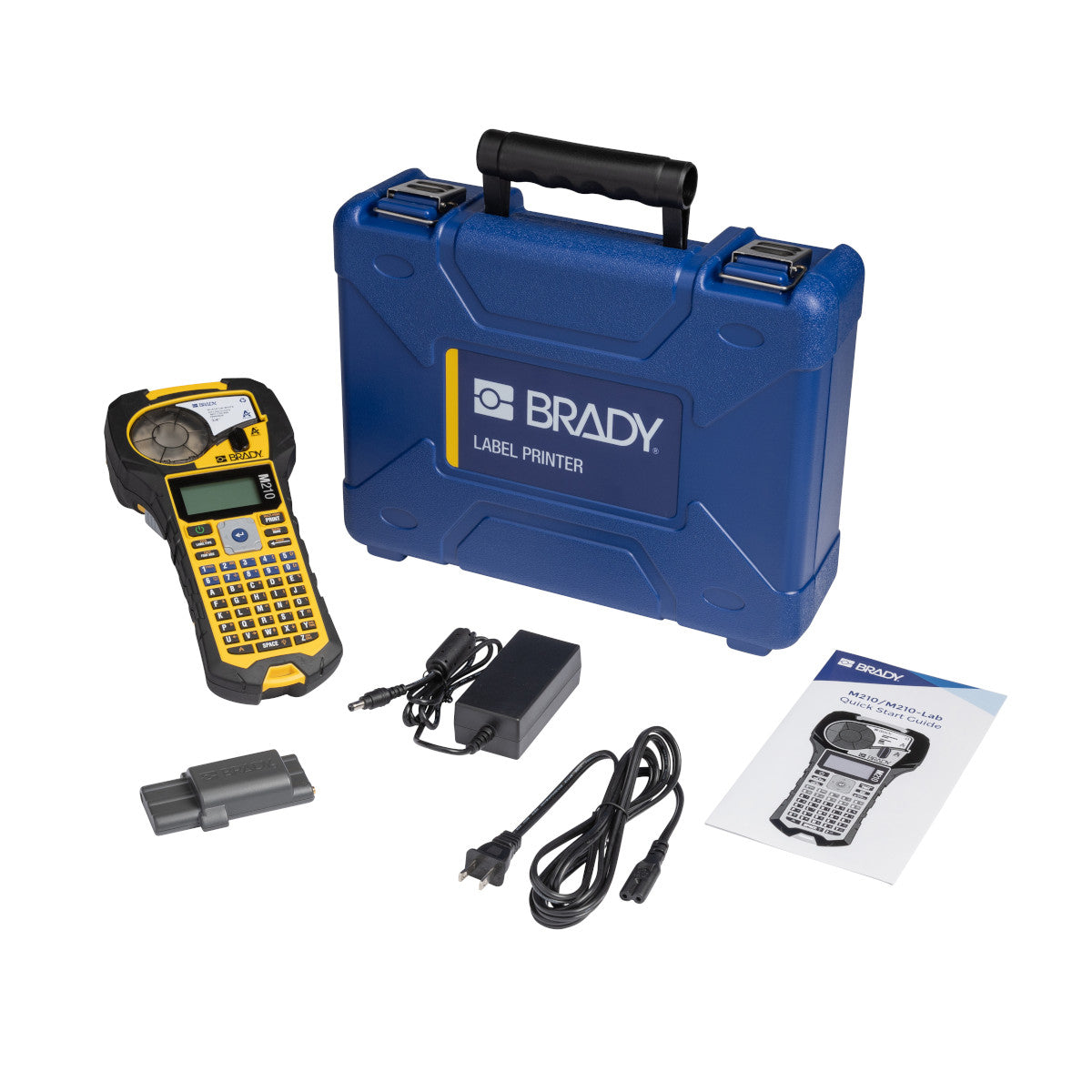

| Includes | (1) M210 Label Printer, (1) AC Adapter/Battery Charger (M210-AC), (1) Hard Case (M210-HC), (1) Li-ion Rechargeable Battery (M210-BATTERY), (1) M21-750-499 Nylon Cloth Patch Panel and Wire & Cable Labels, (1) Replacement Power Cord – North America, (1) Quick Start Guide |
