Vinyl Lock Fork Terminal (18-14 AWG), Model 14RB-8FL
$89.80
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories

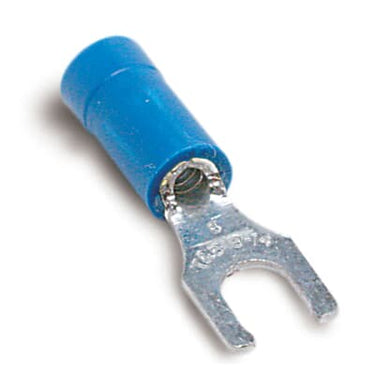

Make secure wire connections with this vinyl-insulated locking fork terminal, designed to install like a fork terminal while holding securely like a ring terminal. Its blue insulation identifies the 18–14 AWG wire range, making it well suited to control panels, equipment wiring, maintenance, and other job-site electrical work.
Specifications
| Product Type | Vinyl-insulated locking fork terminal |
| Wire Range | 18–14 AWG |
| Bolt Hole | #8 |
| Voltage Rating | 600 V |
| Material | Copper |
| Finish | Tin plated |
| Insulation | Vinyl |
| Colour | Blue |
| Maximum Insulation Diameter | 0.170 in. |
| Length | 0.97 in. |
| Width | 0.29 in. |
| Standard | UL E9809 |
| Compatible Application Tools | ERG4001, WT145C, WT2000, WT112M |
