3M CANADA
MFR #ITCSN-2000-48-BULK
UPC #7000132163

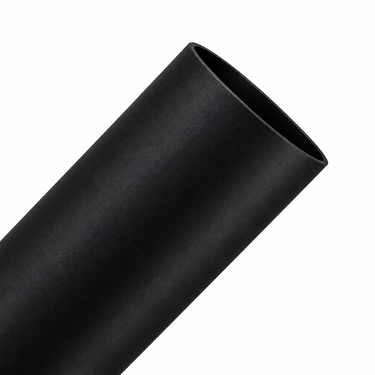

3M Heat Shrink Tubing – 2.0 in Diameter, 48 in Bulk
$112.55
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories
Protect electrical splices, connections and terminations with this heavy-wall, adhesive-lined heat shrink tubing. Split-resistant cross-linked polyolefin and factory-applied hot-melt adhesive provide mechanical and environmental protection for secondary splices, direct-buried installations and submersible repairs. The 48-inch sleeve can be cut to length for the connection being protected.
Specifications
| Product Type | Heavy-wall heat shrink cable sleeve |
| Material | Cross-linked polyolefin |
| Colour | Black |
| Minimum Expanded Inside Diameter | 2 in |
| Inside Diameter After Shrinking | 0.65 in |
| Overall Length | 48 in (1219 mm) |
| Adhesive Lining | Factory-applied hot-melt adhesive/sealant |
| Conductor Size Range | 250–750 kcmil; listed metric range: 120–400 mm² |
| Voltage Rating | UL rated to 600 V (shall not exceed 1 kV) |
| Dielectric Strength | 500 V/mil |
| Tensile Strength | 2400 psi |
| Direct Burial Suitable | Yes |
| Non-Corrosive | Yes |
| Flame Retardant | No |
| Certifications and Compliance | UL Listed; CSA Certified; RoHS 2011/65/EU compliant |
| Military Specification | AMS-DTL-23053/15,Class 1 |
| UL File Number | E-102356 |
| Manufacturer Case Quantity | 20 |
