3M CANADA
MFR #FP301X-1/16X48CL
UPC #7000133630

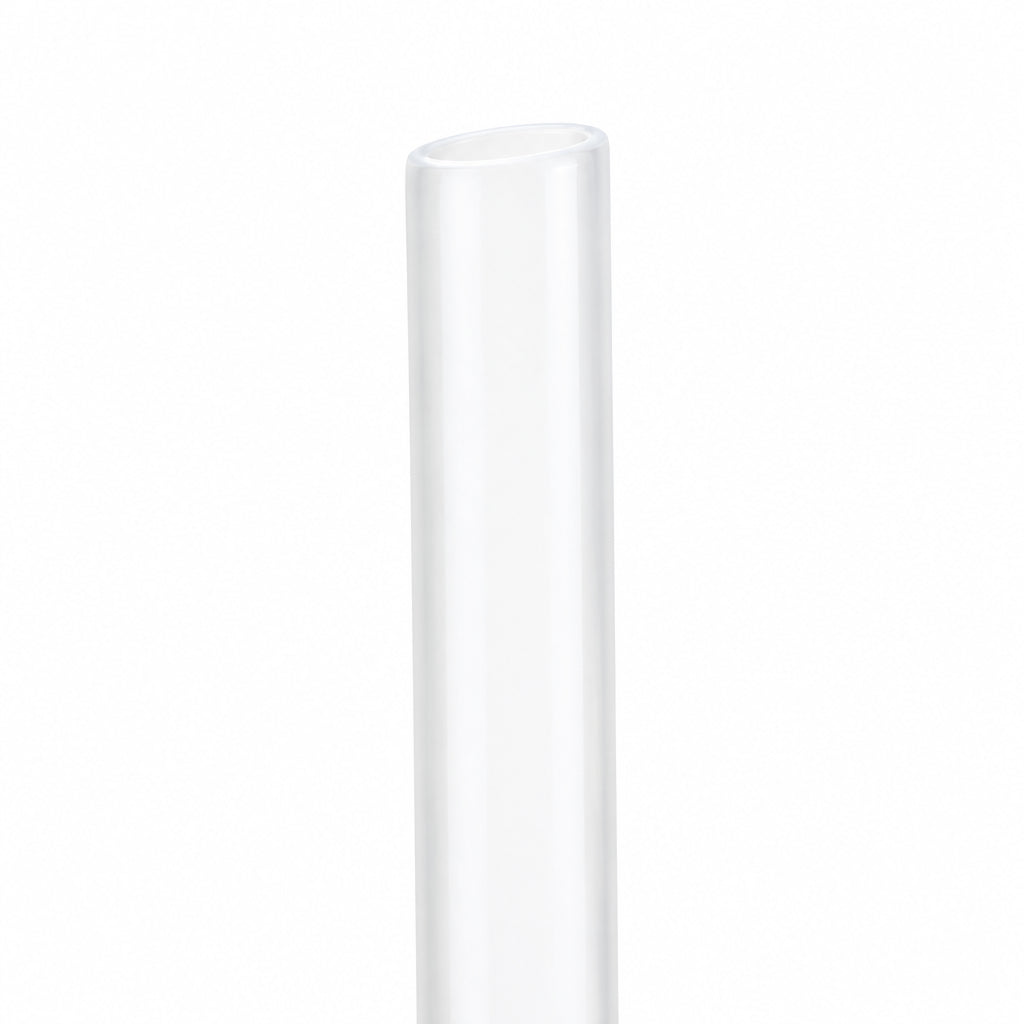

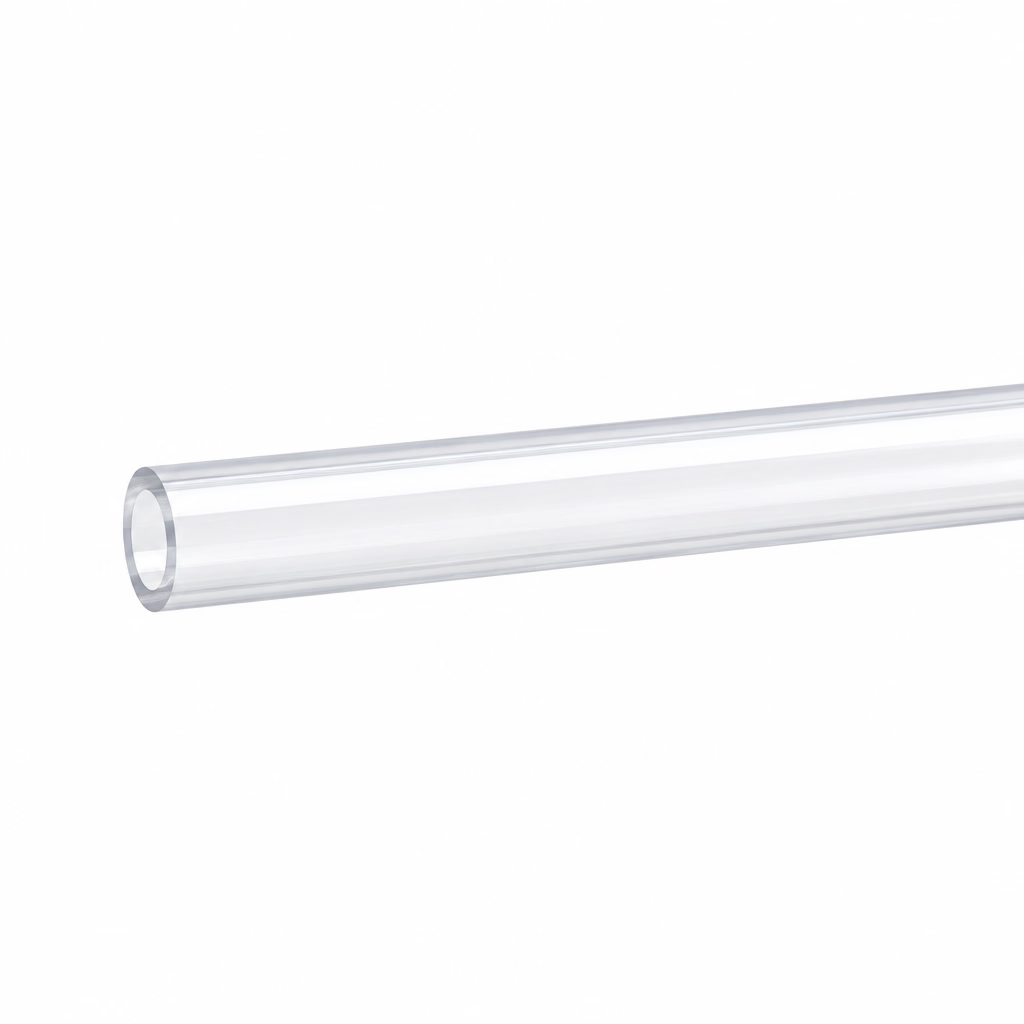

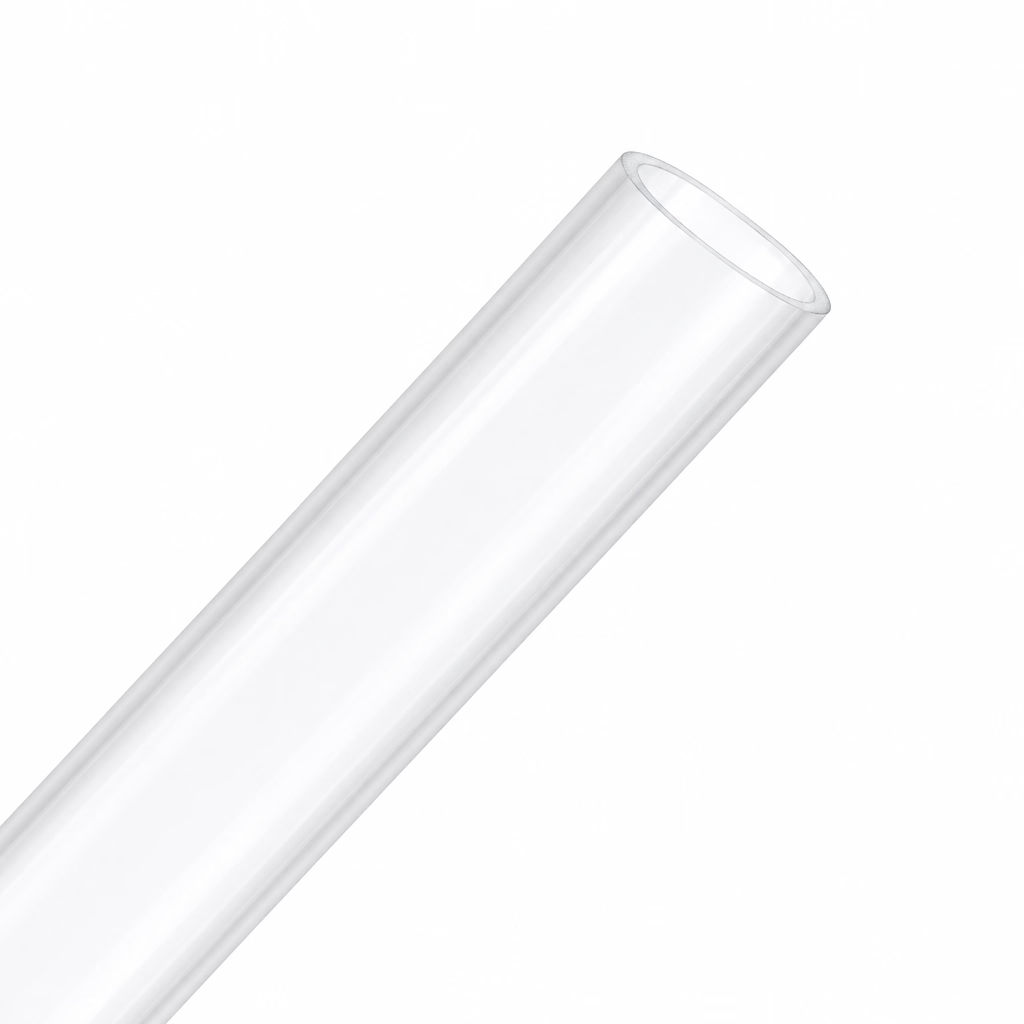

3M Clear Heat Shrink Tubing – 1/16 in x 48 in
$6.43
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories
Insulate small-wire splices and terminations while keeping connections visible with this clear, thin-wall heat shrink tubing from 3M. Flexible, split-resistant polyolefin provides a snug 2:1 shrink fit for wire bundling, harness covering and wire identification during installation and maintenance.
Specifications
| Tubing Type | Single-wall, thin-wall heat shrink tubing |
| Material | Polyolefin |
| Colour | Clear / transparent |
| Nominal Size | 1/16 in |
| Length | 48 in (1220 mm) |
| Minimum Expanded Inside Diameter | 0.063 in (1.6 mm) |
| Inside Diameter After Shrinking | 0.031 in (0.787 mm) |
| Shrink Ratio | 2:1 |
| Minimum Shrink Temperature | 100°C |
| Operating Temperature Range | -55°C to +135°C (-67°F to 275°F) |
| Short-Term Temperature Resistance | Up to 300°C (572°F) for short periods |
| Voltage Rating | 600 V maximum at 125°C for UL recognition and CSA certification |
| Adhesive Lining | None |
| Flame Retardant | No |
| Non-Corrosive | Yes |
| Tensile Strength | 2400 psi |
| Military Specification | SAE-AMS-DTL-23053/5, Class 2 |
| Approvals | UL Recognized, File E-39100; CSA Certified, CSA LR38227 |
| Applications | Electrical insulation over cable splices and terminations; wire harness covering, wire marking, wire bundling and component packaging |
| Units per Case | 25 |
