LITELINE
MFR #LEDB-22-WH
UPC #662243214219
2x2 Forum Essential LED Panel Light, LEDB-22-WH
$64.47
/
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours

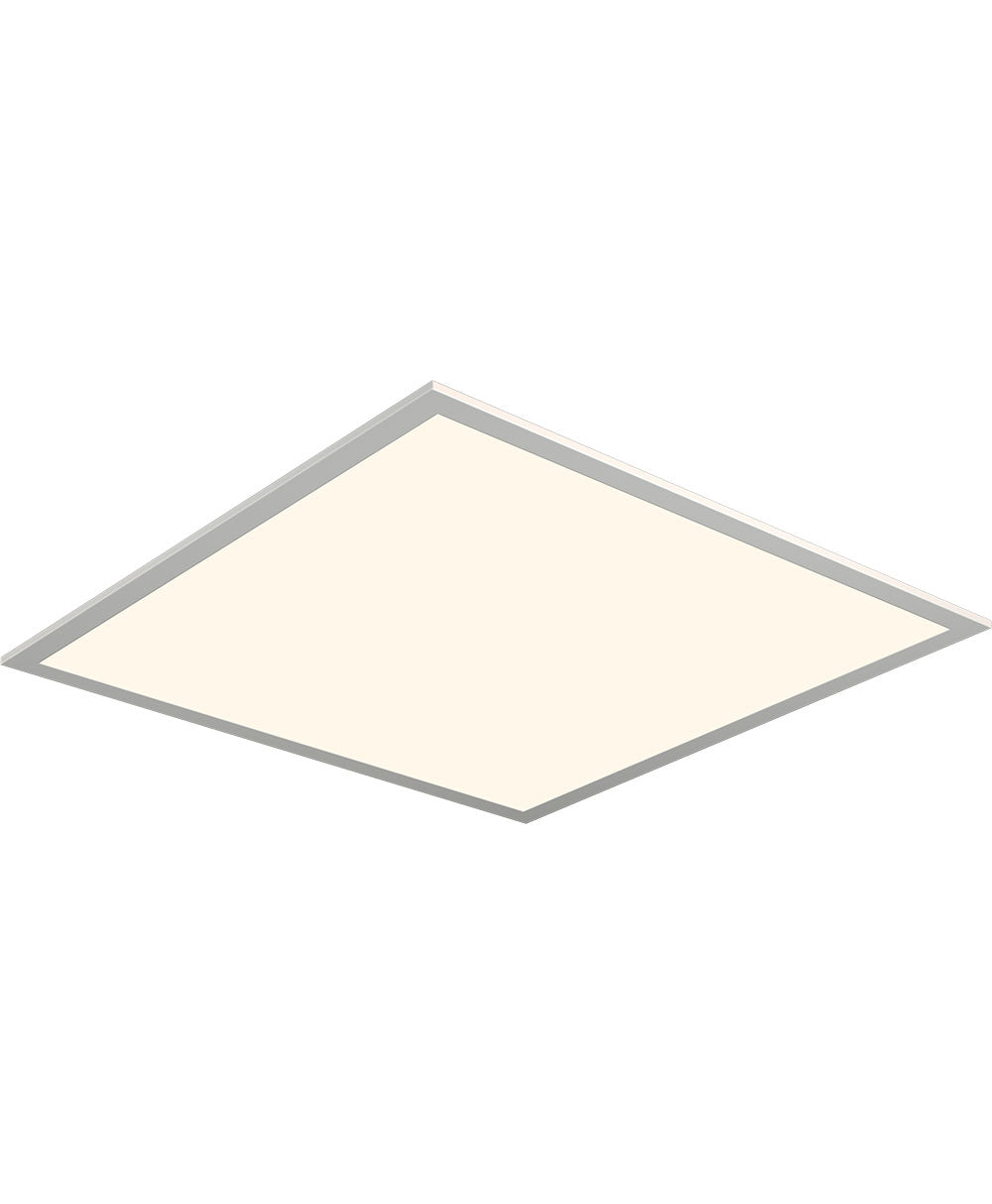

The Liteline Forum Essential LED Back-lit Panel Light (LEDB-22-WH) delivers uniform, low-glare illumination across the full panel surface, making it an ideal choice for commercial offices, retail spaces, and institutional facilities. Its lightweight aluminium frame prevents light leakage while producing up to 6,200 lumens with user-selectable colour temperature and wattage for maximum job-site flexibility. DLC 5.1 qualified and ETL listed, this fixture meets the performance and compliance standards demanded by professional electrical contractors.
Specifications
| Part Number | LEDB-22-WH |
| Lumens | Up to 6,200 lm |
| Colour Temperature | 3500 K / 4000 K / 5000 K (user selectable) |
| Wattage | User selectable |
| Efficacy | 125 lm/W |
| Beam Spread | 110° |
| Dimming | 100%–10% via 0-10V dimmer (industry standard compatible) |
| Flicker Rate | <5% |
| Voltage Input | 120V / 277V / 347V, 60 Hz |
| Power Factor | ≥0.95 |
| THD | <20% |
| Driver | ETL listed Class 2; four ½" trade knockouts (#12 AWG, 2 in / 2 out) |
| Mounting | T-bar ceiling (1×4, 2×2, 2×4); surface mount with optional bracket kit |
| Operating Temperature | -20°C to 40°C (-4°F to 104°F) |
| Environment | Indoor use only; suitable for damp locations; I.C. rated |
| Certifications | DLC 5.1, ETL listed |
| Frame Material | Lightweight aluminium |
