IDEAL
MFR #30-073
UPC #624141300739
Wire-Nut® 73B® Wire Connectors (Box of 100), Model 30-073
$15.49
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories

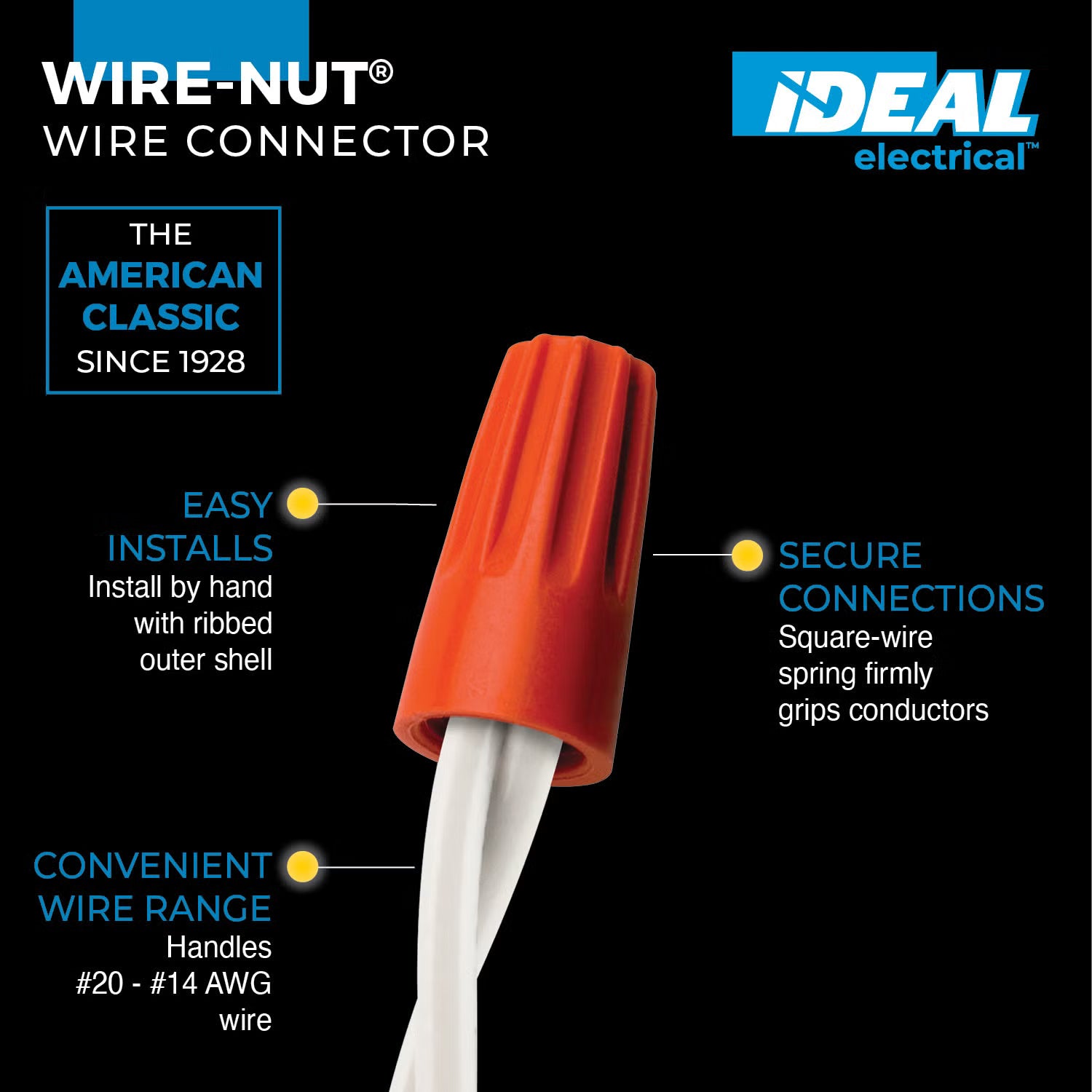

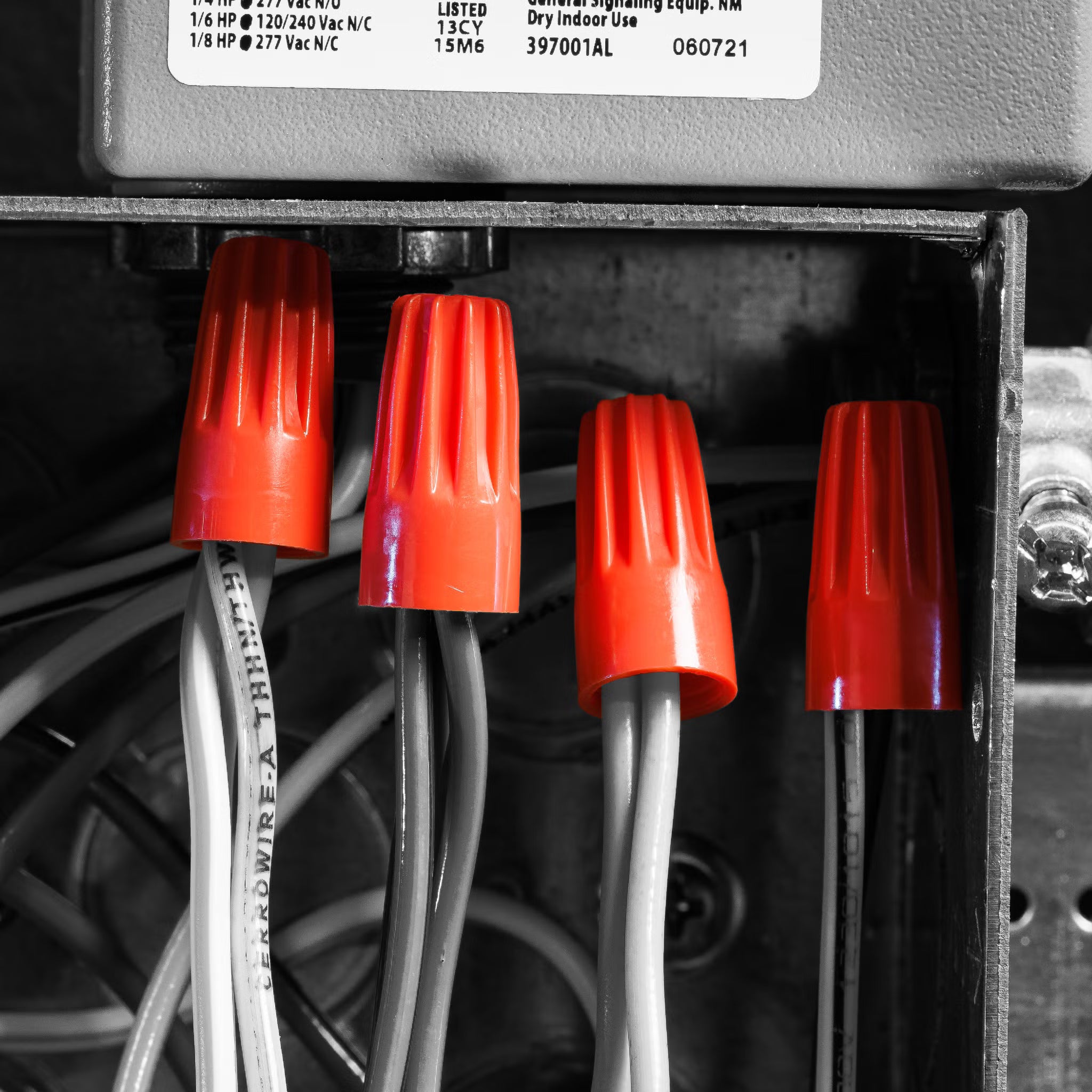

These twist-on wire connectors make fast, dependable splices on residential, commercial, and industrial jobsites. The ribbed copolymer shell is easy to grip and twist by hand, while the square-cut spring holds conductors securely for clean installations in air-handling spaces.
Specifications
| Connector Type | Twist-on |
| Twist-On Style | Round |
| Colour | Orange |
| Wire Range | #20 to #14 AWG |
| Wire Type | Solid and stranded |
| Maximum Wire Combination | One #18 with one #20 AWG to two #14 AWG |
| Shell Material | Durable copolymer |
| Spring | Fixed square-cut spring |
| Plenum Rated | Yes, suitable for air-handling spaces |
| Voltage Rating | Up to 600 V, or 1,000 V in signs and fixtures |
| Flexible Skirt | No |
| Corrosion Resistance | Protective spring coating applied after coiling |
| Warranty | Limited 1 year |
