IDEAL
MFR #30-454
UPC #624141304546
Wing-Nut® 454® Wire Connectors "Big Blue" (Box of 25), Model 30-454
$53.59
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories

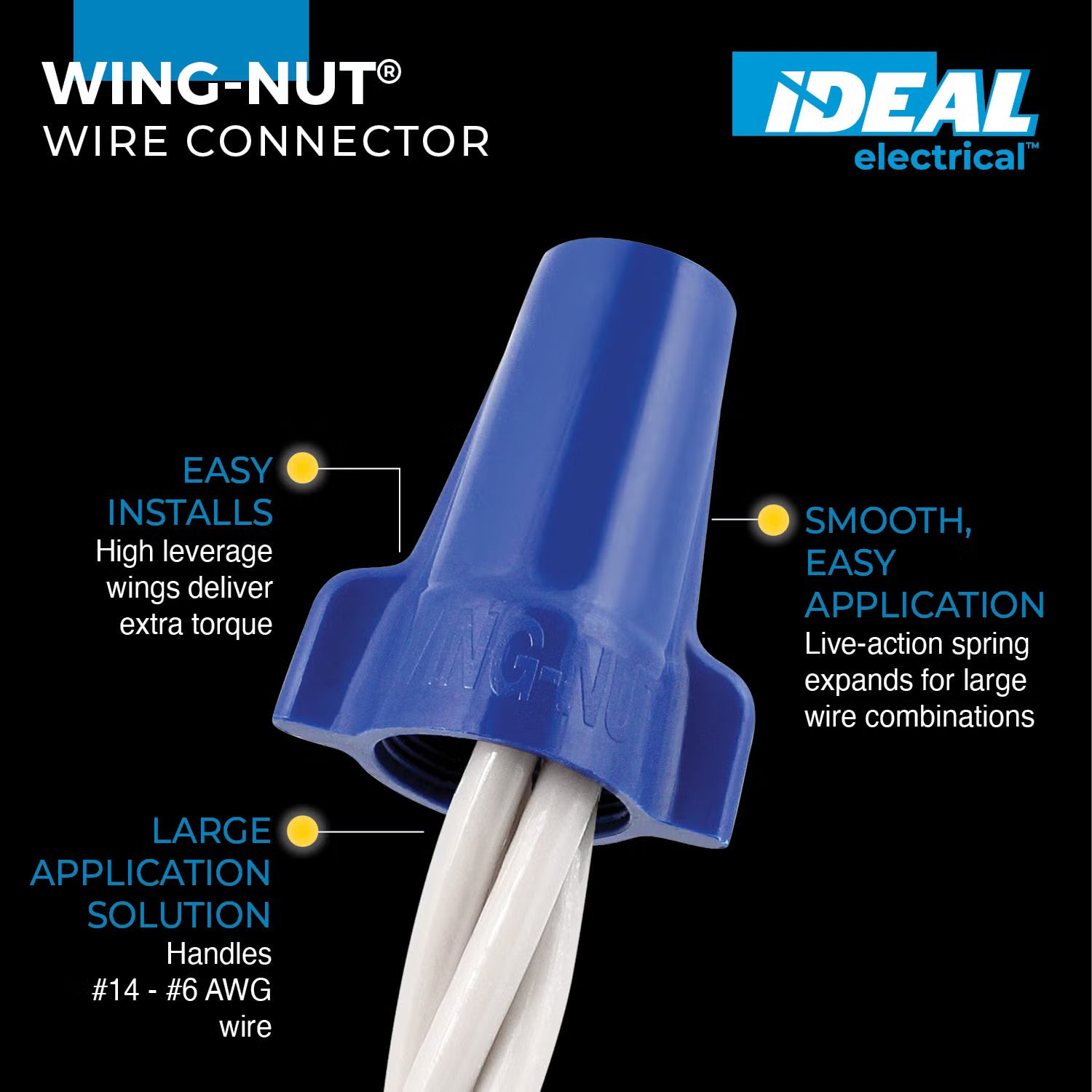

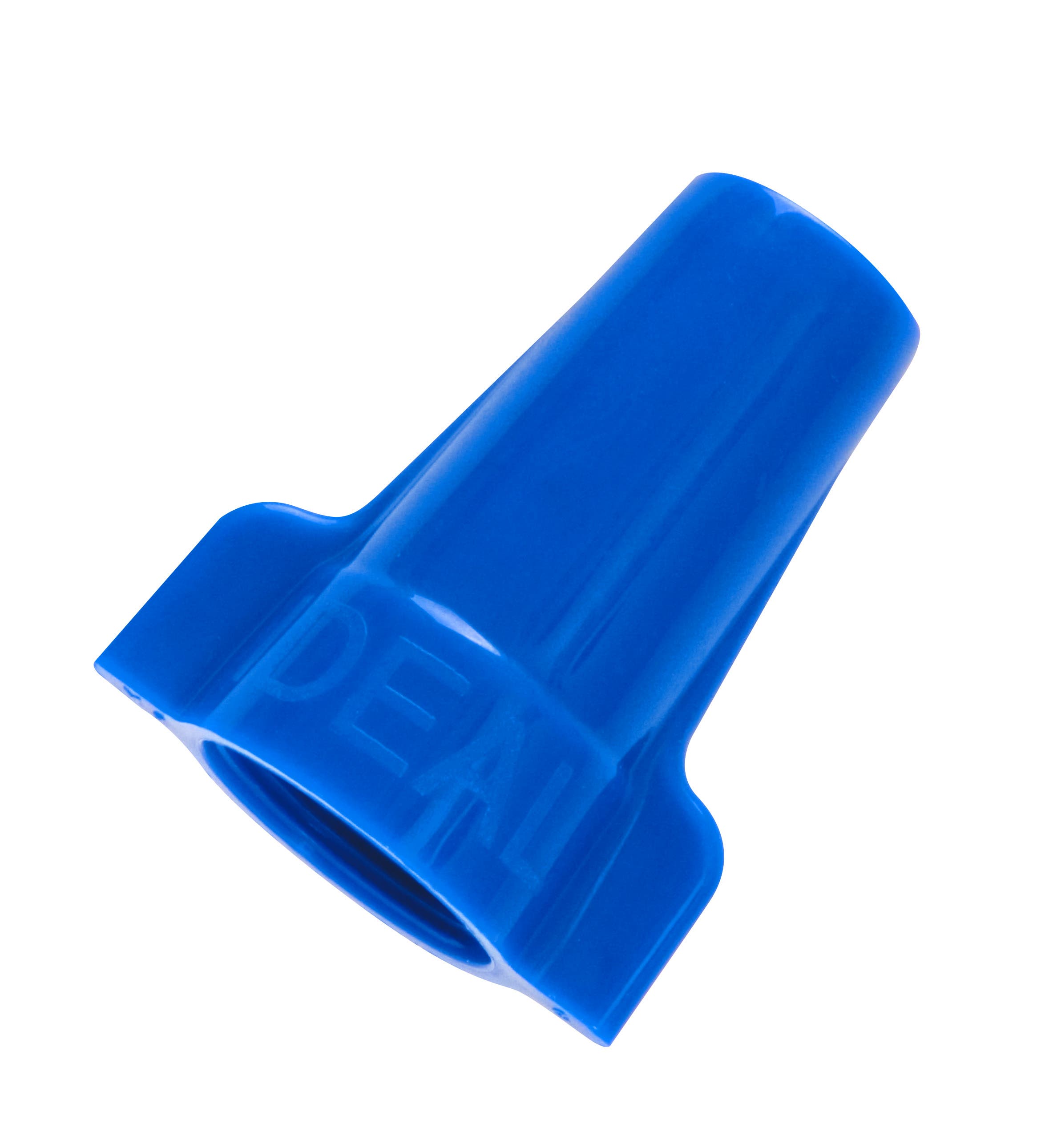

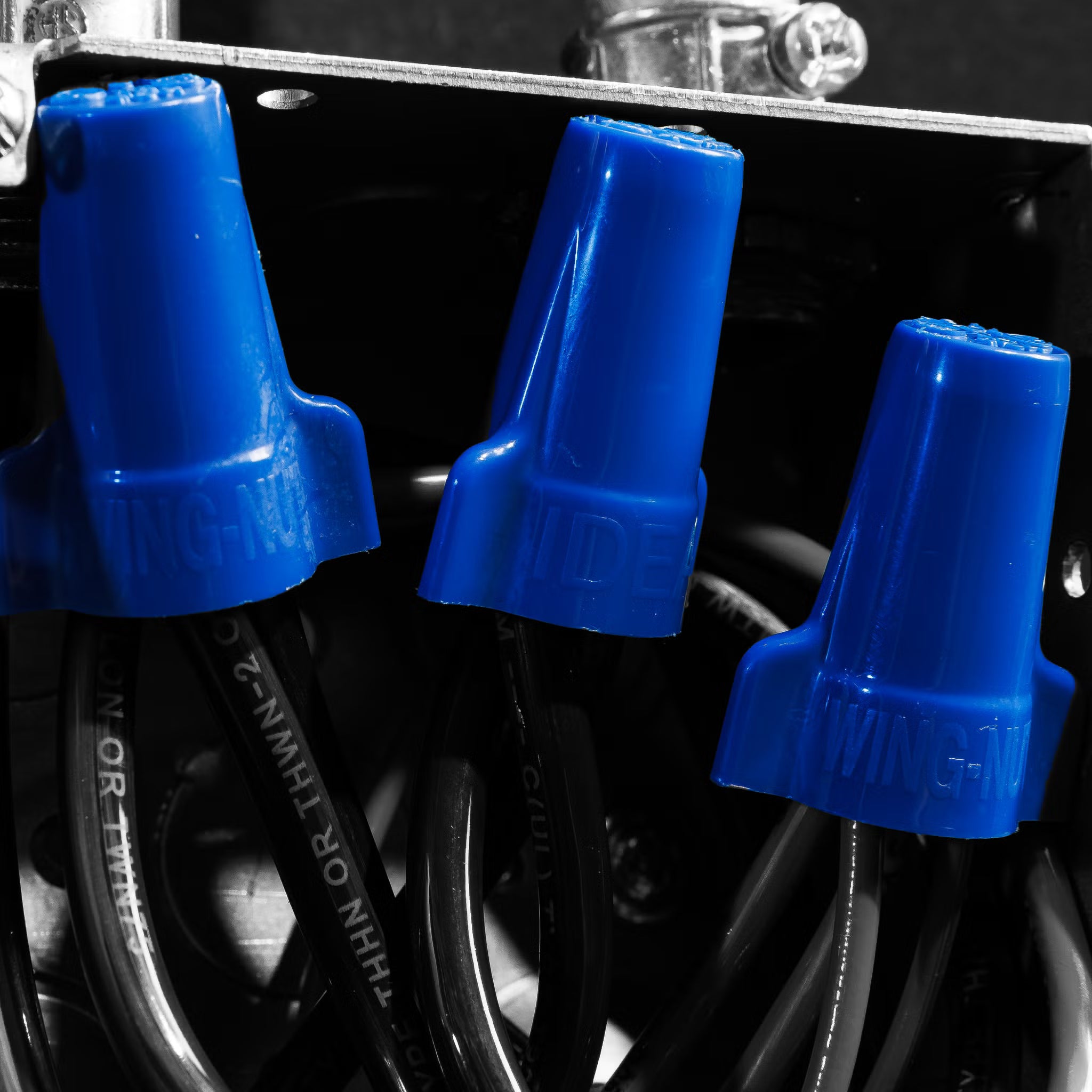

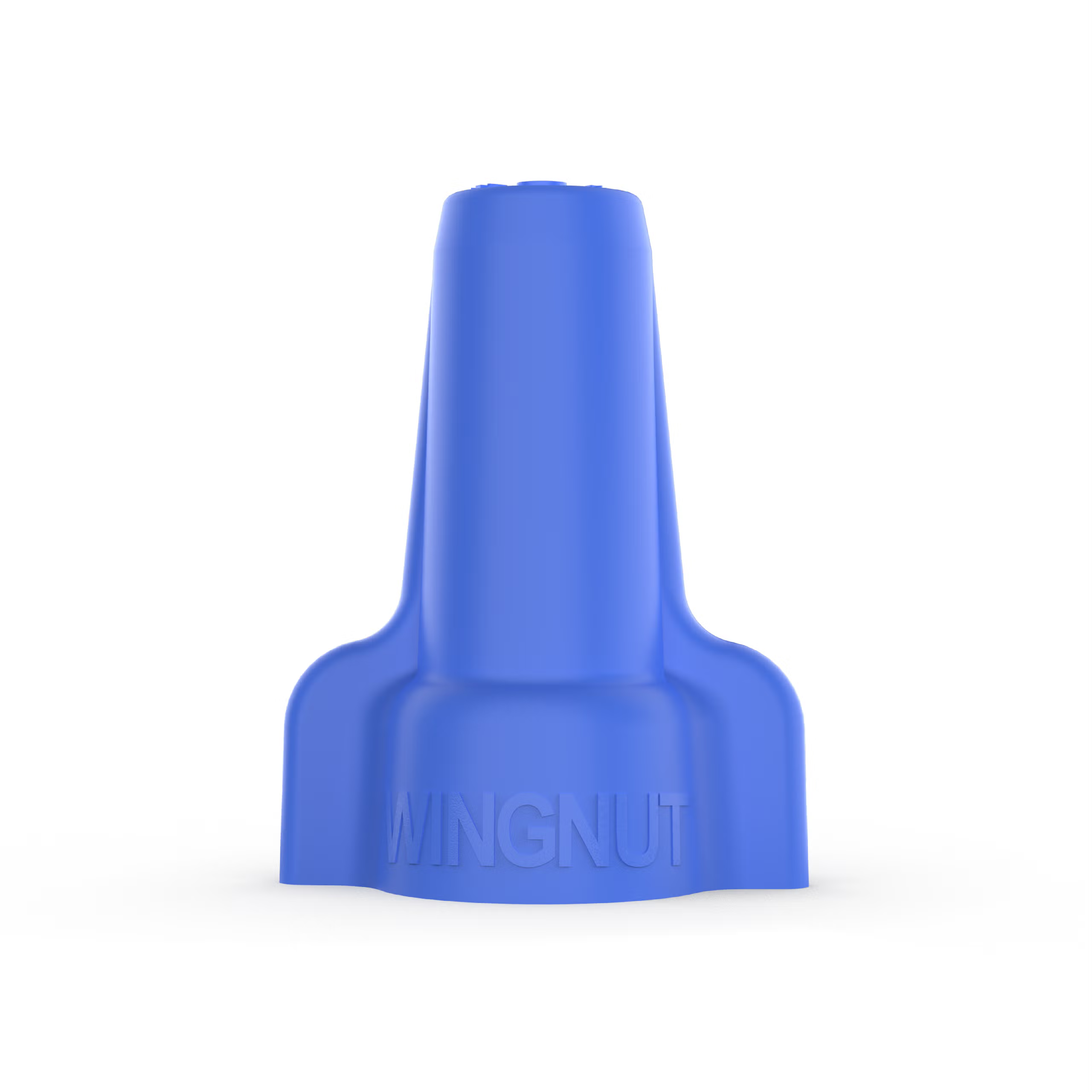

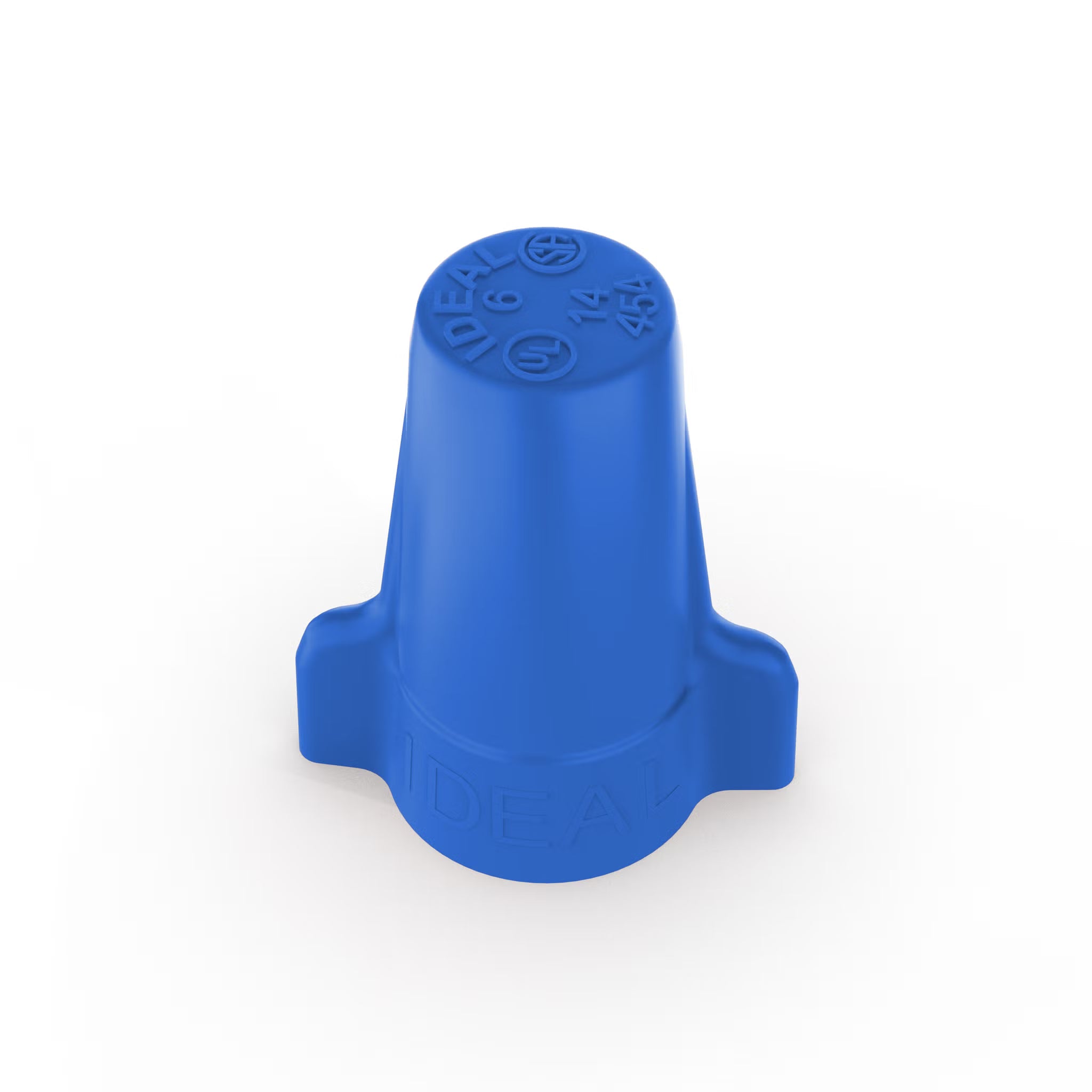

Make fast, dependable splices on large-diameter conductors with the blue Wing-Nut connector from IDEAL Electrical. Contoured high-leverage wings deliver extra torque on every twist, while the live-action spring and expanding copolymer shell hold combinations from three #12 AWG up to one #6 AWG with two #8 AWG securely. Ideal for wiring electric dryers, air conditioners, and heavy feeder splices in panels and junction boxes on any job site.
Specifications
| Brand | IDEAL Electrical |
| Connector Type | Twist-on wire connector |
| Twist-On Style | Wing |
| Installation Method | Twist-on |
| Wire Range | #14 AWG to #6 AWG |
| Maximum Wire Gauge | 6 AWG |
| Minimum Wire Gauge | 14 AWG |
| For Wire Type | Solid, stranded |
| Voltage Rating | Up to 600V (1000V in signs and fixtures) |
| Colour | Blue |
| Shell Material | Impact-resistant expanding copolymer with extended skirt |
| Spring | Live-action, coated after coiling for corrosion resistance |
| Flexible Skirt | No |
| Plenum Rated | No |
| Certification | UL Listed to 600V |
| Package Quantity | Box of 25 |
| Warranty | Limited 1 year |
