IDEAL
MFR #30-452
UPC #624141304522

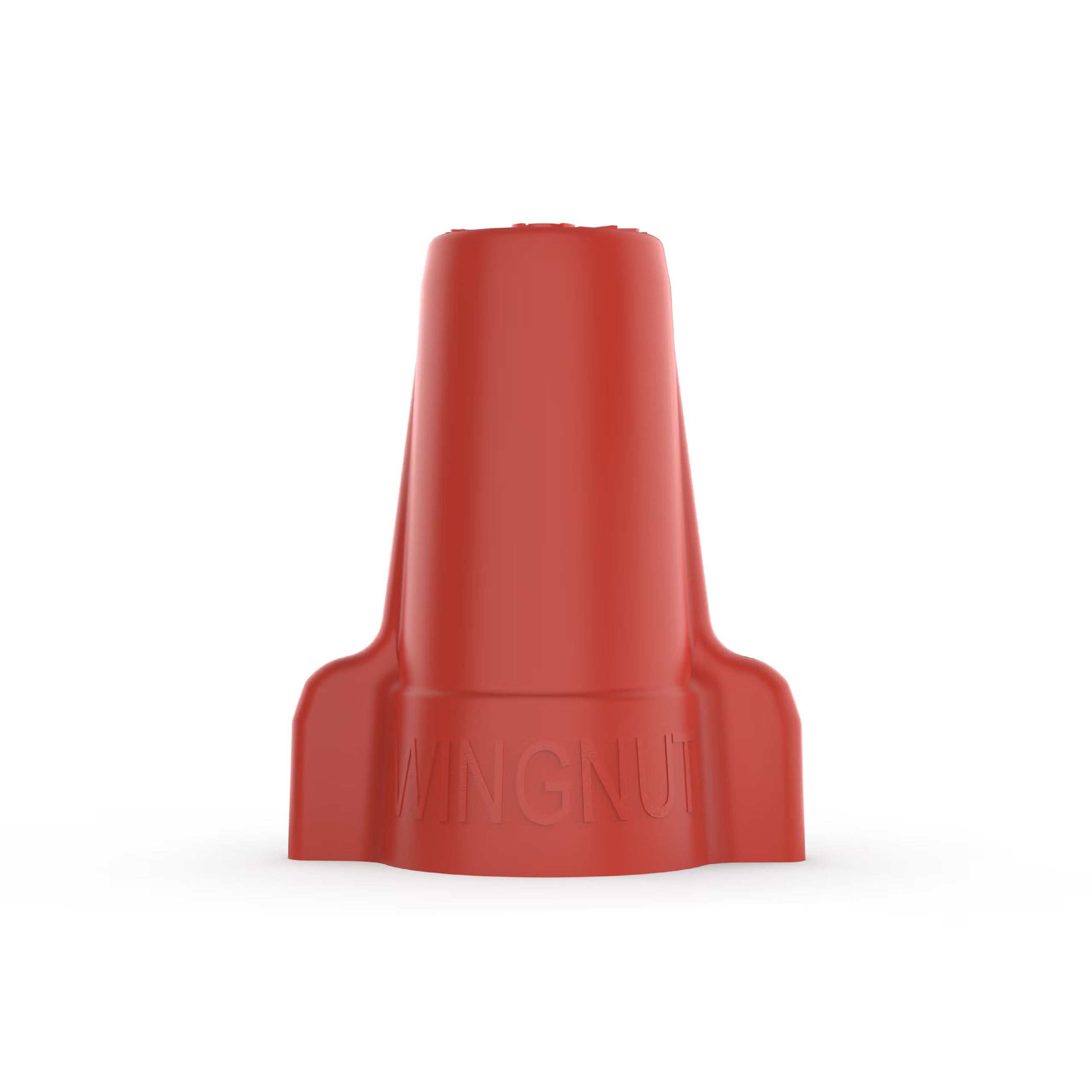

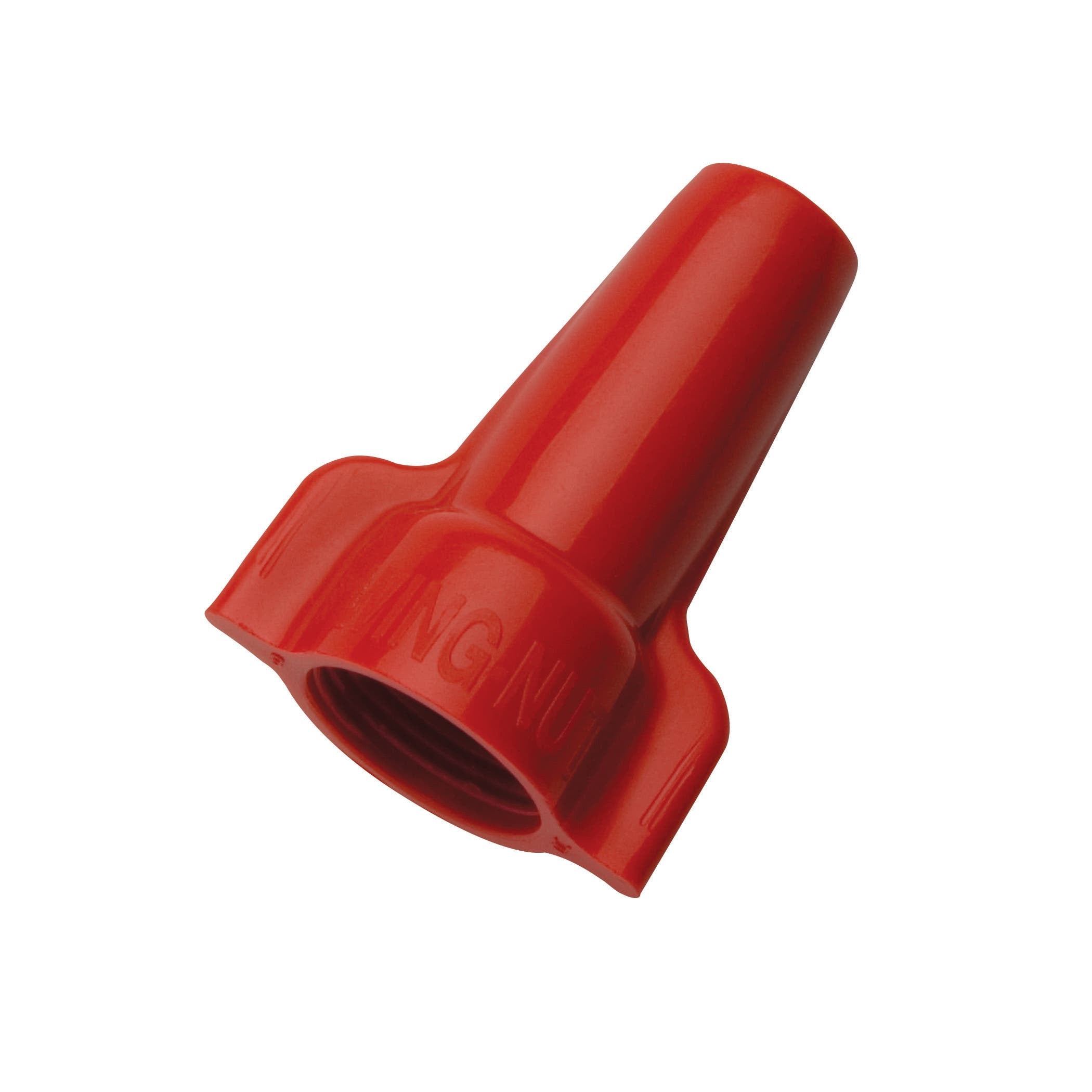

Wing-Nut® 452® Wire Connectors (Box of 100), Model 30-452
$38.85
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories

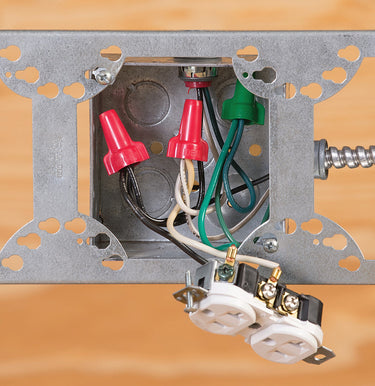

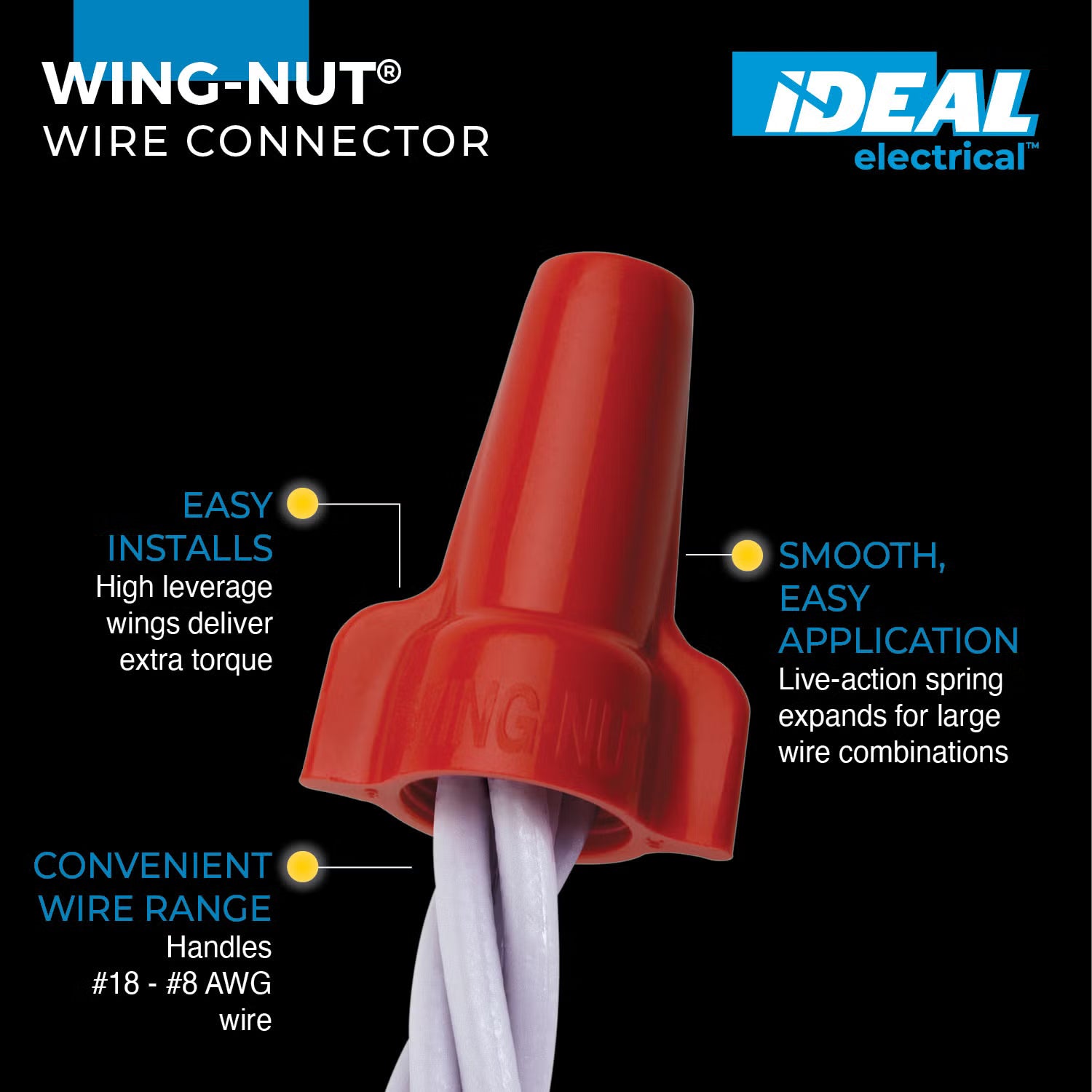

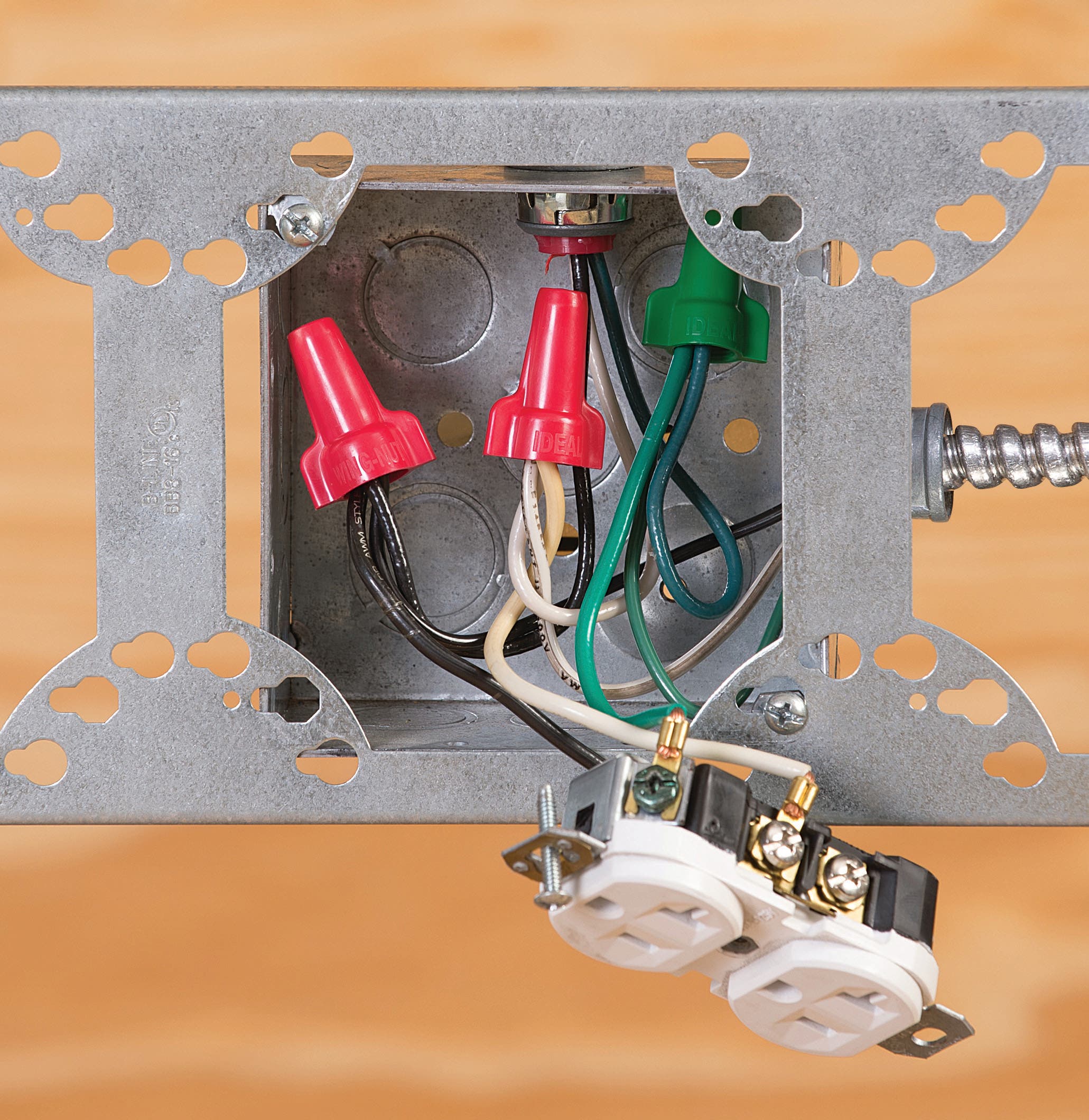

Make fast, secure splices across a wide range of residential, commercial, and job-site wiring applications with these red twist-on wire connectors. High-leverage wings improve grip and torque, while the expanding live-action spring and durable copolymer shell help deliver a dependable hold on solid or stranded conductors.
Specifications
| Connector Type | Twist-on wing connector |
| Wire Range | 18–8 AWG |
| Wire Compatibility | Solid and stranded |
| Wire Combinations | Minimum two 18 AWG; maximum four 10 AWG |
| Voltage Rating | 600 V; 1000 V in signs and fixtures |
| Colour | Red |
| Shell Material | Impact-resistant copolymer |
| Spring | Corrosion-resistant live-action spring |
| Plenum Rated | No |
| Certification | UL Listed |
| Package Quantity | 100 connectors |
| Warranty | Limited 1 year |
