IDEAL
MFR #30-451
UPC #624141304515

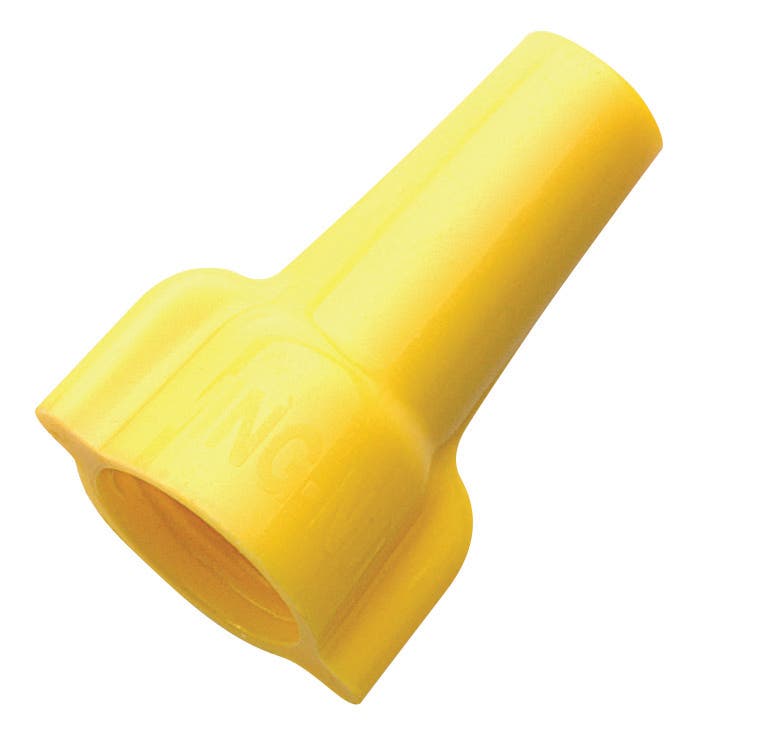

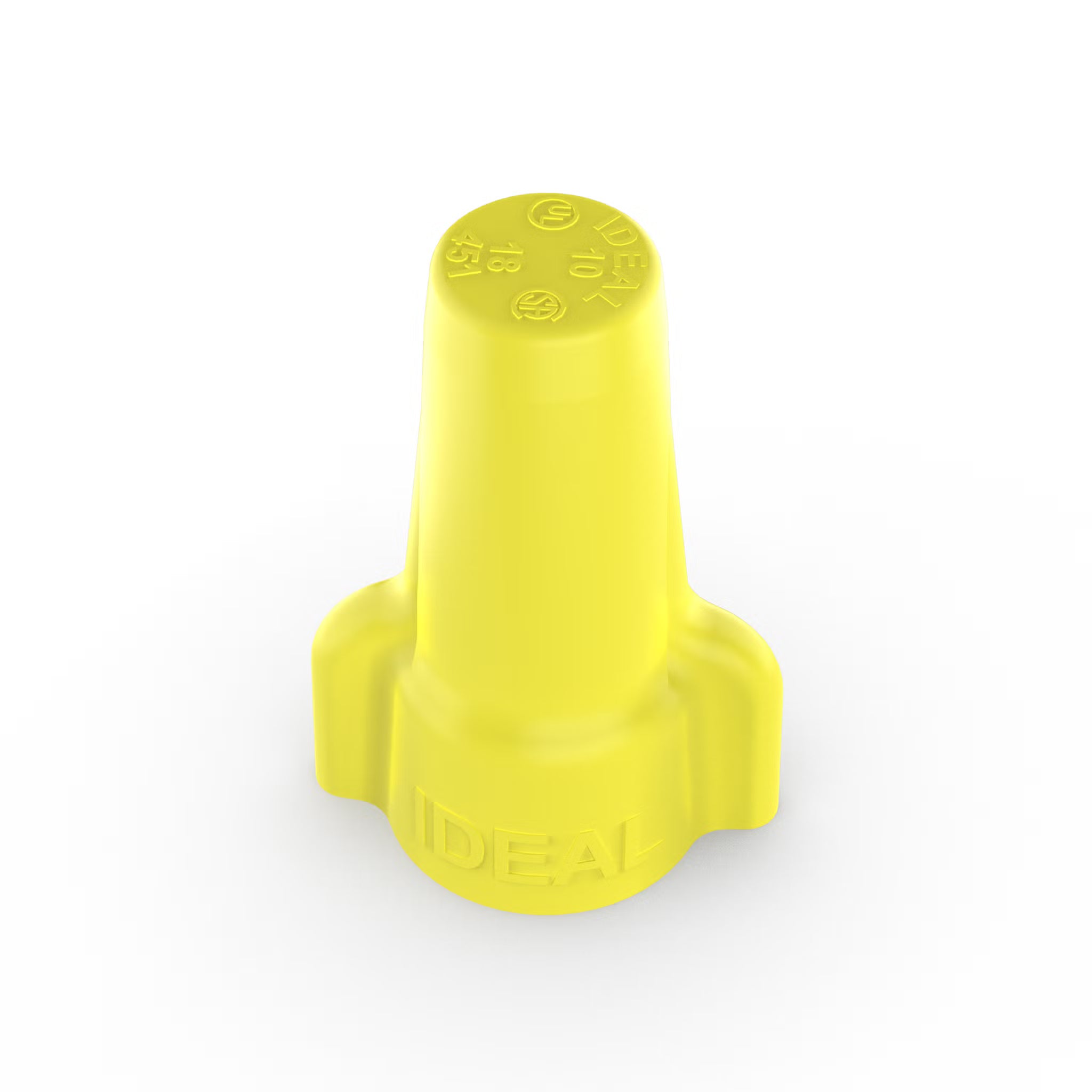

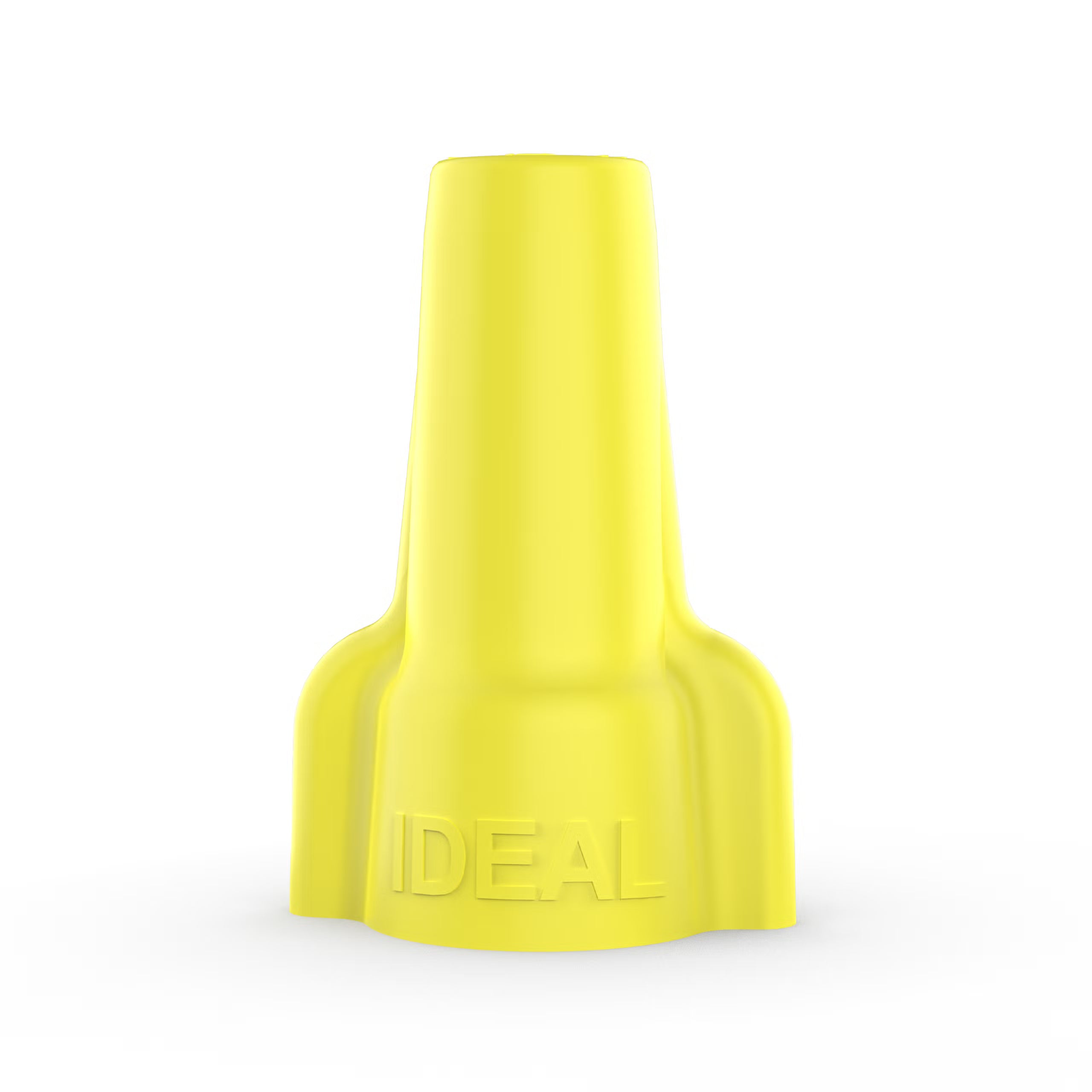

Wing-Nut® 451® Wire Connectors (Box of 100), Model 30-451
$29.56
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories

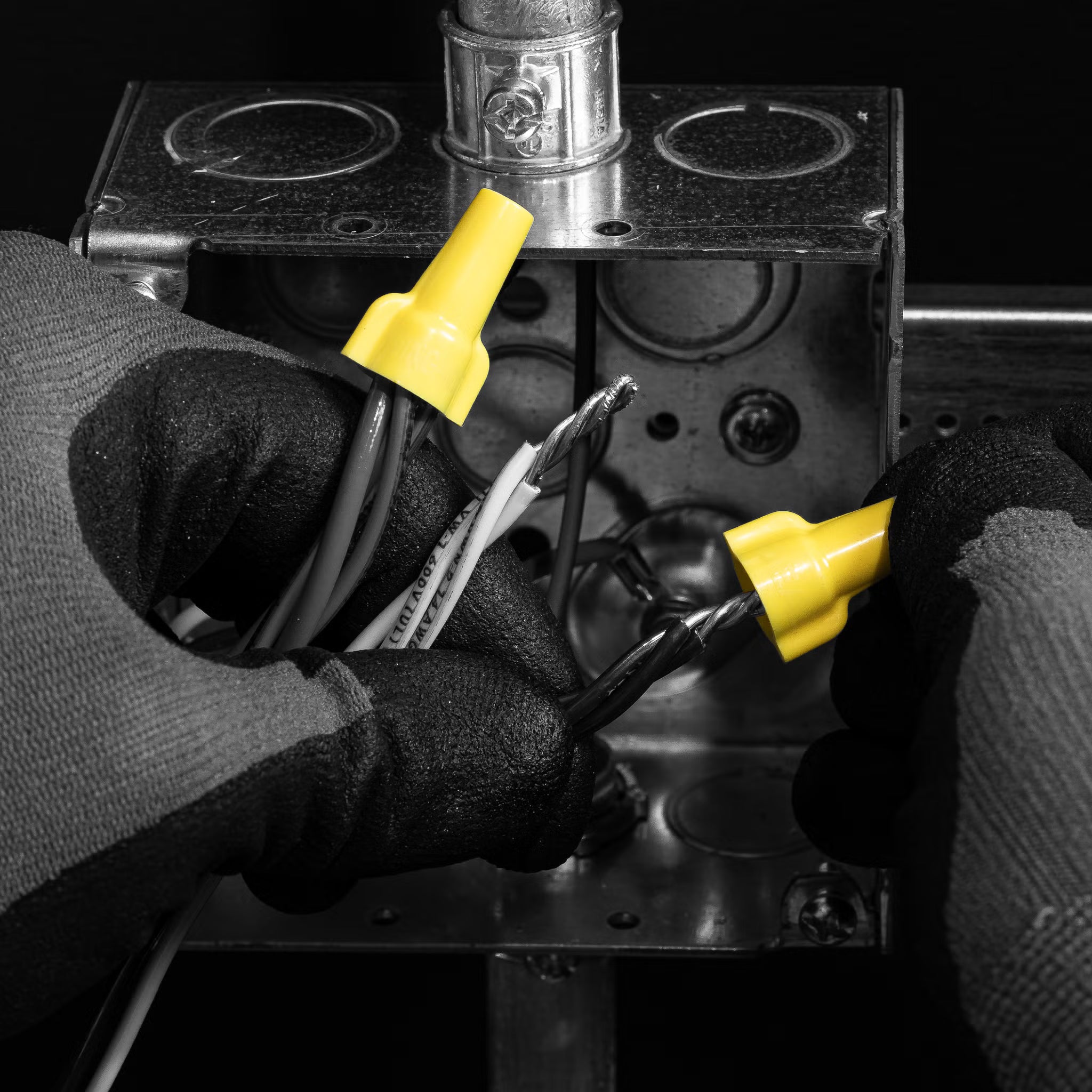

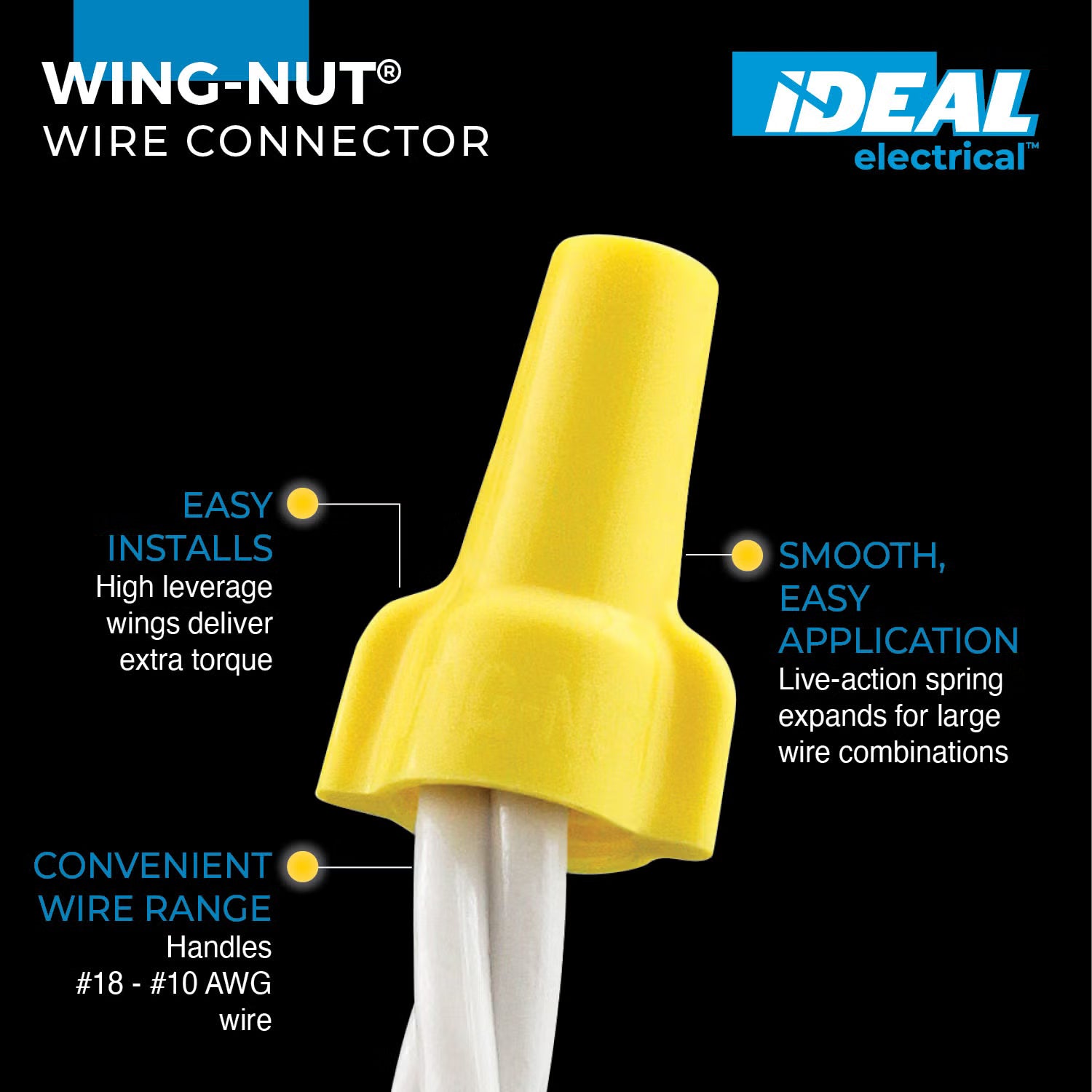

Make fast, secure electrical splices with high-leverage wings that provide extra torque and a comfortable grip. The expanding spring accommodates a broad range of solid and stranded wire combinations, while the durable copolymer shell supports reliable work in demanding installation environments.
Specifications
| Connector Type | Winged twist-on wire connector |
| Wire Range | 18–10 AWG |
| Wire Compatibility | Solid and stranded wire |
| Wire Combinations | Minimum two 18 AWG; maximum three 12 AWG |
| Voltage Rating | 600 V; 1,000 V in signs and fixtures |
| Shell Material | Impact-resistant expanding copolymer |
| Spring | Live-action spring with corrosion-resistant coating |
| Colour | Yellow |
| Plenum Rated | No |
| Certification | UL listed |
| Package Quantity | 100 connectors |
| Warranty | Limited 1 year |
