IDEAL
MFR #30-392J
UPC #624141017378
PowerPlug® Luminaire Disconnects Model 102 2-Wire (Pack of 200), Model 30-392J
$403.03
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories

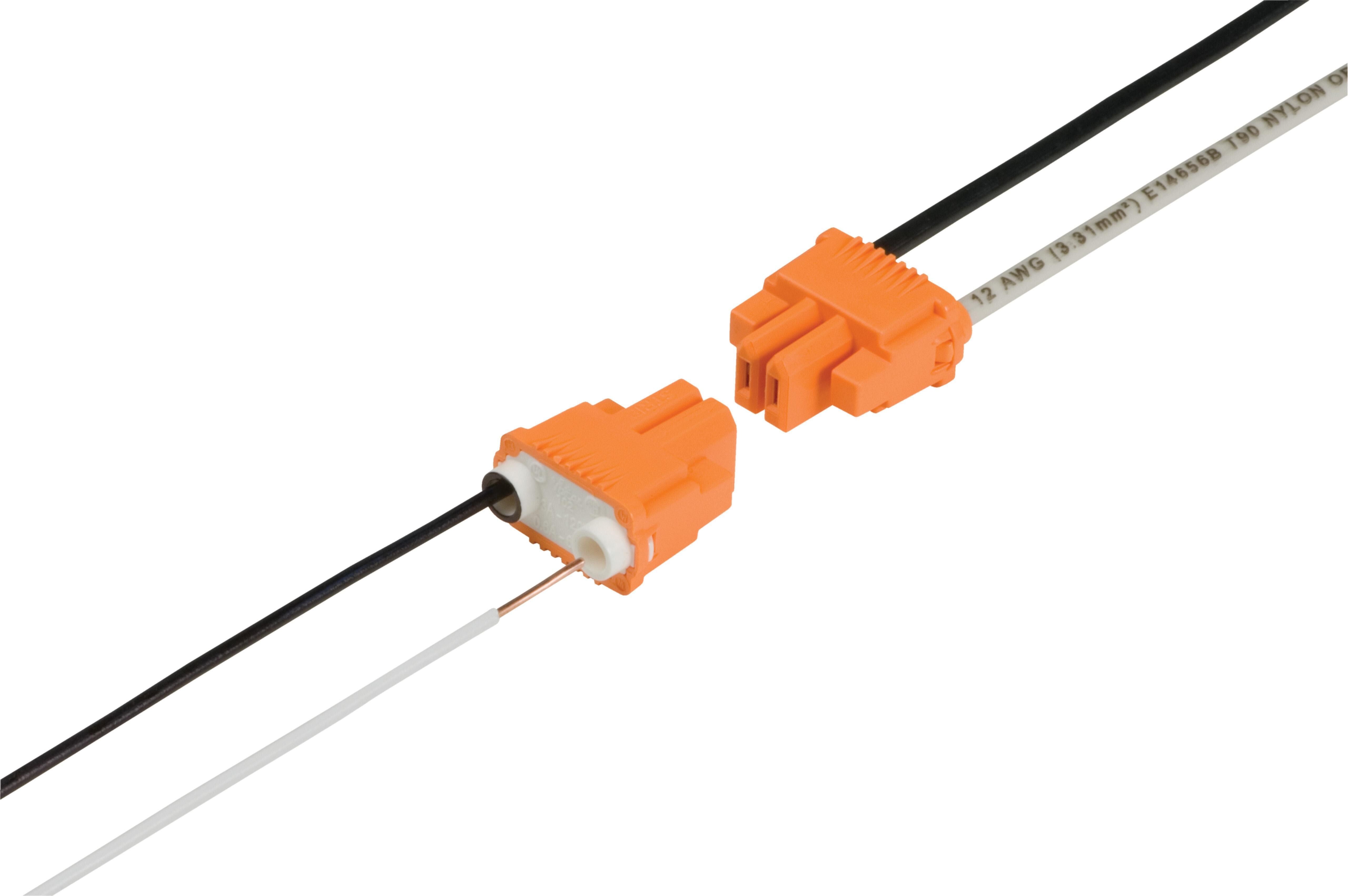

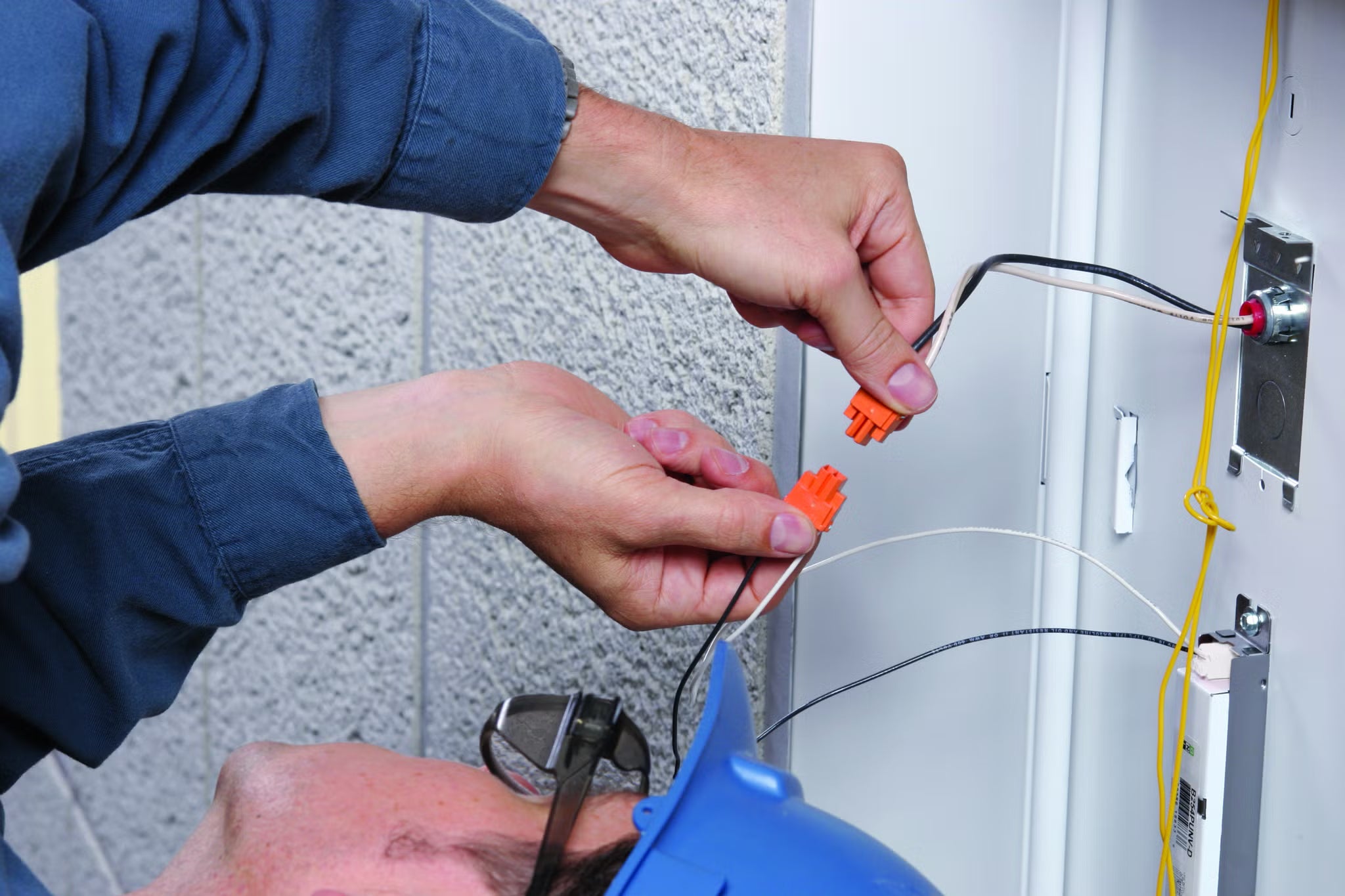

PowerPlug® luminaire disconnects make ballast replacement safer and faster by separating hot and neutral wiring with touch-safe, colour-coded connections. The push-in design helps electricians reduce installation time on new, retrofit, and OEM fluorescent lighting projects, while the compact body fits through a 1/2-inch knockout.
Specifications
| Application | New, retrofit, and OEM fluorescent luminaire installations |
| Connection | 2-wire luminaire disconnect for hot and neutral ballast wiring |
| Wire range | Solid 12–18 AWG; stranded 12–14 AWG (<19 strands); tin-bonded stranded 12–14 AWG (<19 strands), 16 AWG (<26 strands), and 18 AWG (<16 strands) |
| Voltage rating | 600 V AC |
| Current rating | 6 A |
| Safety compliance | UL and CSA finger-probe safety requirements; touch-safe per UL 2459; meets applicable CEC and NEC requirements for non-residential fluorescent luminaires |
| Colour coding | White ballast side; orange line side |
| Installation fit | Fits through a 1/2-inch knockout |
| Body material | Nylon body with TiN-coated copper alloy contacts |
| Temperature rating | 105°C |
| Number of ports | 2 |
| Pack quantity | 200 |
| Warranty | Limited 1 year |
