IDEAL
MFR #30-1032
UPC #783250693511

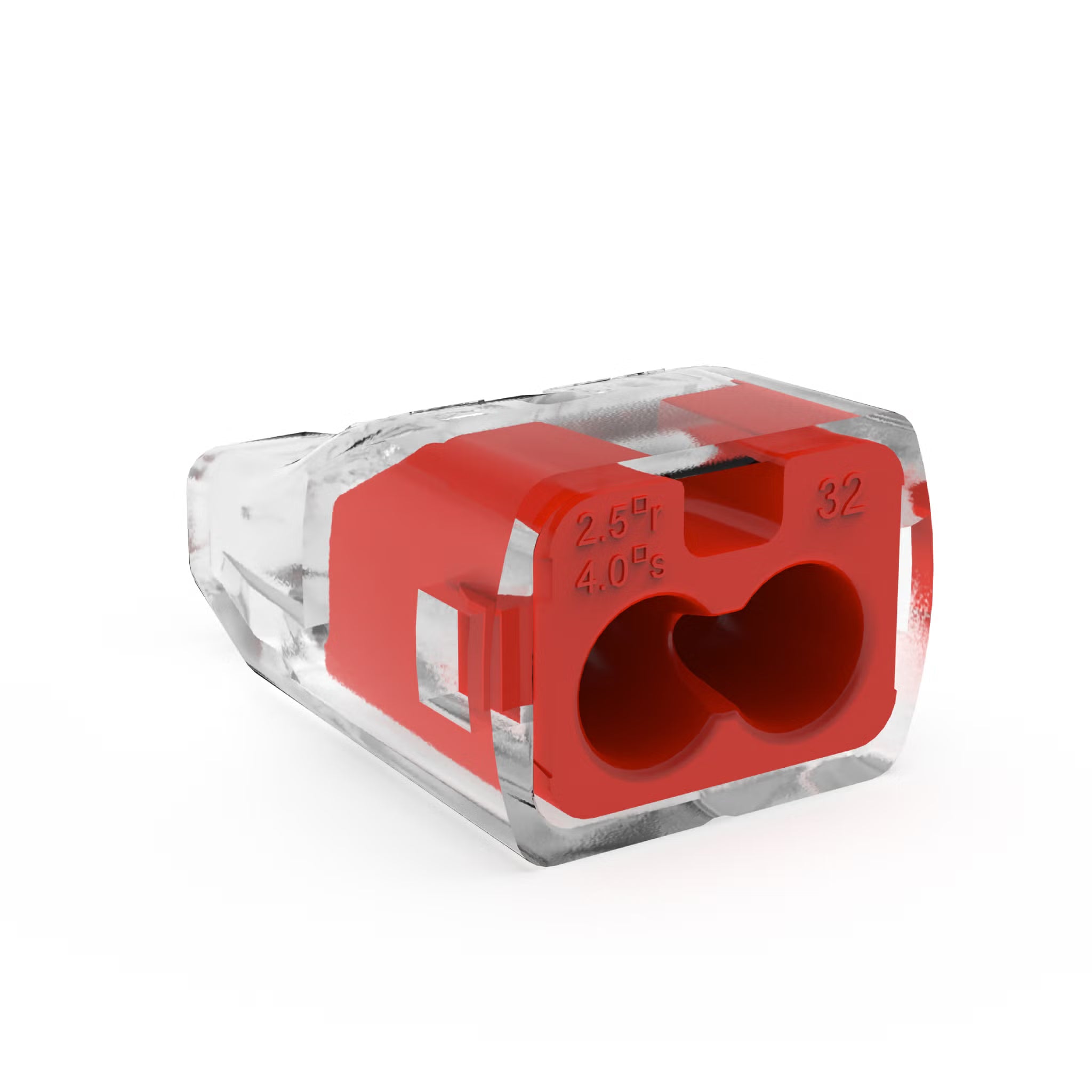

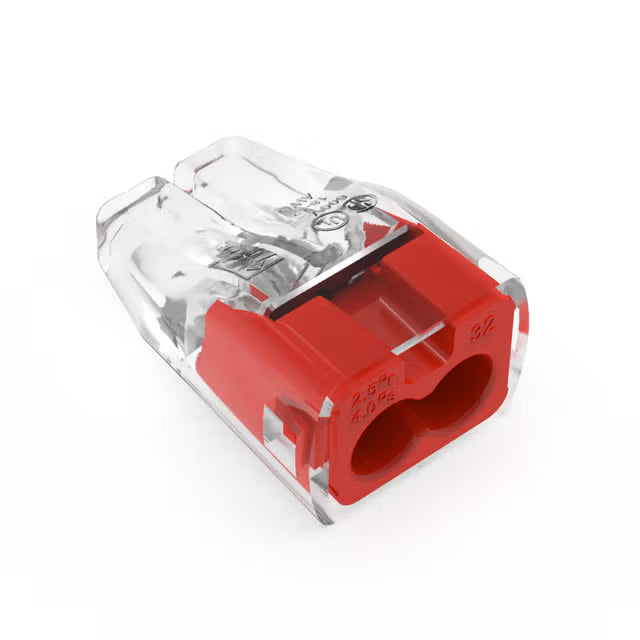

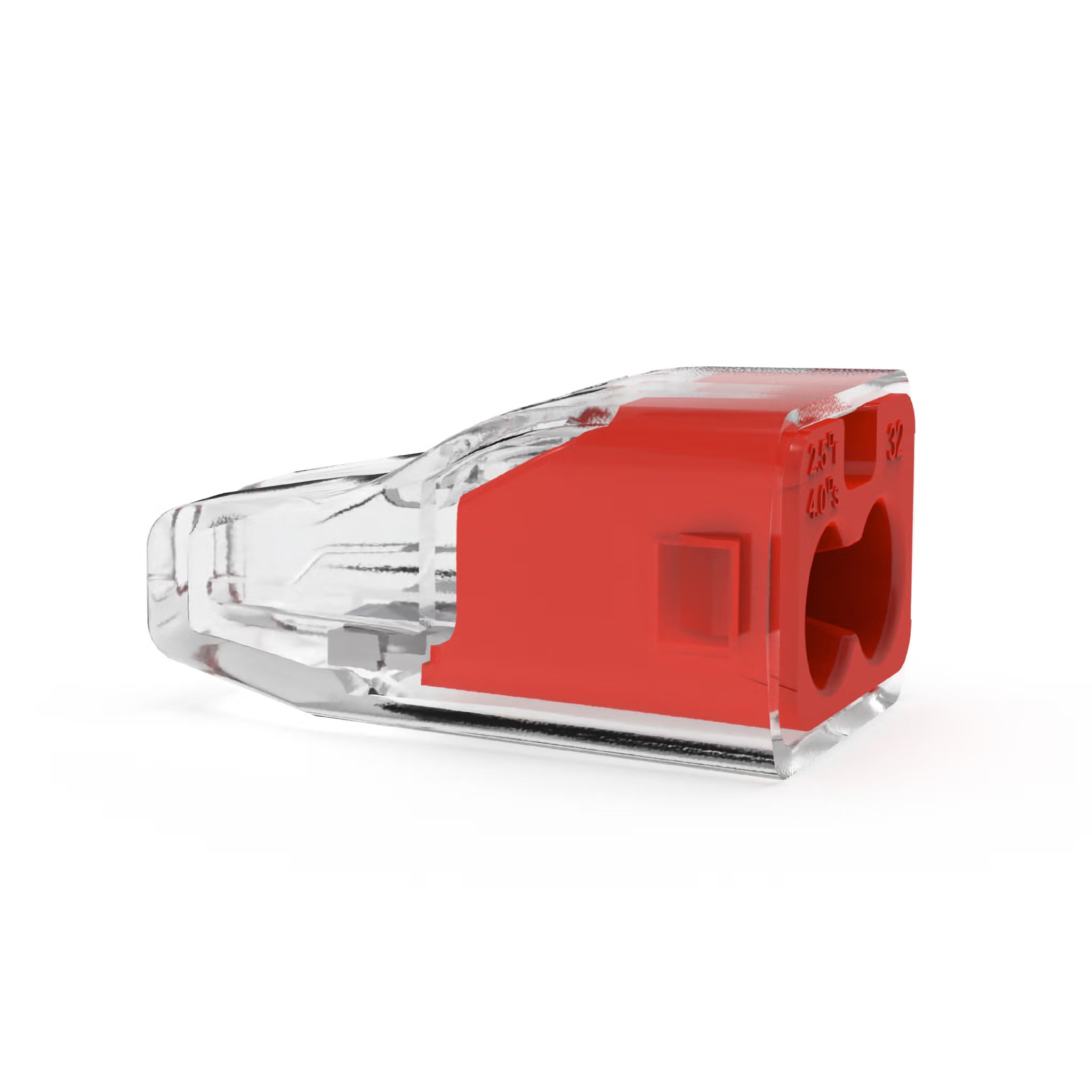

In-Sure® Push-In 2-Port Wire Connectors (Box of 100), Model 30-1032
$15.44
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories

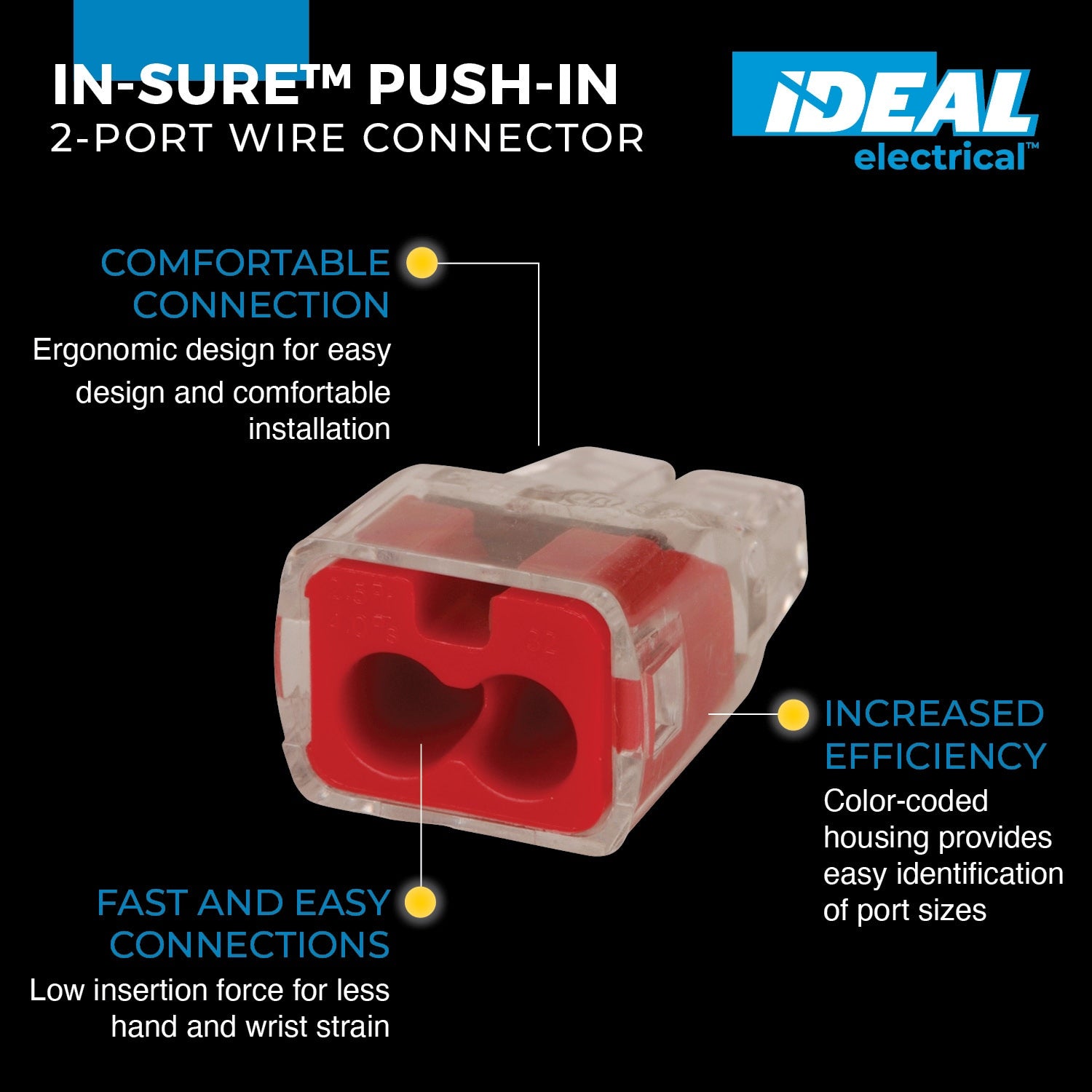

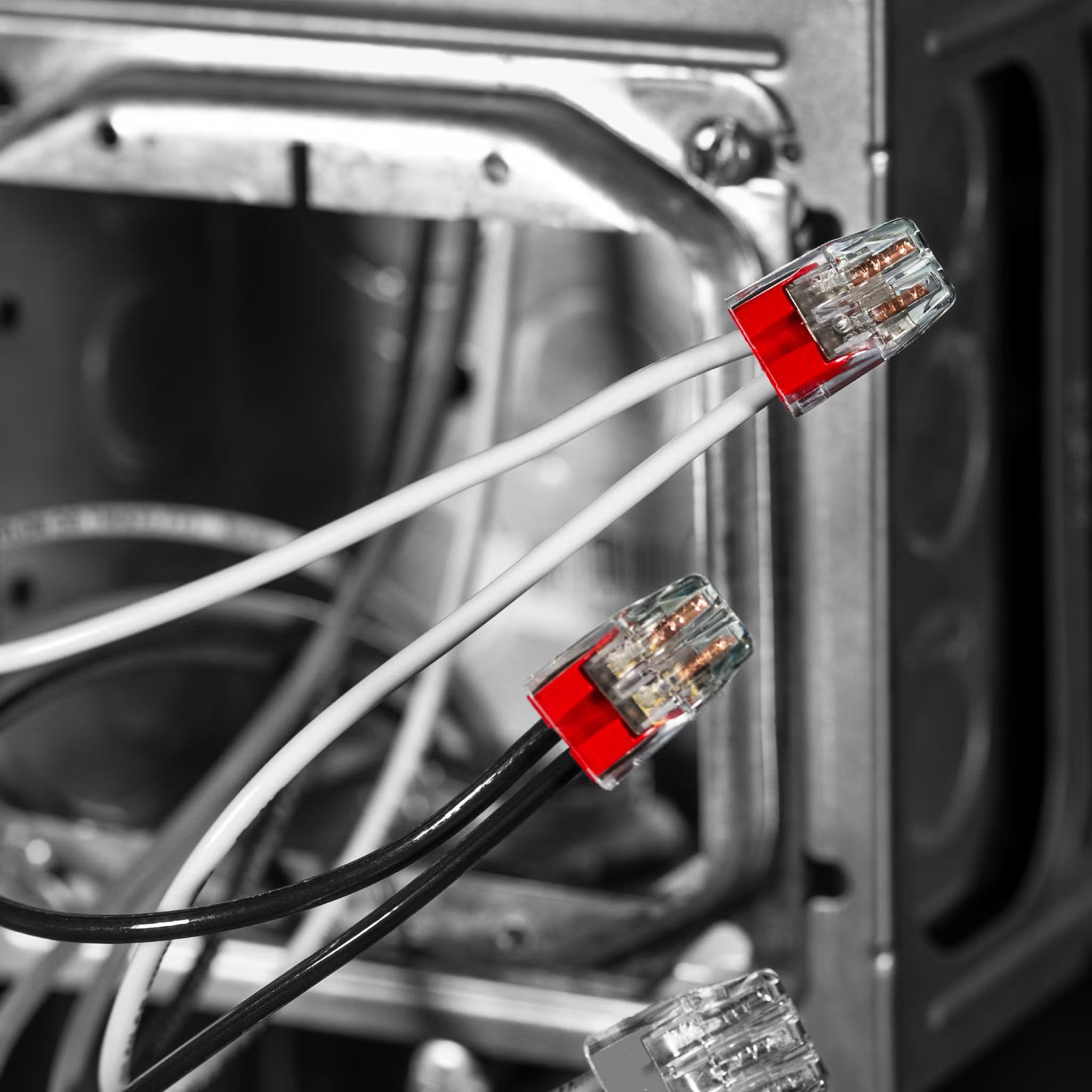

IDEAL® In-Sure® Push-In Wire Connectors eliminate the guesswork and fatigue of traditional twist-on connections with a single-step, no-twist ergonomic design that dramatically reduces hand and wrist strain on the job site. The clear polycarbonate shell gives instant visual confirmation of a secure connection, while colour-coded red housing makes 2-port identification fast and effortless. Compact and versatile, these connectors are ideal for lighting installations, prefabricated wiring systems, and branch circuit wiring in any combination of 20–12 AWG solid, 16–12 AWG stranded, or 12 AWG copper-clad aluminium wires.
Specifications
| Number of Ports | 2 |
| Colour | Red |
| Wire Type | Solid, Stranded |
| Wire Range | 20–12 AWG Solid, 16–12 AWG Stranded, 12 AWG Copper-Clad Aluminium |
| Voltage Rating | 600V |
| Temperature Rating | 105°C |
| Shell Material | Clear Polycarbonate, UL 94V-2 Flame-Retardant |
| Connection Type | Cu-Cu, CC-Cu (Copper-Clad Aluminium to Copper) |
| Plenum Rated | No |
| Flexible Skirt | No |
| Certifications | cULus, CSA, CE, UKCA |
| Warranty | Limited 1 Year |
| Package Quantity | Box of 100 |
