IDEAL
MFR #30-10L23
UPC #783250423361

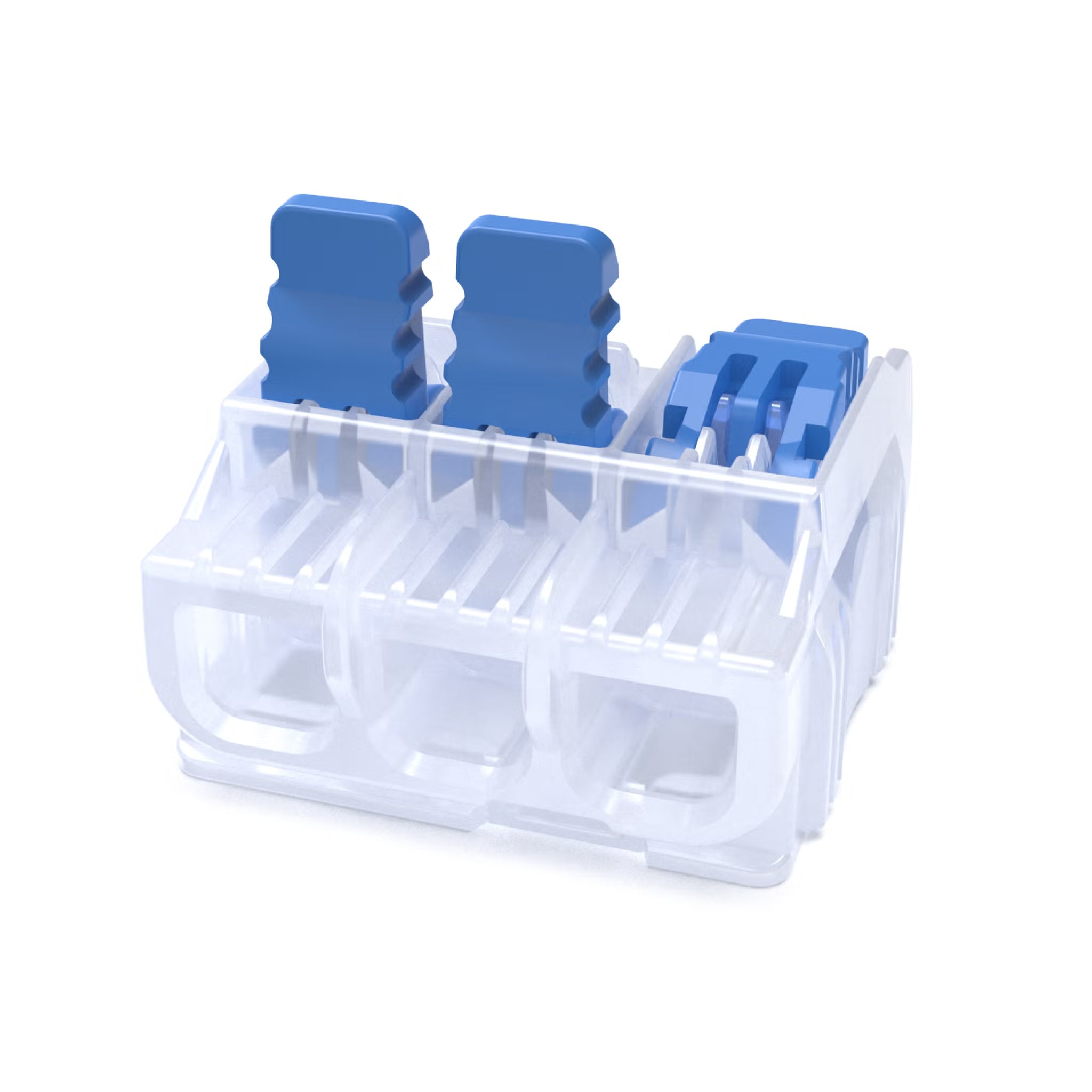

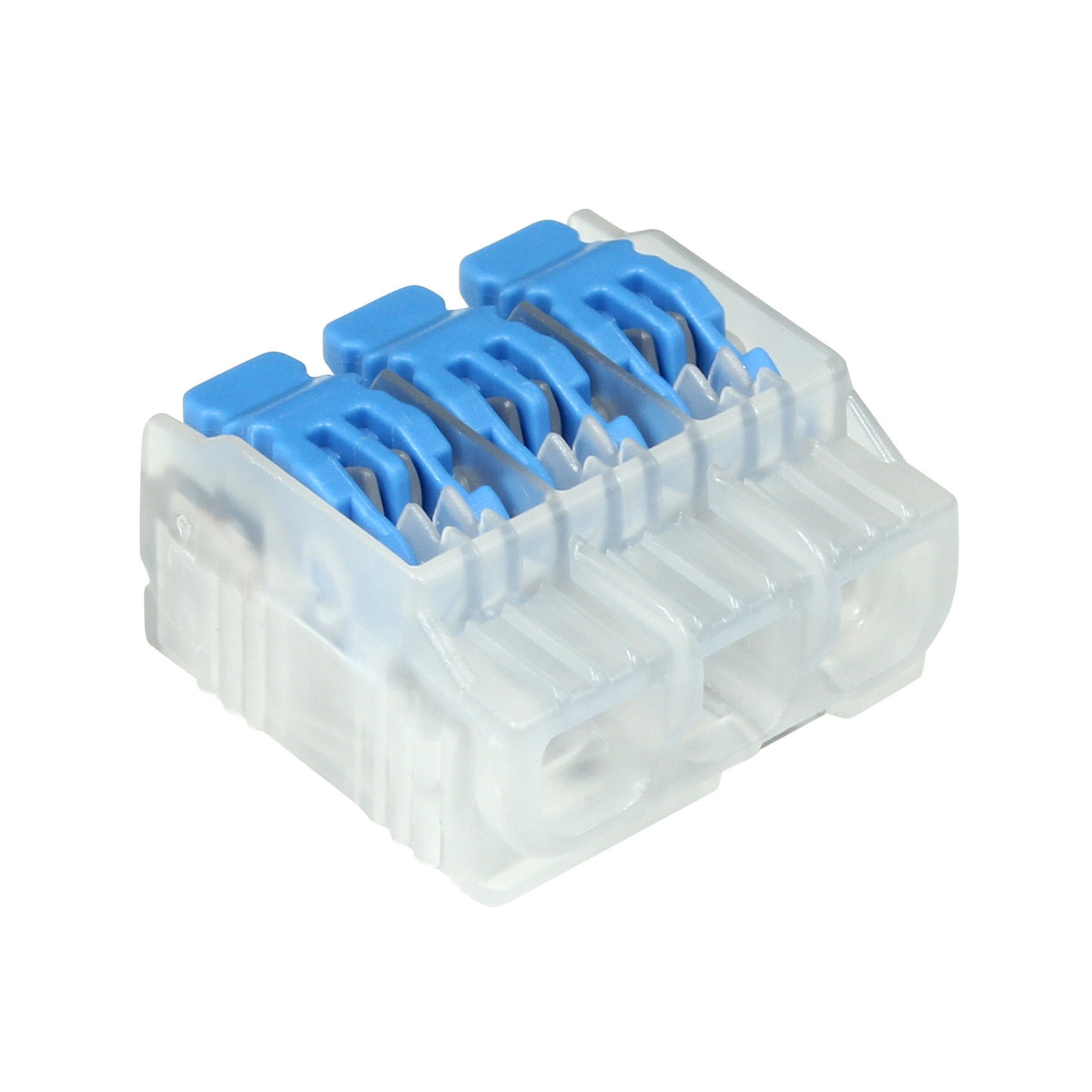

In-Sure® Lever Wire Connectors 3-Port (Box of 100), Model 30-10L23
$43.61
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories

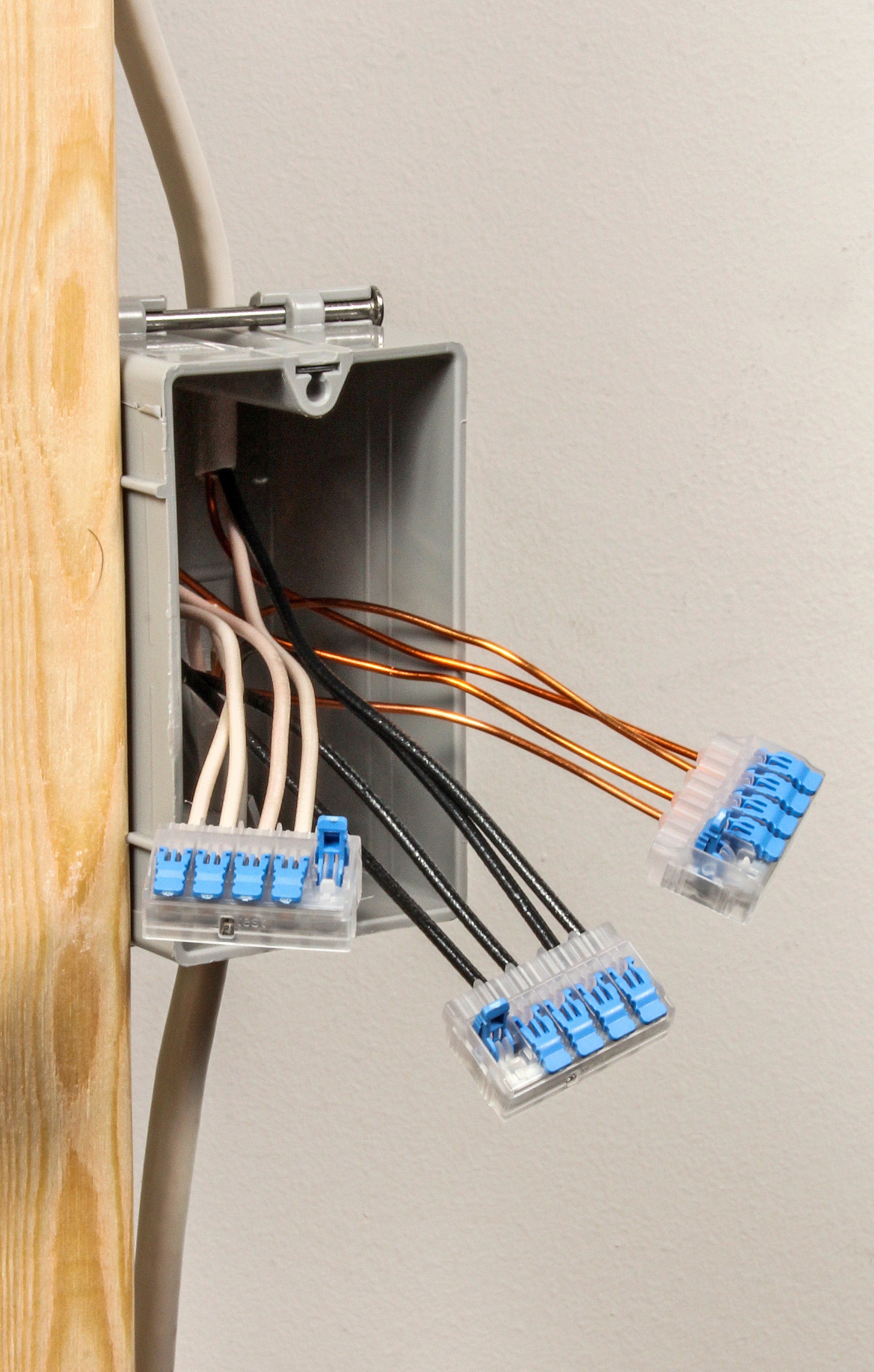

Make fast, secure connections in junction boxes with this compact 3-port lever connector for solid and stranded copper wire. Its reusable lever design, clear housing, two-stage locking feature, and continuity check port help electricians work efficiently and verify connections on the job site.
Specifications
| Product Type | Lever wire connector |
| Number of Ports | 3 |
| Wire Range | 12–24 AWG |
| Compatible Wire | Solid and stranded copper |
| Maximum Voltage | 600 V |
| Maximum Temperature | 105°C |
| Installation Method | Lever |

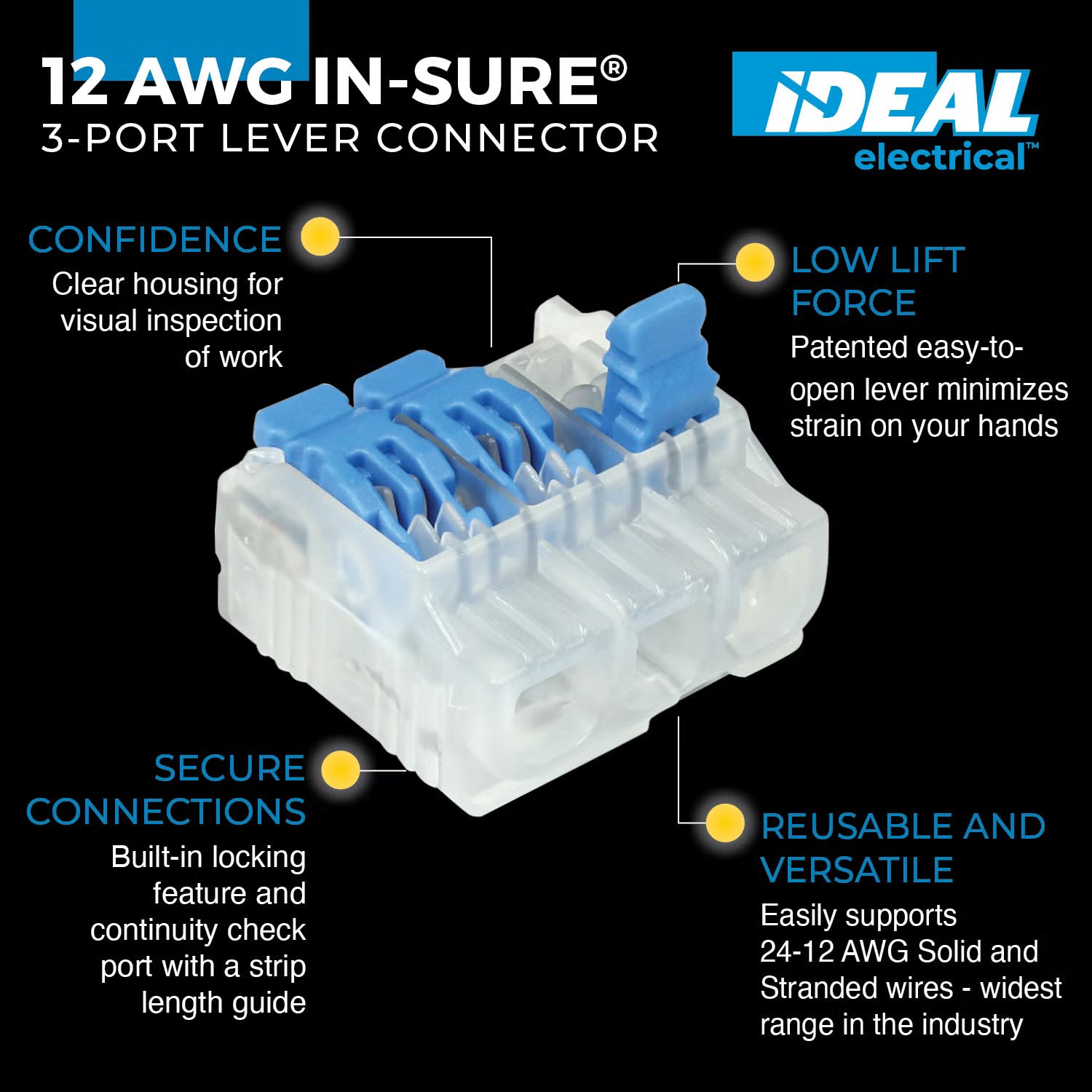

| Connection Features | Two-stage locking, continuity check port, and strip-length guide |
| Housing | Clear with blue levers and ridged sides |
| Plenum Rated | No |
| Package Quantity | 100 connectors |
| Warranty | Limited 1 year |
