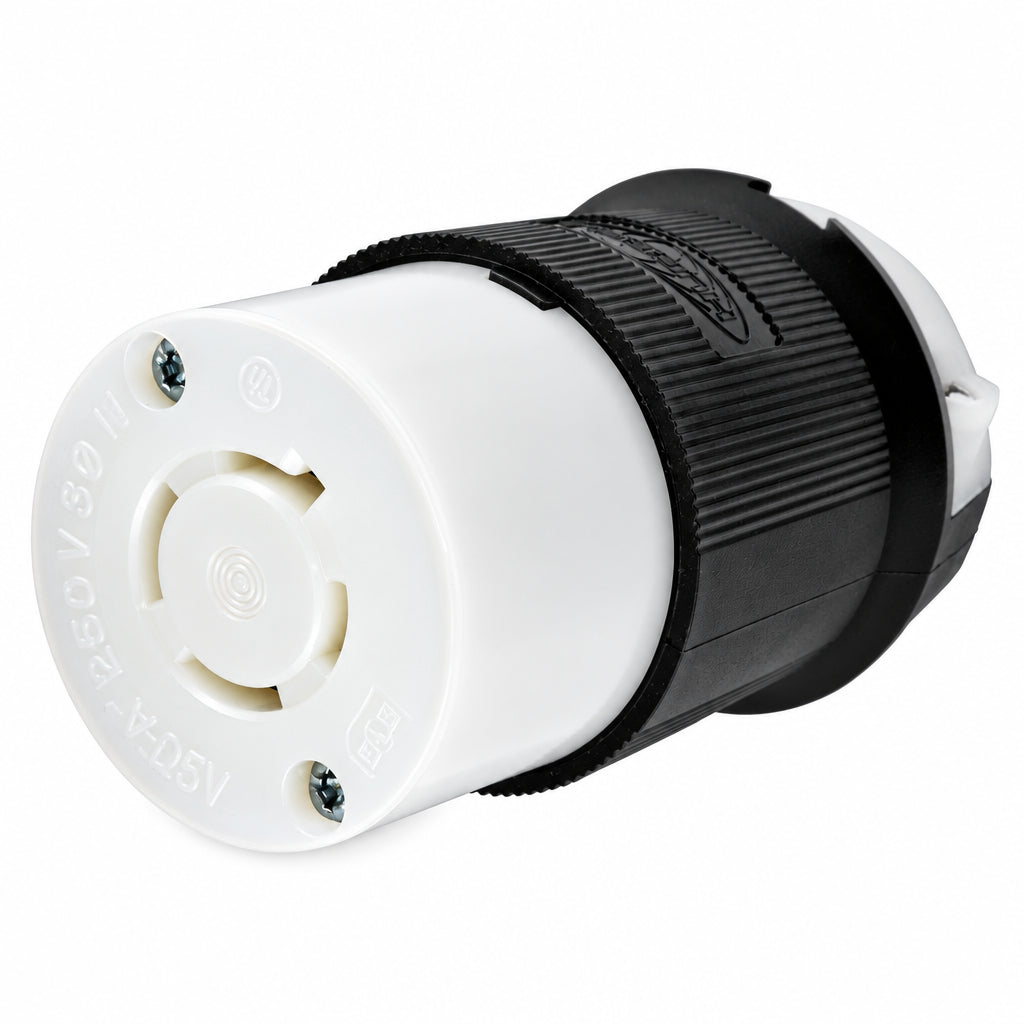

Hubbell 20 Amp 250V Industrial Grade Twist-Lock Female Connector Body, Model HBL2423
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
Connect three-phase equipment with this Hubbell Twist-Lock female connector body for 20 A, 250 VAC power connections. Its locking design, nylon housing and brass contacts support cord connections for industrial equipment in indoor dry environments. Pressure terminal screws accommodate 16–8 AWG stranded copper conductors for equipment cord assembly and replacement.
Specifications
| Type | Industrial-grade Twist-Lock female connector body |
| NEMA configuration | L15-20R |
| Electrical rating | 20 A, three-phase 250 VAC |
| Poles / wires | 3-pole, 4-wire |
| Termination | Pressure terminal screws; 16–8 AWG stranded copper wire only |
| Cable range | 0.350–1.150 in. |
| Materials | Nylon housing / cord clamp; brass contacts; clear polycarbonate terminal retainer; nickel-plated steel assembly screws and cold-rolled steel terminal clamp; #10-32 brass terminal screws (Phillips / slotted / Robertson) |
| Colour | Black |
| Dimensions | 2.33 × 2.33 × 3.86 in. |
| Maximum horsepower | 3 hp |
| Current interrupting | Certified at full rated current |
| Dielectric strength | Withstands 2,000 V minimum |
| Environmental conditions | Indoor dry unless protected by additional means; IP20 suitability |
| Temperature rating | 75°C maximum continuous; −40°C minimum without impact; −25°C minimum with impact |
| Flammability | HB or better per UL 94 or CSA C22.2 No. 0.6 |
| Standards | Listed to UL 498; certified to CSA C22.2 No. 42; Fed. Spec. W-C-596 |
