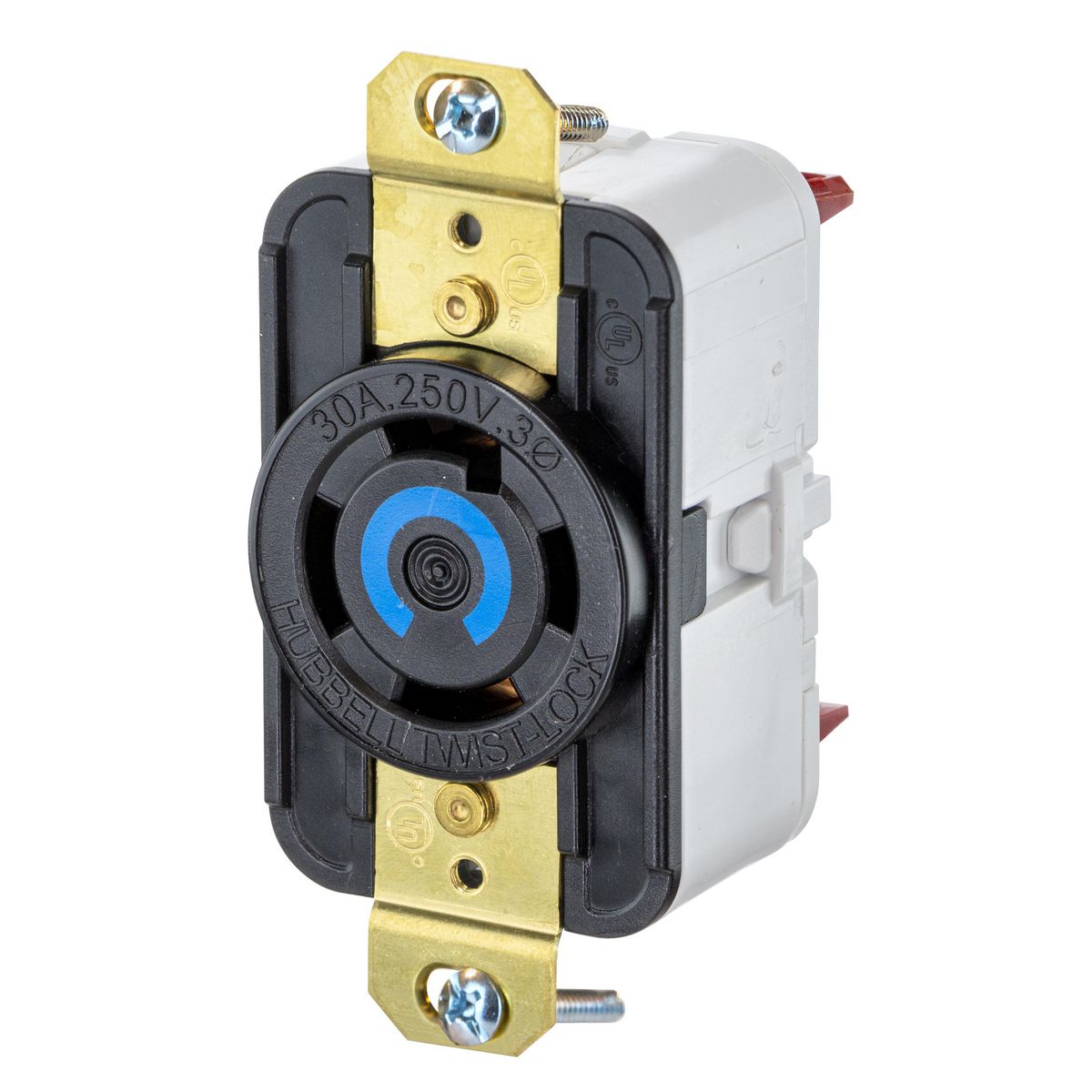

Hubbell 30 Amp 250V EdgeConnect Twist-Lock Receptacle w/ Spring Termination, Model HBL2720ST
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
Speed up electrical installations with Hubbell’s EdgeConnect™ Twist-Lock® receptacle, featuring spring termination that requires no screwdriver or torque wrench and eliminates strand relaxation. Its high-impact, abuse-resistant nylon face suits demanding job-site applications, while voltage-based face colour coding helps identify matching devices. Rated for 30 A at 250 VAC, this locking receptacle is designed for dry-location power connections.
Specifications
| Brand | Hubbell |
| Product Type | EdgeConnect™ Twist-Lock® receptacle |
| Current Rating | 30 A |
| Voltage Rating | 250 VAC |
| NEMA Configuration | L15-30R |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Termination | Spring termination; no screwdriver or torque wrench required |
| Solid Wire Size | 14–10 AWG |
| Stranded Wire Size | 14–8 AWG, including compact stranded |
| Face Material | High-impact, abuse-resistant nylon |
| Colour | Black |
| Location Rating | Dry location |
| Dimensions (L × W × H) | 3.28 × 1.7 × 1.468 in |
| Product Weight | 0.154 lb |
| UPC | 783585788555 |
