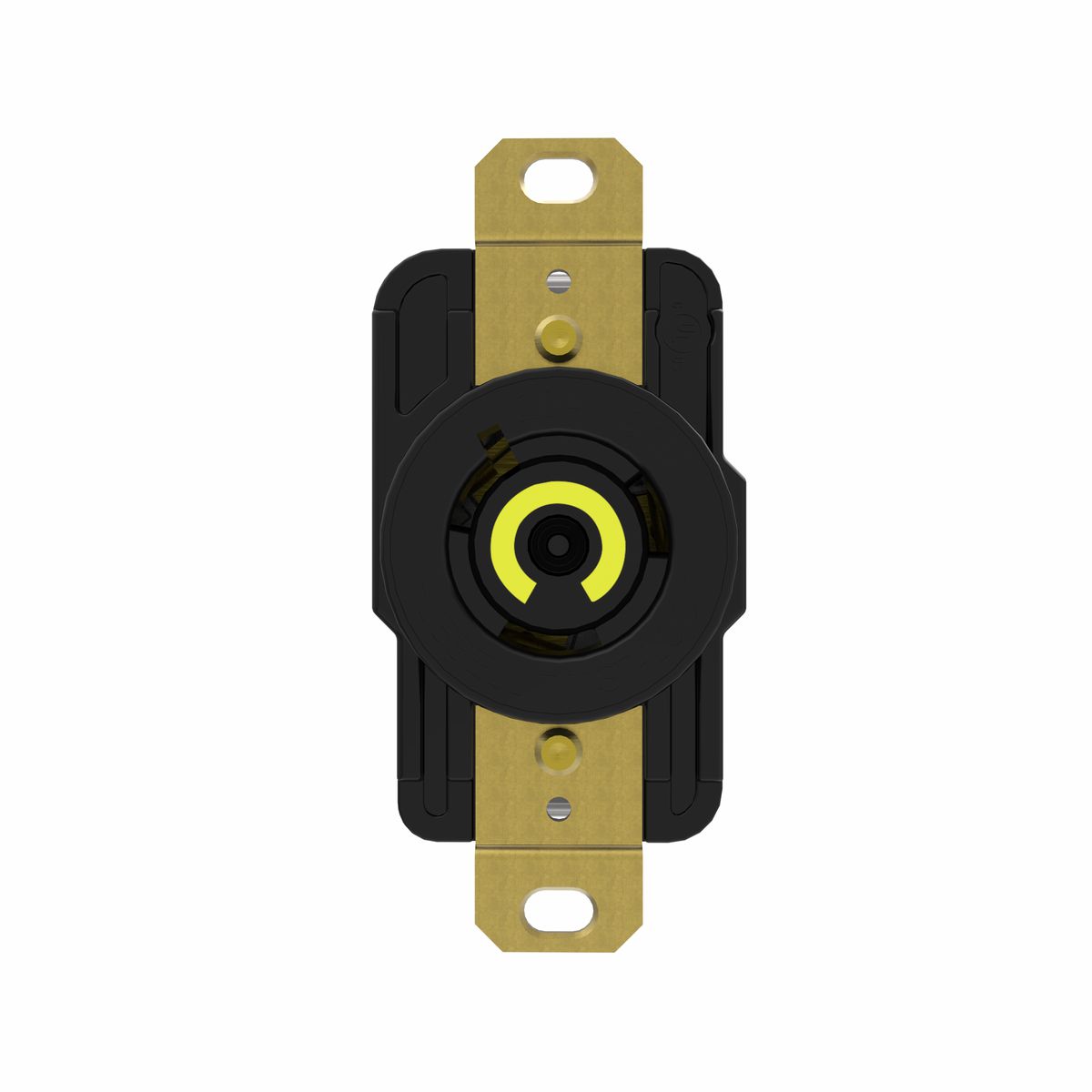

Hubbell 20 Amp 125V EdgeConnect Twist-Lock Receptacle w/ Spring Termination, Model HBL2310ST
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.

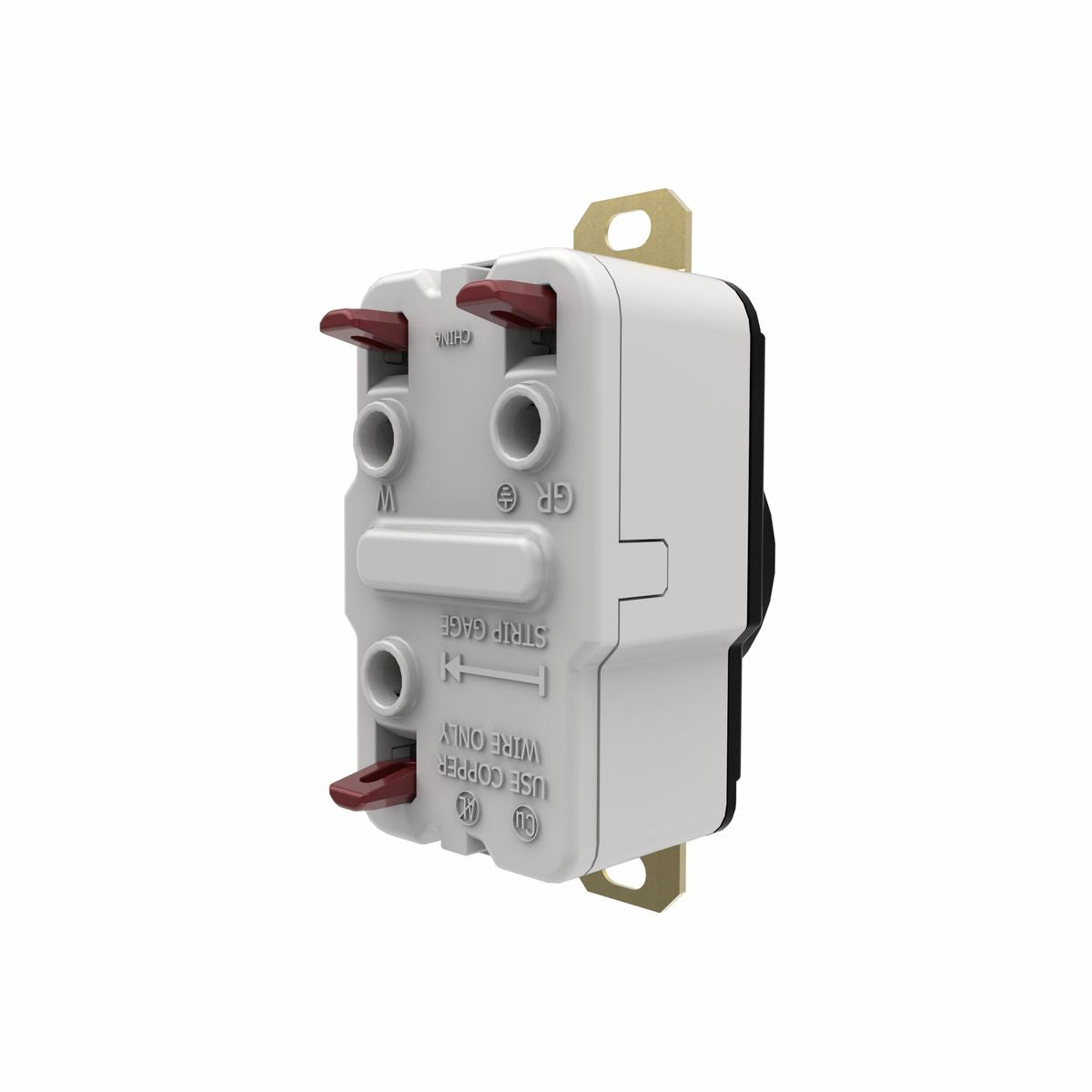

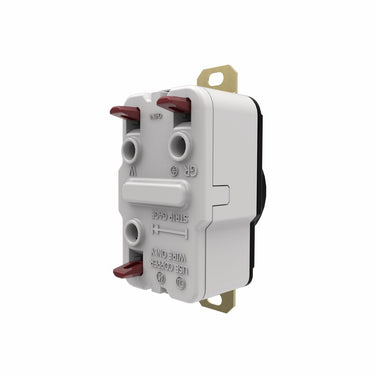

Speed up heavy-duty industrial wiring with this Hubbell EdgeConnect™ Twist-Lock® receptacle, featuring spring termination that eliminates the need for a screwdriver or torque wrench and prevents strand relaxation. Its high-impact, abuse-resistant nylon face stands up to demanding job-site use, while voltage-based face colour coding helps crews identify and mate the proper devices. Rated 20 A at 125 V, it is designed for indoor dry installations unless protected by additional means.
Specifications
| Application | Heavy-duty industrial |
| Device Type | Single Twist-Lock receptacle |
| Termination | EdgeConnect spring termination |
| Current Rating | 20 A |
| Voltage Rating | 125 V |
| Phase | Single phase |
| NEMA Configuration | L5-20R |
| Number of Wires | 3 |
| Wire Size | 14–10 AWG solid; 14–8 AWG stranded, including compact stranded |
| Dielectric Strength | Withstands 2,000 V minimum |
| Material | Nylon; high-impact, abuse-resistant face |
| Colour | Black |
| Environmental Conditions | Indoor dry unless protected by additional means |
| Temperature Rating | Maximum continuous: 75°C; minimum: -40°C without impact |
| Dimensions (L × W × H) | 3.28 × 1.70 × 1.47 in |
| Product Weight | 0.151 lb |
| Insulation | N/A |
| Certifications and Ratings | UL Listed to UL 498; CSA Certified to C22.2 No. 42; WR rating |
| UPC | 783585569543 |
