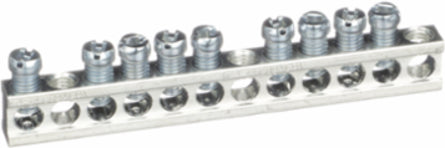

Square D Loadcenter Equipment Ground Bar Kit, 9 Connectors, Model PK9GTA
Square D Loadcenter Equipment Ground Bar Kit, 9 Connectors, Model PK9GTA
Pickup available at IES - Mississauga
Usually ready in 4 hours

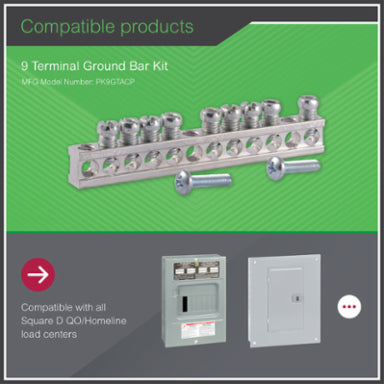

The Square D PK9GTA is a 9-circuit ground bar kit designed for direct installation in QO load centres, providing a clean and code-compliant grounding solution for residential and light commercial panel builds. Rated to 225 A and accepting a wide range of conductor sizes — from AWG 14 copper down to AWG 4 aluminum/copper — this bar handles the full range of branch circuit and feeder grounding needs in a single accessory. The compact 96 mm bar mounts directly to the back of the enclosure with two included screws, keeping the panel interior organised and inspection-ready. CSA Certified and UL Listed, with Green Premium environmental status and an 18-month warranty.
Specifications
| Maximum Amperage | 225 A |
| Number of Connectors | 9 |
| Wire Size | AWG 14–AWG 10 copper; AWG 12–AWG 10 aluminum; AWG 8 aluminum/copper; AWG 6–AWG 4 aluminum/copper |
| Bar Length | 96 mm (3.78 in) |
| Maximum Length of Segment | 80 mm (3.15 in) |
| Height | 0.437 in (11.10 mm) |
| Depth | 0.312 in (7.92 mm) |
| Tightening Torque | 20 lb.in (AWG 14–AWG 10 copper); 20 lb.in (AWG 12–AWG 10 aluminum); 35 lb.in (AWG 6–AWG 4) |
| Device Mounting | Direct mounting back of enclosure |
| Material | Bar |
| Provided Equipment | 2 screws |
| Range of Product | QO |
| Country of Origin | US |
| Product Certifications | CSA Certified, UL Listed |
| RoHS Compliance | Pro-active compliance (out of EU RoHS legal scope) |
| REACH Compliance | Free of Substances of Very High Concern above threshold |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Environmental Disclosure | ENVPEP2212001 |
| Warranty | 18 months |
