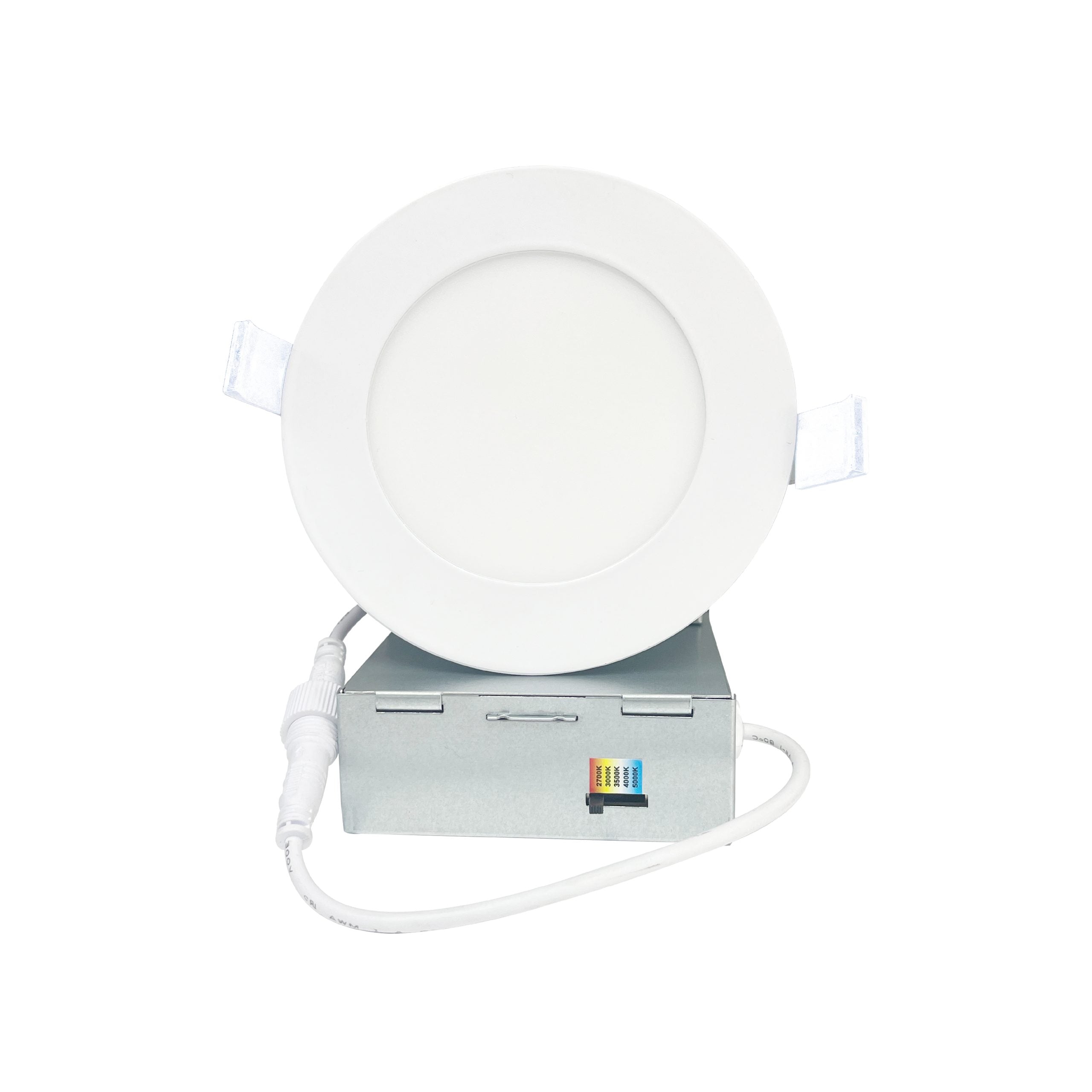

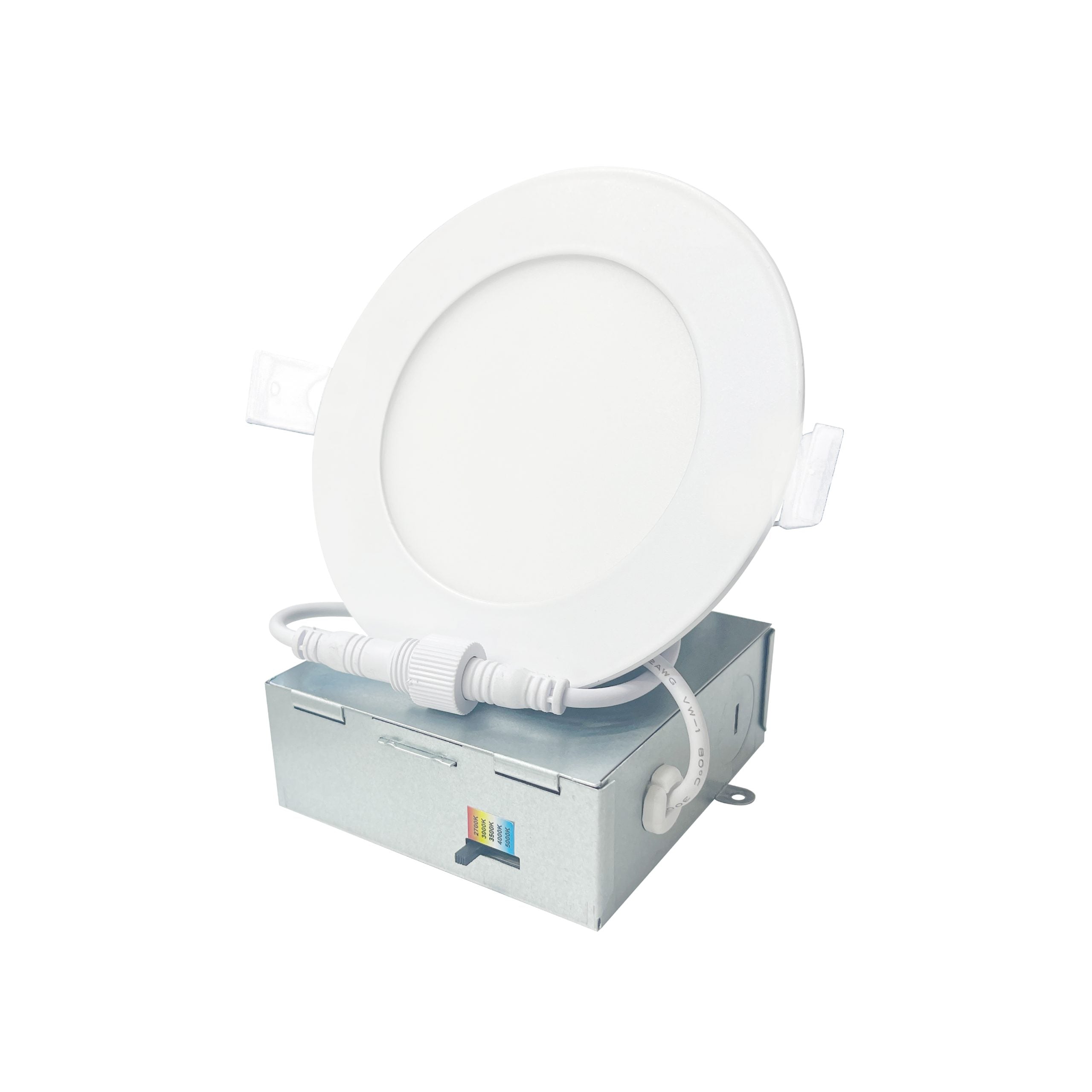

RAB Design 4" LED Recessed Dimmable Downlight, White, Model 83755
RAB Design 4" LED Recessed Dimmable Downlight, White, Model 83755
Pickup available at IES - Mississauga
Usually ready in 4 hours
The RAB Design RDL4-LED10 is a 4" edge-lit LED recessed downlight built for professional electricians and contractors tackling new construction and renovation projects in residential and commercial spaces. Delivering 645 lumens at just 10.2W, this slim-profile pot light installs quickly with external mounting tabs and a 26.5" cable — no separate junction box fishing required. The on-driver 5-position CCT selector lets you dial in the right colour temperature on the job site without returning to the supply house, while TRIAC dimming (10–100%) ensures compatibility with standard dimmer circuits already roughed in. IC-rated for direct insulation contact, it meets the demands of energy-efficient builds and retrofit upgrades alike.
Specifications
| Model | 83755 |
| Size | 4" |
| Wattage | 10.2W |
| Lumens | 645.3 lm |
| Efficacy | 63.3 lm/W |
| Voltage | 120V |
| Colour Temperature (CCT) | Selectable — 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 81.4 |
| Dimming | TRIAC (10% – 100%) |
| Power Factor | 0.97 |
| LED Lifespan (L81) | 100,000 hours |
| Housing | Die-cast aluminium, powder-coated white |
| Lens | Polystyrene frosted lens |
| Profile | Fixture <0.5", junction box <1.4" |
| Cable Length | 26.5" |
| Conduit Entries | Two 1/2" knockouts (junction box) |
| Operating Temperature | -20°C to +40°C (-4°F to +104°F) |
| Certifications | ETL, IC Rated, Energy Star, Wet Location |
| Warranty | 5 Years |
