RAB Design Lighting
MFR #099955
RAB Design 2ft LED Linear Strip Light, White, Model 99955
$43.21
/
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
The RAB Design SLE2 2 ft LED Linear Strip Light is built for the demands of professional electricians and contractors who need a reliable, high-performance fixture that installs quickly and performs consistently. With a toolless opening design, externally adjustable CCT and wattage selectors, and a wide 120–347V operating range, this strip light is equally at home in commercial tenant improvements, industrial retrofits, and residential utility spaces. Its lumen-selectable output and 0–10V dimming capability give you the flexibility to meet spec on virtually any project — without carrying multiple SKUs to the job site.
Specifications
| Light Output | Lumen Selectable — 3600 / 2900 / 2200 lm |
| Efficacy | 147 lm/W |
| Wattage | 25 / 20 / 15W (Selectable) |
| CCT | 3000 / 3500 / 4000 / 5000K (Selectable) |
| CRI | 85 |
| Beam Angle | 130° |
| Voltage | 120–347V |
| Dimming | 0–10V (Dim to Off), 5–100% |
| Surge Protection | 2kV |
| Power Factor | >0.99 |
| THD | 9% |
| Daisy Chain | 6A Max (up to 22 fixtures at 120V / 62 fixtures at 347V) |
| Replaces Up To | 2-Lamp F21T5 |
| Housing | Steel Sheet Metal, White Powder Coat Finish |
| Lens | Frosted Polycarbonate |
| Weight | 2.21 lbs |
| Ambient Operating Temperature | -35°C to 45°C (-31°F to 113°F) |

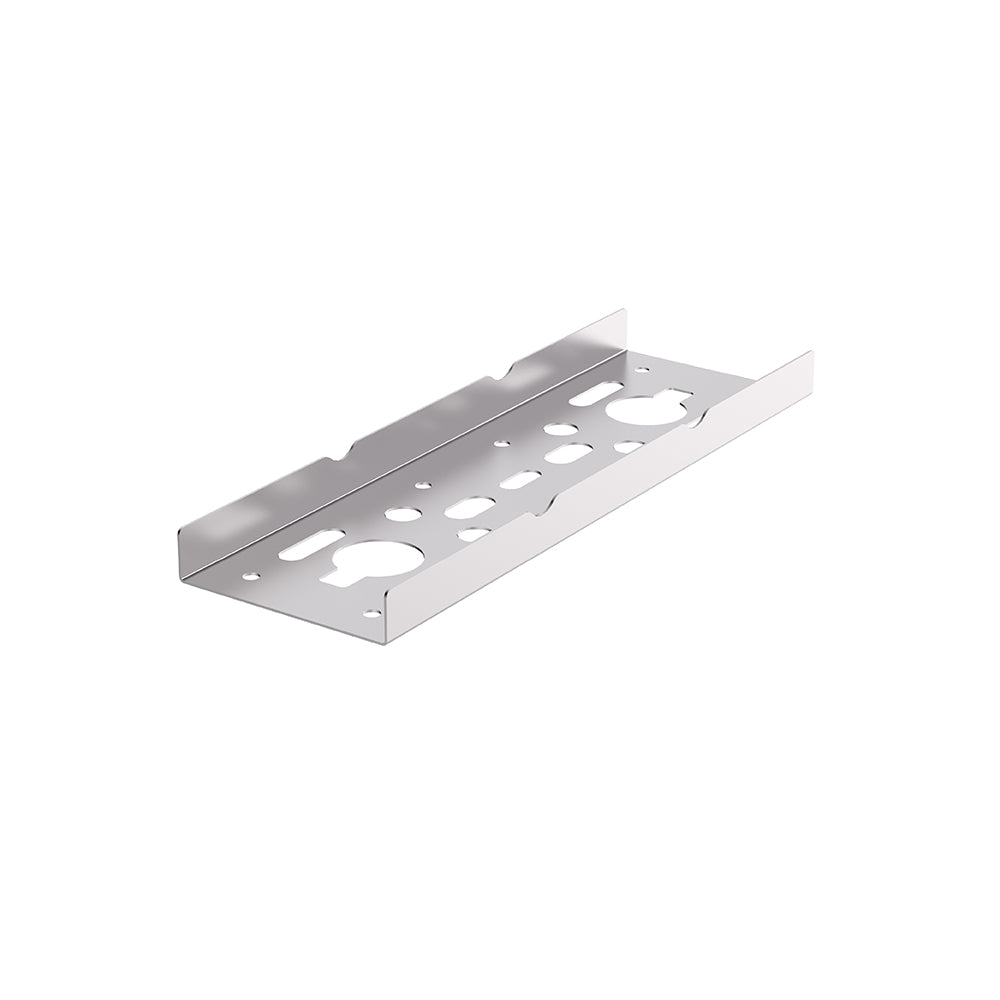

| Mounting | Surface Mount; Suspension Mount (Kit Sold Separately) |

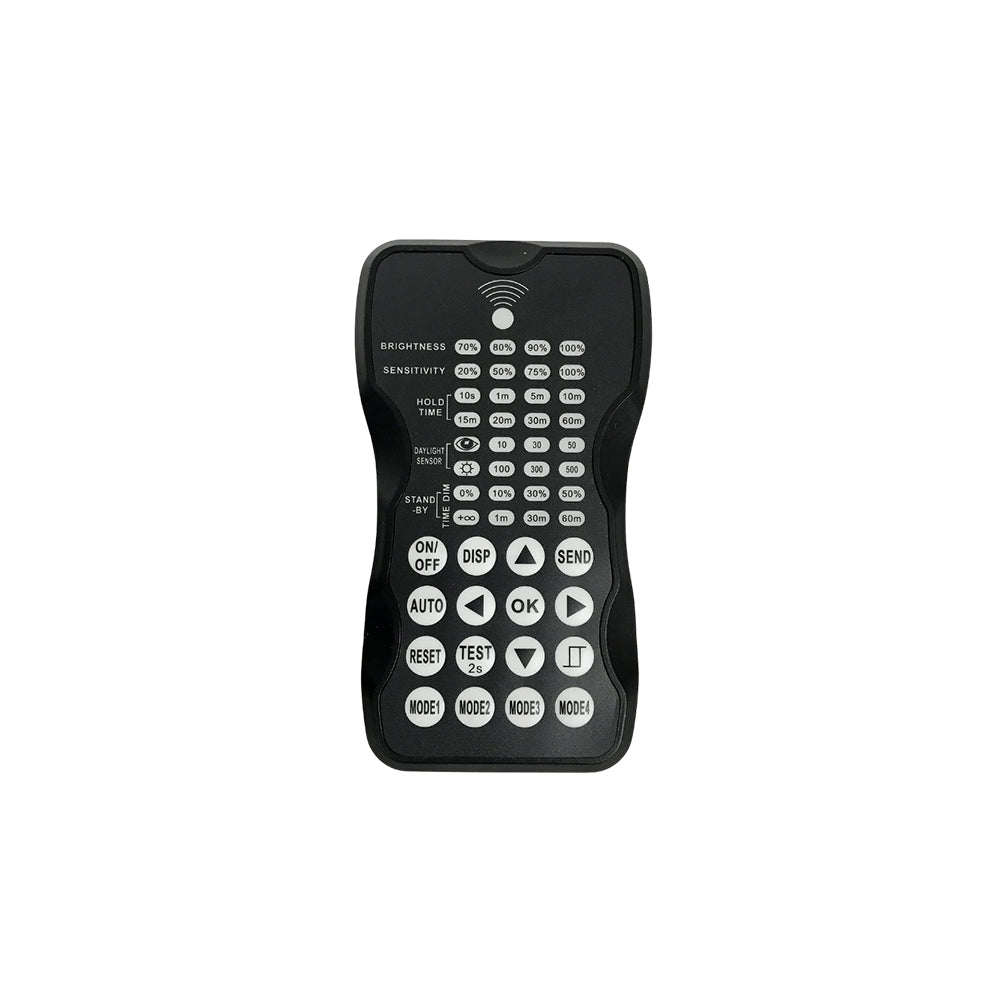

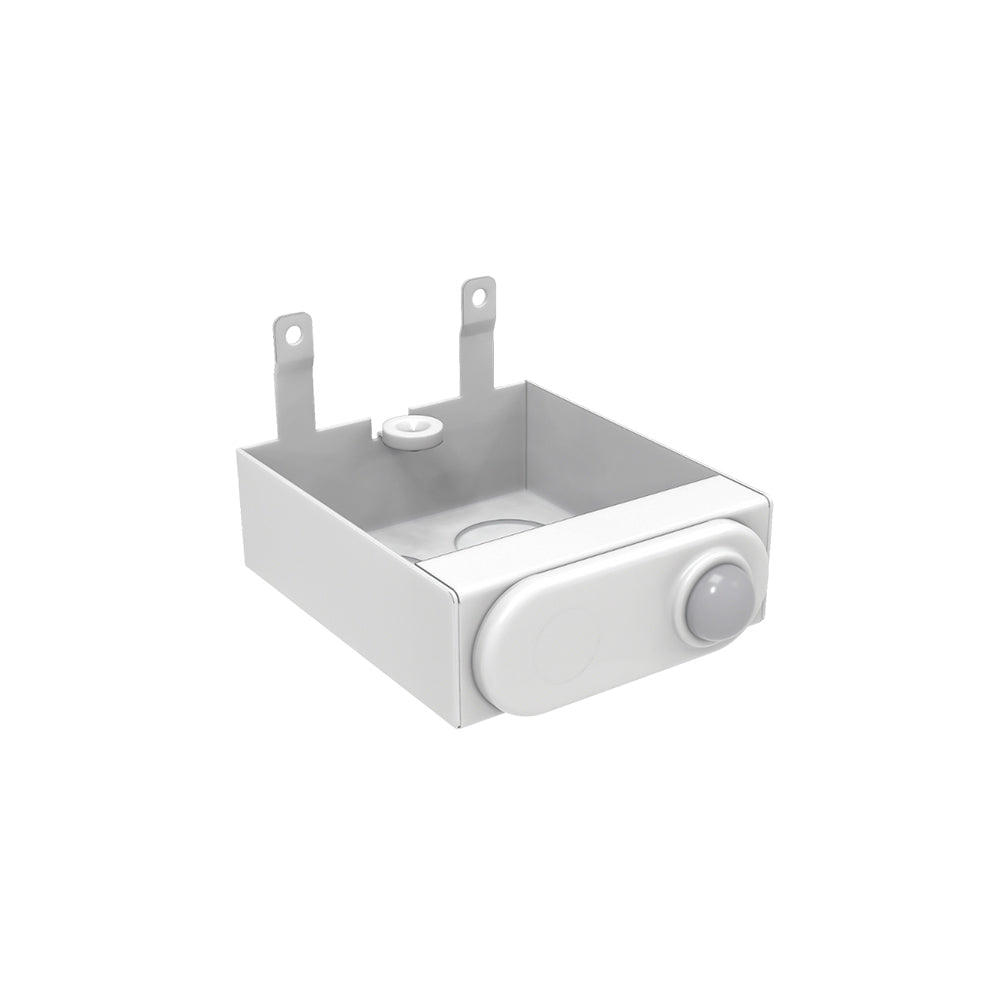

| Sensor Options | Dimming High Frequency Microwave Motion Sensor with Remote Control; Bluetooth PIR Motion & Daylight Harvest Sensor (field-installed, compatible with ControlLED) |
| Certifications | cULus Listed (UL 1598, CSA C22.2 No. 250.0); DLC Standard & Premium |
RAB Design 2ft LED Linear Strip Light, White, Model 99955
$43.21
/
