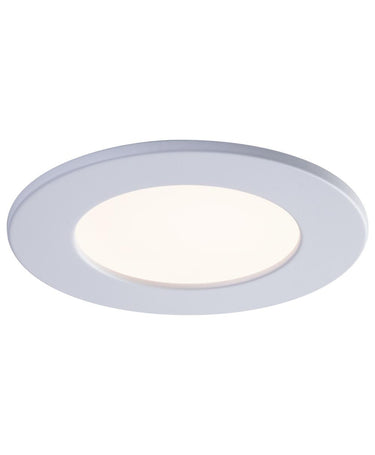

SlimLED Original, an entry-level fixture designed to meet both plenum and budget constraints. Small but mighty, the SlimLED original fixture boasts reliable spring-loaded clips, a color-selectable switch, wet location rating, and Energy Star. This ultra-thin fixture is packed with prime features, making it optimal for hallways, closets, basements, and more.

Body
Durable airtight aluminum body with UV stable paint and white PMMA diffuser lens for low glare. Includes silicone gasket for wet location applications.

LED Characteristics
This general application light fixture features a 9 watt LED module that maintains uniform intensity producing up to 680 lumens; with a typical CRI of 90. Available with 5 step CCT switch on the driver (2700 K, 3000 K, 3500 K, 4000 K and 5000 K).

Dimming
100%-10% dimming capability. This fixture is compatible with industry standard forward/reverse phase or TRIAC/ELV dimmers. For compatible dimmers, visit www.liteline.com/ SlimLEDOriginal.

Beam Spread
The fixture lens provides 110° beam spread.

Mounting
Includes two spring-loaded clips to attach to any ceiling material.

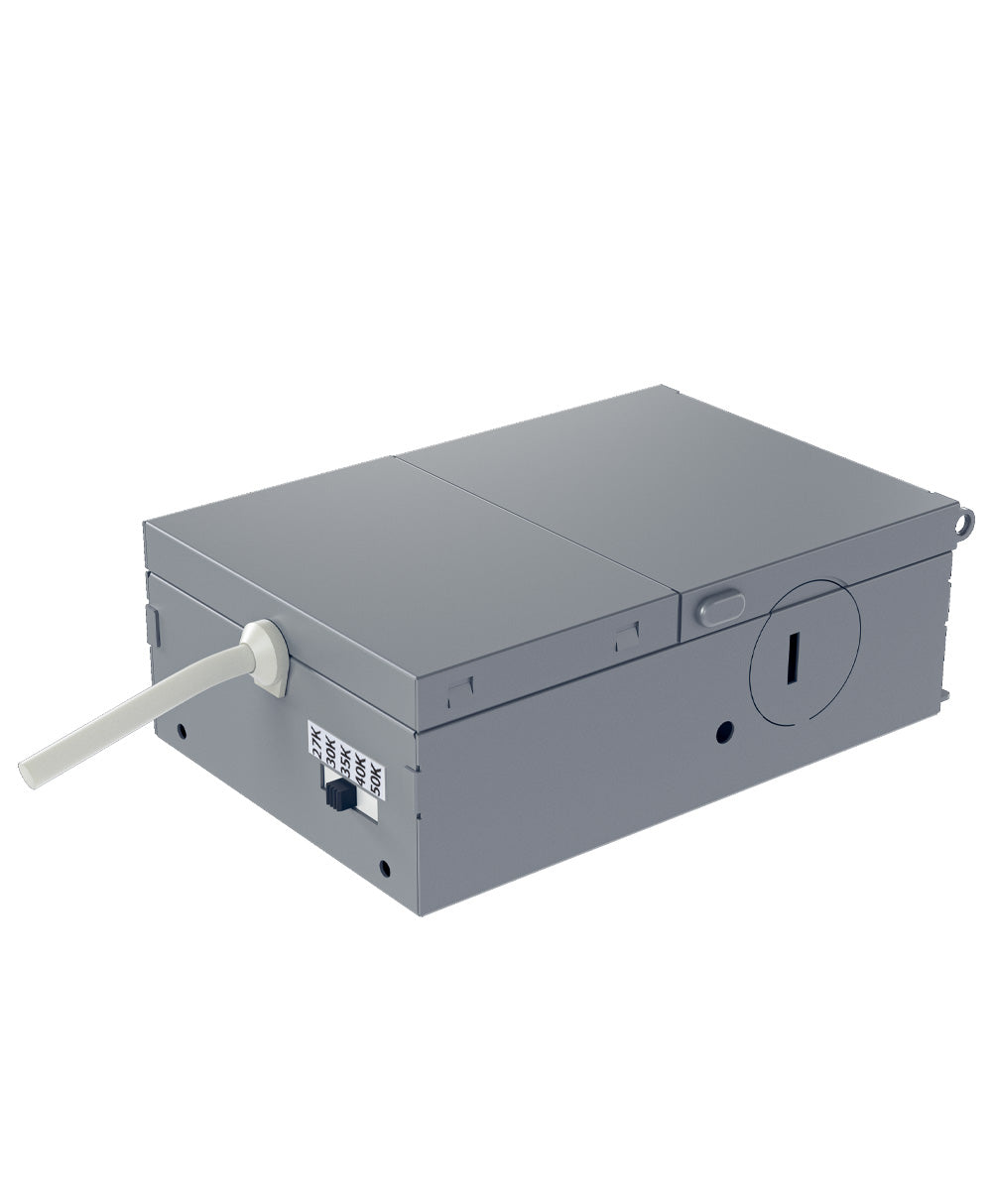

LED Driver
Steel hardwire box with 200mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 18" plenum-rated FT4 wire with a DC 2.1 connector from driver to fixture.

Quick Connect push-in terminals
“Quick connect” push-in terminals for fast and easy wiring.

Operating Temperature
-30°C~35°C (-22°F~95°F)

Environment
• Suitable for wet locations.
• Suitable for insulated ceiling applications.
• Indoor/outdoor
