Greenlee Drill/Tap Bit (Size #8), Model DTAP8-32
Pickup available at IES - Mississauga
Usually ready in 4 hours

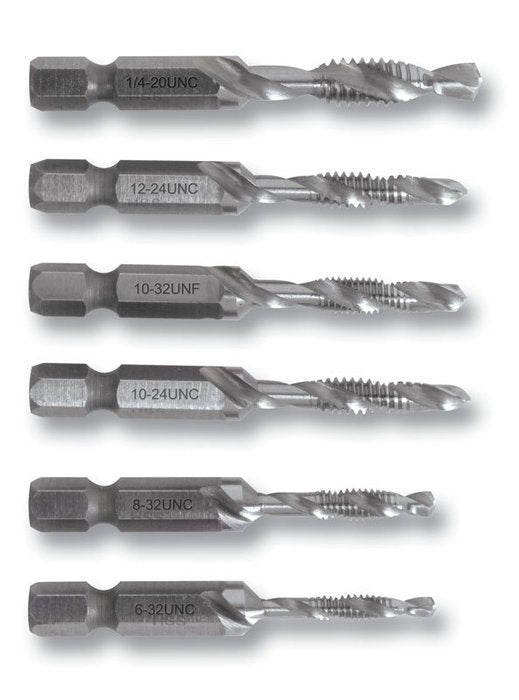

This Greenlee 8-32 NC drill and tap bit completes hole drilling, tapping, and deburring/countersinking in a single power drill operation — eliminating multiple tool changes on panel enclosure work, equipment mounting, and steel strapping where the 8-32 thread is the standard fastener size. Hardened high-speed steel construction provides significantly longer service life than carbon-steel alternatives, while the back-tapered design beyond the tap prevents thread damage from over-drilling, and a secondary deburr/countersink zone beyond the back taper delivers a clean, finished hole in one pass. Rated for up to 10 gauge metal, this bit is a reliable single-size replacement or addition for crews already running Greenlee’s drill/tap system.
Specifications
| Material | High-speed steel (HSS) |
| Thread Size | #8 |
| Threads Per Inch | 32 TPI |
| Thread Type | NC (National Coarse) |
| Point Type | Split point with web thinning |
| Maximum Material Thickness | 10 gauge |
| Compatible Materials | Mild steel, copper, brass, and aluminium |
| Operation | Drill, tap, and deburr/countersink in one pass |
