GREENLEE
MFR #CMI-600
UPC #783310021919

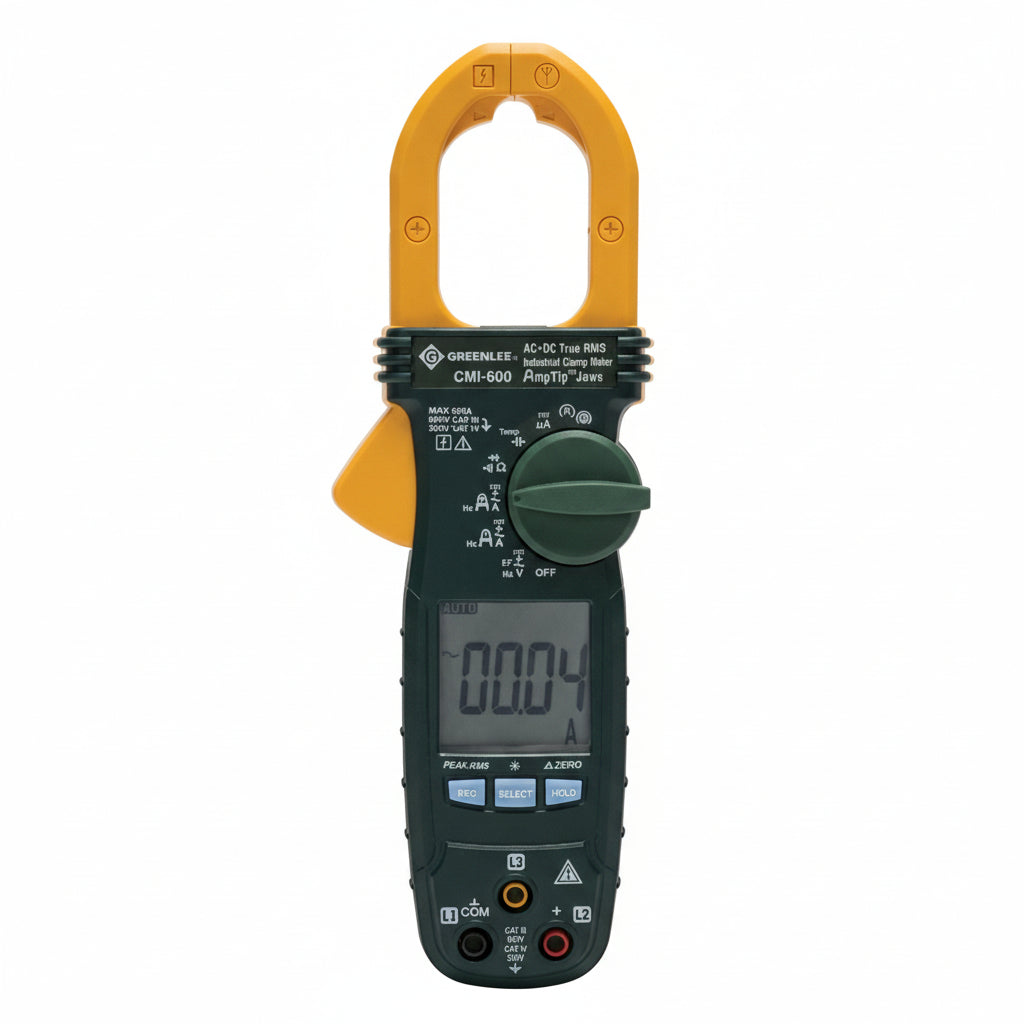

Greenlee Industrial AC/DC Clamp Meter, Model CMI-600
$541.86
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories

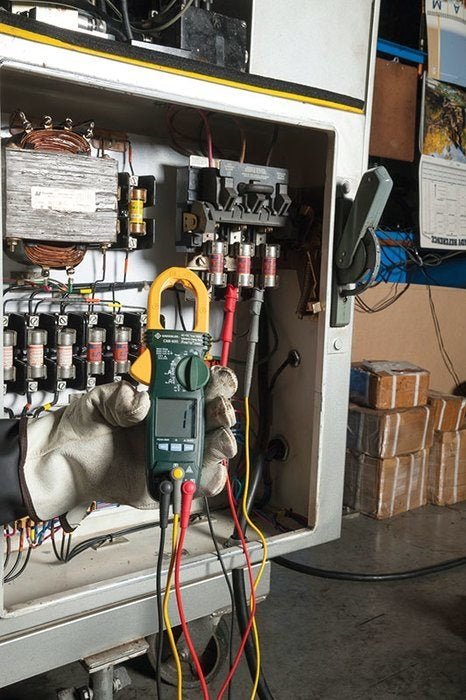

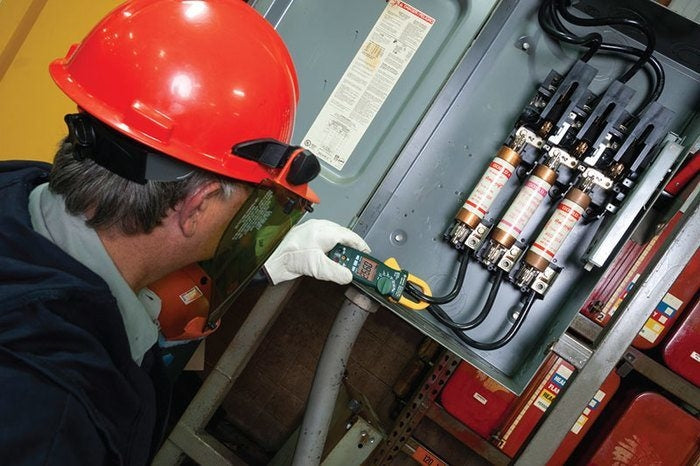

The Greenlee Industrial AC/DC Clamp Meter is a True RMS instrument built for electricians who need accurate measurements on variable frequency drives, motor circuits, and mixed AC/DC systems on the job site. Its AmpTip™ technology improves precision on small-gauge wiring and low-current applications, while dual voltage detection modes — non-contact or single test lead — speed up panel and circuit diagnostics. Rated CAT III 600V / CAT IV 300V and backed by a lifetime warranty, it handles continuity, phase sequence, motor rotation, capacitance, temperature, and conductor fault testing in a single tool.
Specifications
| Current Measurement | 60 A, 600 A AC+DC; DC microamps |
| Voltage Measurement | 600 V AC+DC |
| True RMS | AC+DC True RMS |
| Display | LCD, 6000 count |
| Jaw Opening | 1.18 in (30 mm) |
| Frequency Rating | Voltage and AmpTip™ current: 50/60 Hz; High current: 50–400 Hz |
| Resistance Measurement | 600 Ω, 6 kΩ, 60 kΩ |
| Measurement Category | CAT III 600V, CAT IV 300V |
| Standards & Certifications | CAT III, C/US UL Listed, CE |
| Included Accessories | Test leads and clips, carrying case, 2 × 1.5V AAA batteries |
| Replacement Parts | 02714 test leads and clips; TC-10 carrying case |
| Warranty | Lifetime |
