GREENLEE
MFR #CMF-110
UPC #783310088530

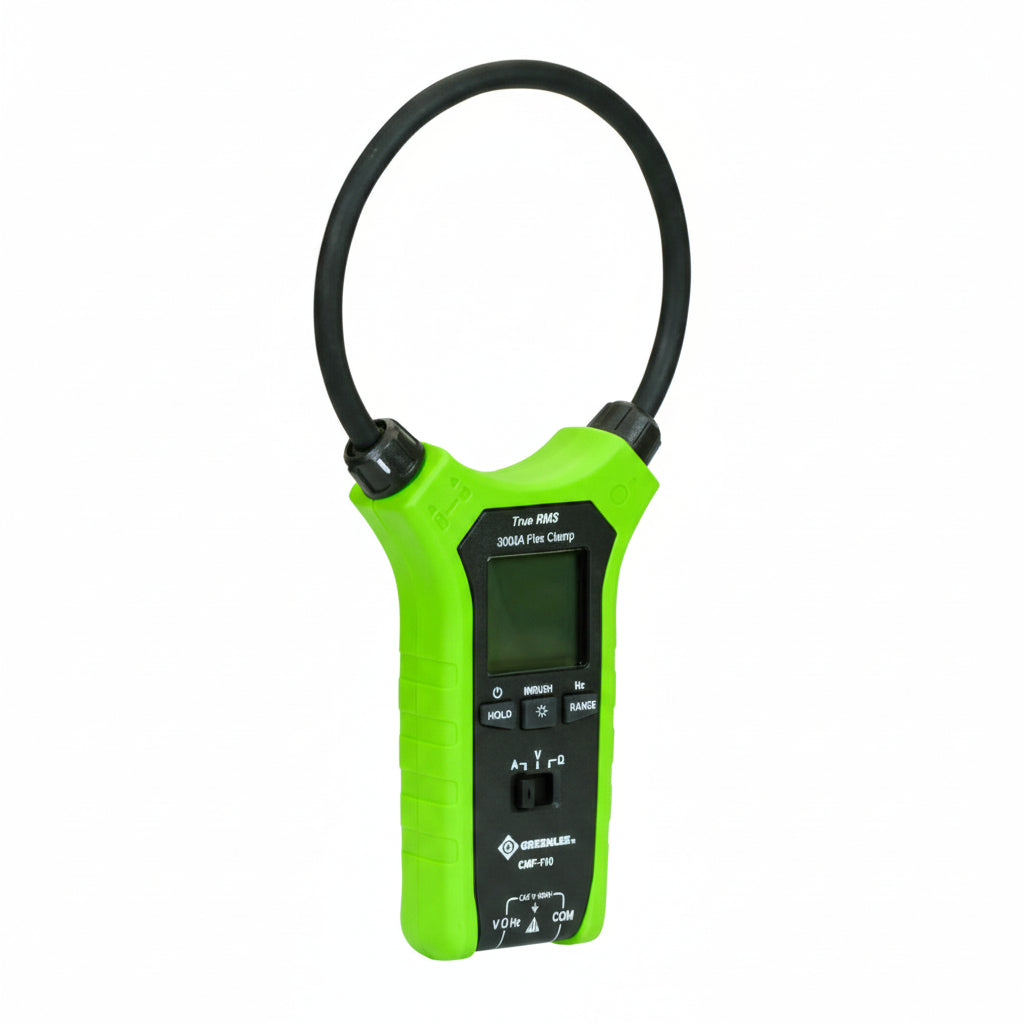

Greenlee 10" Flex Clamp Meter, Model CMF-110
$495.53
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories

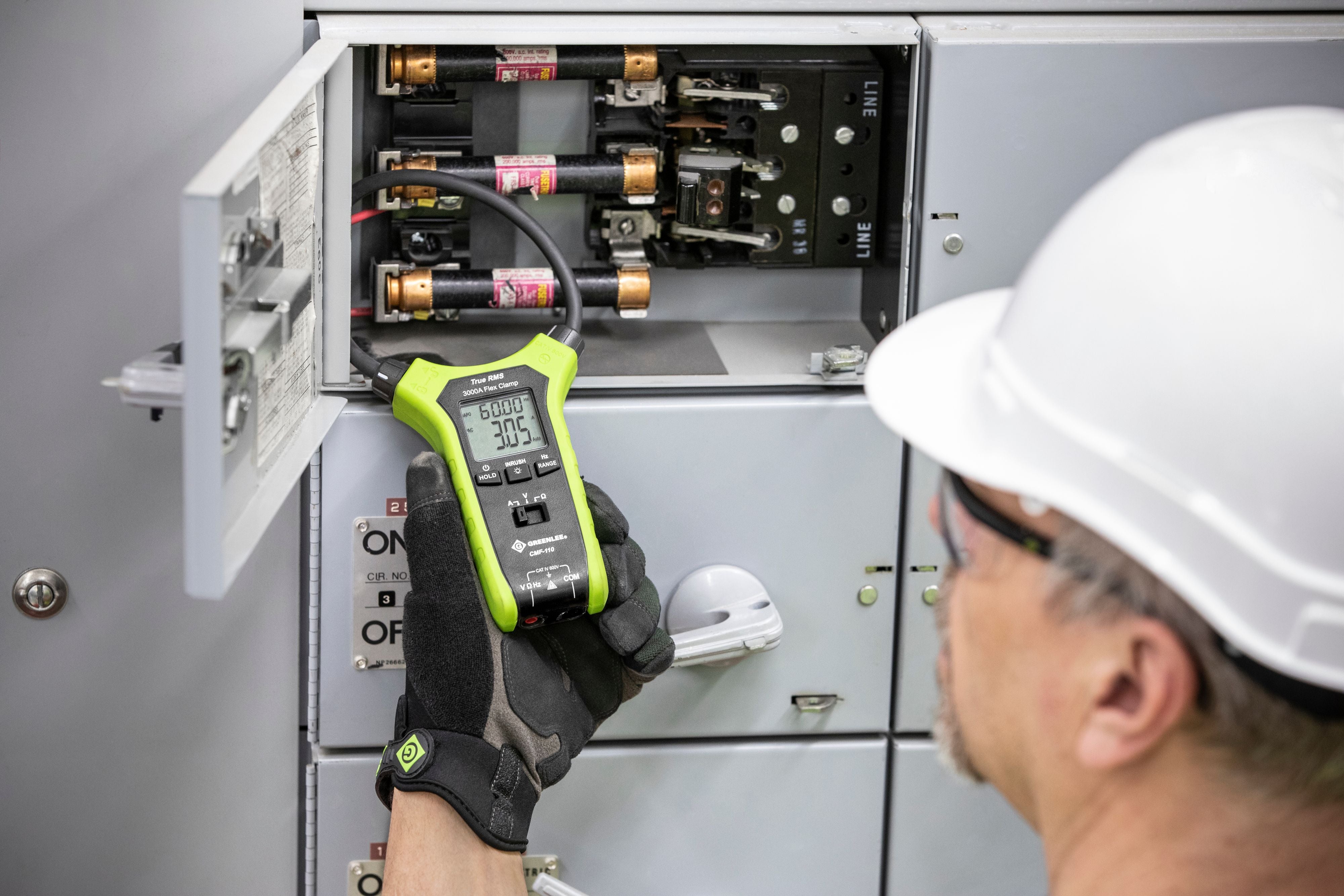

The Greenlee CMF-110 is a flexible Rogowski coil clamp meter built for electricians working in tight spaces, deep panels, and congested cable trays where rigid jaws can't reach. It delivers TRUE RMS measurements across AC current up to 3000A, AC voltage, resistance, frequency, and inrush current, making it a reliable all-in-one diagnostic tool on any job site. Rated CAT IV 600V and CETLUS/CE listed, it meets the safety demands of commercial and industrial electrical work.
Specifications
| Type | 10" Flex Clamp Meter |
| Compliance | CE, CETLUS |
| Voltage Rating | 6V / 60V / 600V |
| Amperage Rating | 30A / 300A / 3000A |
| Frequency Rating | 20 – 30kHz |
| Accuracy (Voltage) | ±1.2% + 300mV |
| Display | LCD |
| Operating Temperature | 0 to 50°C |
| Coil Diameter | 10 in. (25.4 cm) |
| Resistance | 60.0MΩ |
| Inrush Current | 80ms, minimum 3.0A |
| Safety Category Rating | CAT IV 600V |

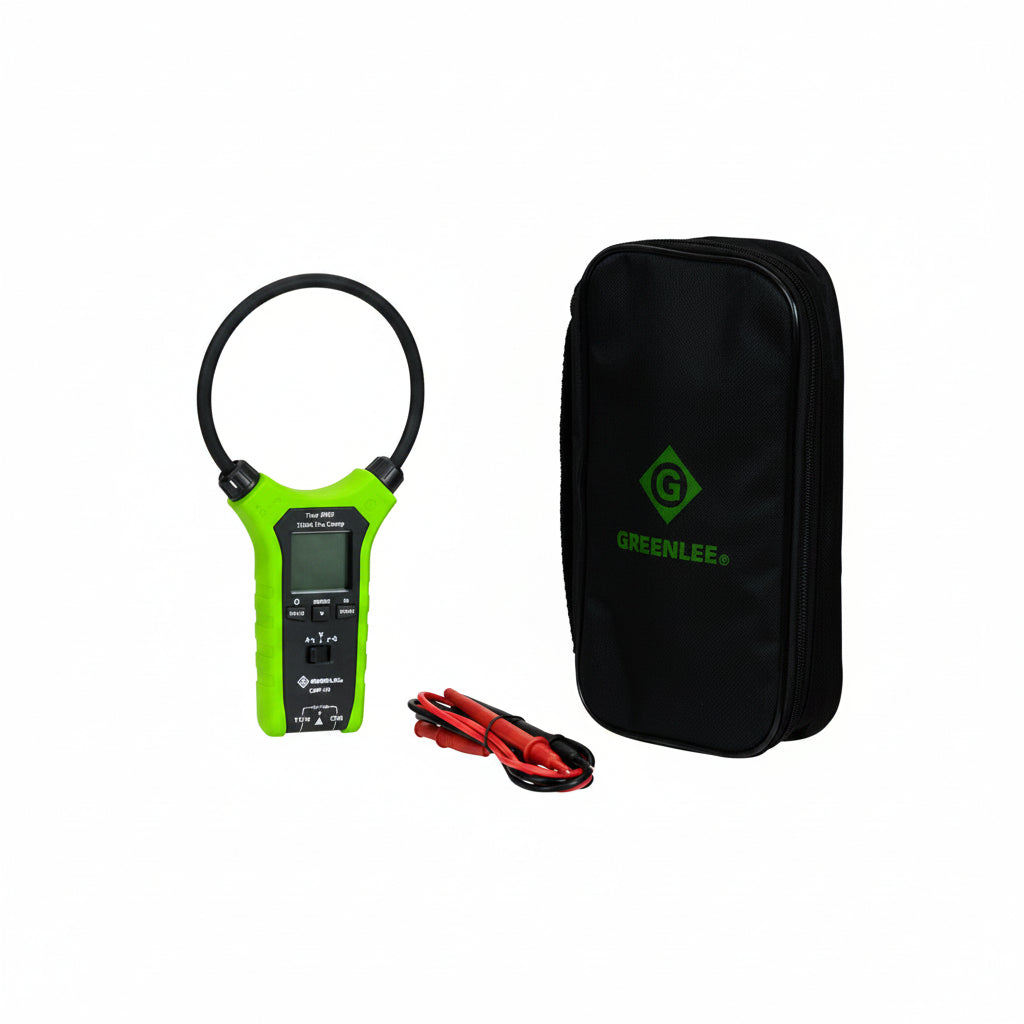

| Accessories Included | Leads, Carrying Case, 3 AAA Batteries |
| Optional Accessories | Test Lead Replacement Kit (CMF-LK), Replacement Carrying Case (CMF-B) |
Greenlee 10" Flex Clamp Meter, Model CMF-110
$495.53
/
