Hubbell Single Gang Device Box (3" Deep, NMD90/AC90 Pryouts) - Pack of 50, Model 1004LHU
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.

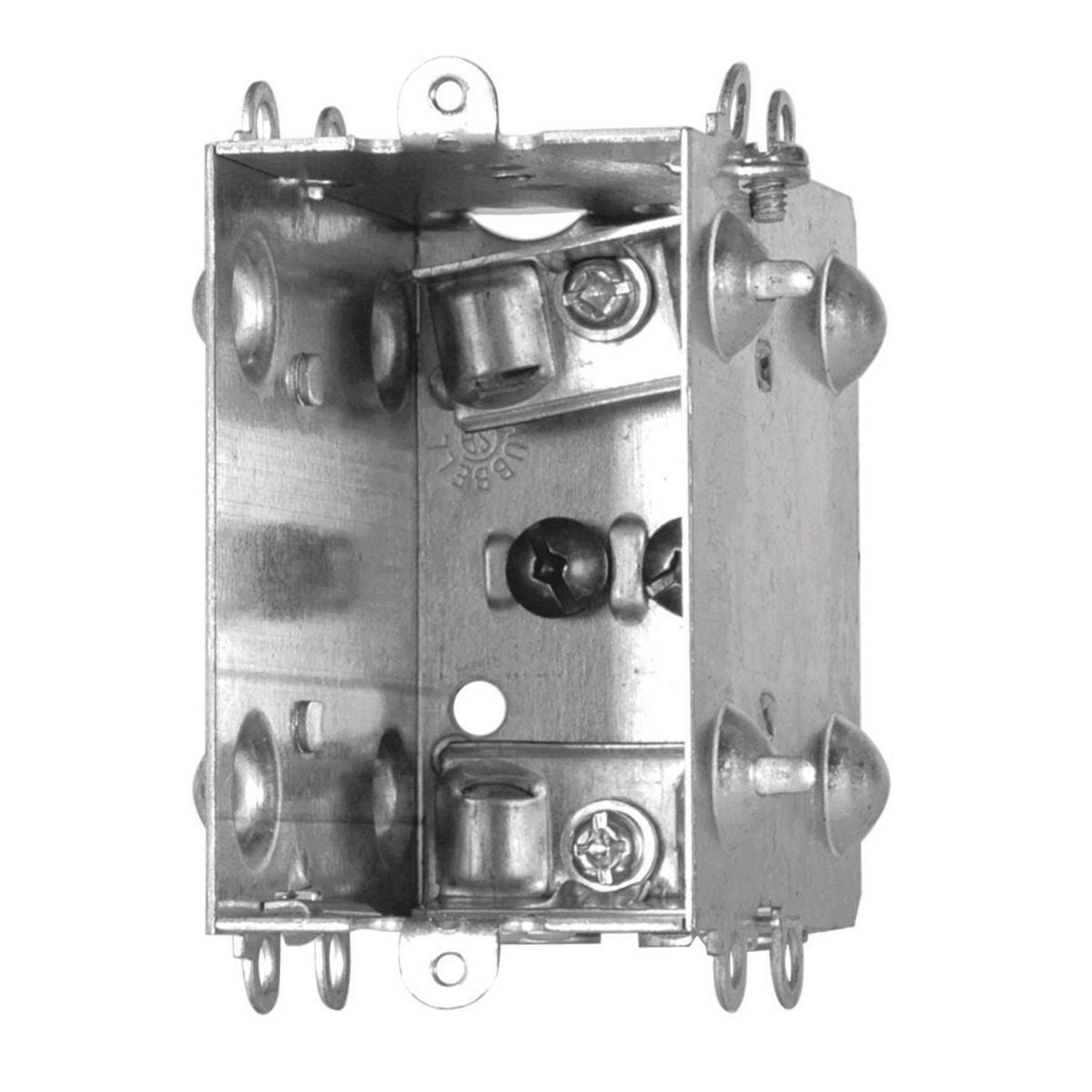

This gangable steel device box provides 15 cu. in. of capacity and a 3 in. depth for installing GFCIs, dimmers and thermostats where extra wiring space is needed. Universal cable clamps accommodate non-metallic sheathed and armoured cable, while a raised ground screw supports grounding connections on the job site.
Specifications
| Product Type | Single-gang device / switch box |
| Depth | 3 in. |
| Capacity | 15 cu. in. |
| Material | Steel |
| Construction | Welded |
| Number of Gangs | 1 |
| Gangable | Yes |
| Bracket | No bracket |
| Plaster Ears | No |
| Raised Ground Screw | Yes |
| Cable Pryouts | 4 at ends |
| Cable Entry | Universal cable clamps |
| Wiring System | Non-metallic sheathed (NMD90) / armoured cable (AC90), 14/2–8/3 |
| Application | GFCIs, dimmers, thermostats and installations requiring extra cubic capacity |
| Weight | 0.51 lb |
| Certification | CSA listed |
| Pack Quantity | 50 |
| UPC | 626463003015 |
