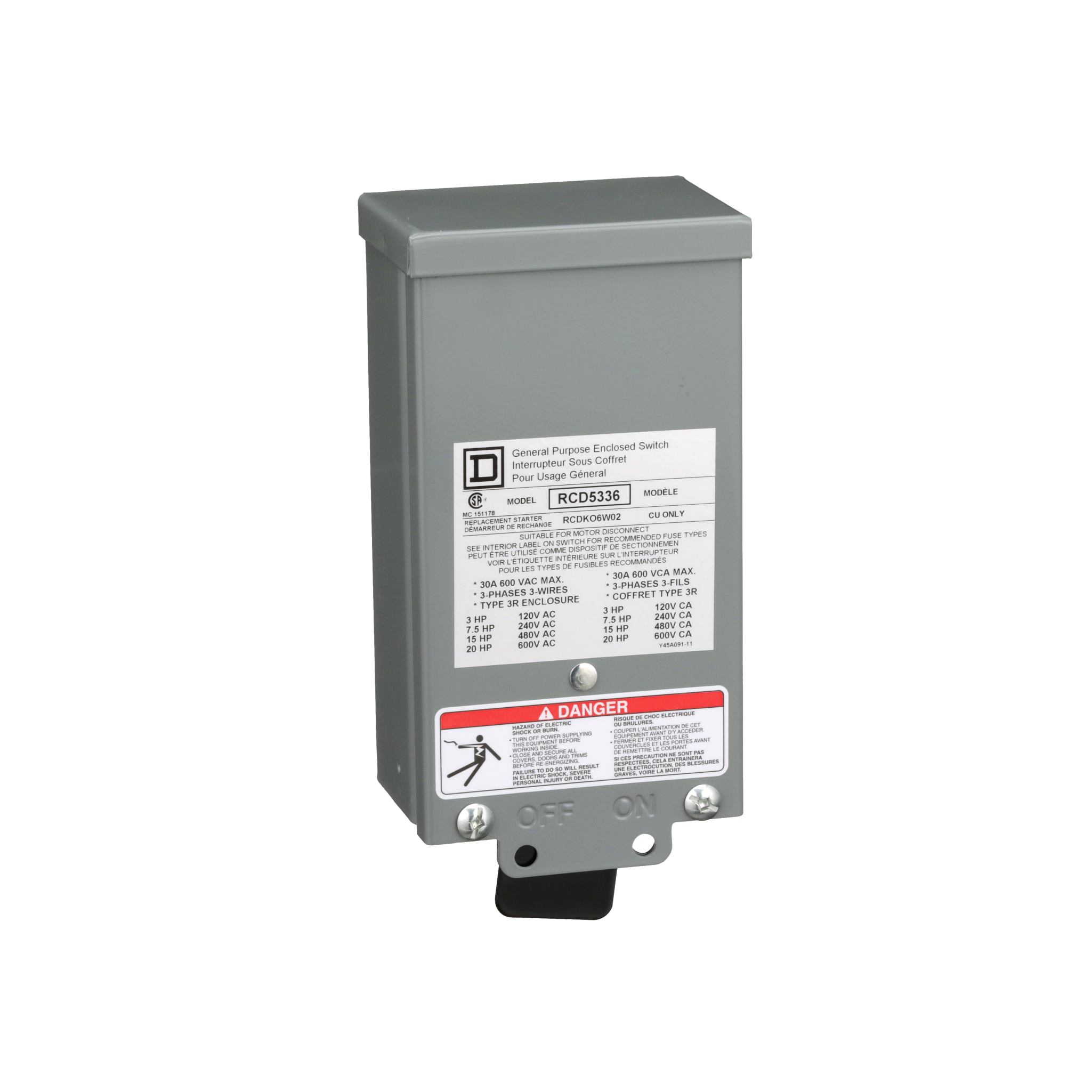

30A 3-Pole Weatherproof Non-fusible Disconnect, Model RCD5336
30A 3-Pole Weatherproof Non-fusible Disconnect, Model RCD5336
Pickup available at IES - Mississauga
Usually ready in 4 hours
The Schneider Electric RCD5336 is a heavy-duty, non-fusible safety switch built for outdoor and weatherproof installations where reliable motor and feeder isolation is essential. Rated at 30 A and 600 V AC with a NEMA 3R stainless steel enclosure, it stands up to rain, corrosion, and the demands of Canadian job sites year-round. The quick-make, quick-break operating mechanism ensures decisive switching action, while the dual cover interlock prevents the cover from opening when the switch is on — and prevents switching on when the cover is open — a critical safety feature for LOTO compliance. Ideal for air compressors, HVAC equipment, and EV charger disconnects, the RCD5336 is CSA and UL certified and qualifies as a Schneider Electric Green Premium product.
Specifications
| Product Type | Single Throw Safety Switch |
| Disconnect Type | Non-Fusible Disconnect |
| Current Rating | 30 A |
| Voltage | 600 V AC |
| Number of Poles | 3 |
| Duty Rating | Heavy Duty |
| Enclosure Rating | NEMA 3R Stainless Steel |
| Mounting Type | Surface |
| Dimensions (H x W x D) | 222 mm x 114 mm x 83 mm |
| Electrical Connection | Lugs |
| Wire Size Range | AWG 12–AWG 6 aluminum; AWG 14–AWG 6 copper |
| Tightening Torque | 25 lbf·in |
| Device Application | Air Compressor, HVAC |
| Product Certifications | CSA, UL |
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
